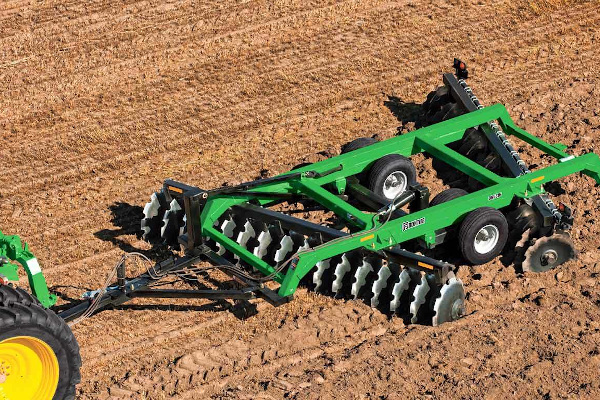

John Deere DH5310

Double tap to zoom



  • Adjustable disk blade scrapers increase productivity
  • Clevis hitch is durable for those tough working conditions
  • Disk blade sizes and weight per blade provide superior ground penetration
  • End washers and wrenches keep gang shaft end nut tight
  • Oil bath tapered roller bearings minimize maintenance
  • Rear hitch for attaching an additional implement
  • Transport locks secure disk wings
  • Two separate control arms create consistent performance



Width 3.4 m
11 ft
Ground clearance with base blades 22.9 cm
9 in.
Wheel hub bearings Dual Tapered Roller Bearings


Approximate working width 3 m
10 ft
Maximum penetration 22.9 cm
9 in.


Net 3866.9 kg
8525 lb
Weight per disk blade 203.7 kg
449 lb

Tractor requirements

Recommended PTO hp range 105-132 kW
141-176 hp
Recommended drawbar hp range 89.5-111.9 kW
120-150 hp


Type Single Offset Rigid
Duty Heavy
Tube size 15.2x15.2x0.95 cm
6 x 6 x 3/8 in.


Front hitch type Spade
Bolt-on rear hitch

Disk blades

Spacing 30.5 cm
12 in.
Quantity 21
Type Notched (front) Notched (rear)

Blade concavity Standard: high
Optional: low

Available blade sizes

Blade option one 711x9.5 mm
28x0.375 in.
Blade option two 762x9.5 mm
30x0.375 in.
Blade option three 813x9.5 mm
32x0.375 in.

Disk gangs

Front angle 2 Positions
Rear angle 2 Positions
Axle size 6.4 cm
2.5 in.
Axle material Round Heat Treated Alloy Steel Threaded on Both Ends
Bearing type Oil Bath Tapered Roller
Bearing wear plates Standard
Bearing standards Welded, Reinforced
Scrapers Adjustable

Lighting and safety

Markings SMV
Safety tow chain Yes
Lights Yes


Type Implement - Quantity of 4
Size 12.5L x 15 10 ply in.
Wheel hub type 8 Bolt

Set-up time

Labor hours 2-3 for two people


Time period 1 year
