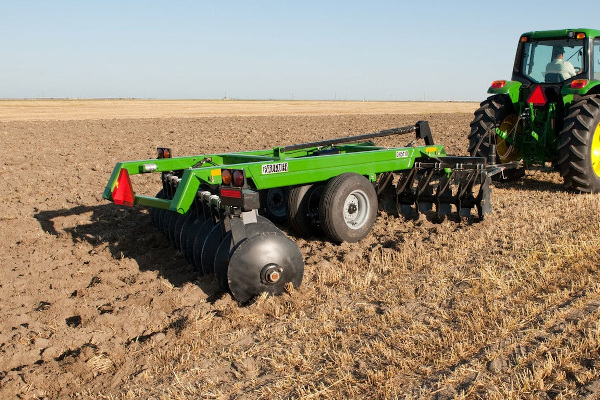

John Deere DH5222F

Double tap to zoom



Features

  • Disk blades (notched or smooth) available in two sizes
  • Transport locks secure disk wings
  • End washers and wrenches keep gang shaft end nut tight
  • Adjustable disk blade scrapers increase productivity
  • Clevis hitch is durable for those tough working conditions
  • Two separate control arms create consistent performance
  • Oil bath tapered roller bearings minimize maintenance
  • Rear hitch for attaching an additional implement

Specifications

Transport

Width 3.8 m
12.5 ft
Ground clearance with base blades 20.3 cm
8 in.
Wheel hub bearings Dual tapered roller bearings

Working

Approximate working width 7.3 m
24 ft
Maximum penetration 22.9 cm
9 in.

Weight

Net 6804 kg
15000 lb
Weight per disk blade 124 kg
273 lb

Tractor requirements

Recommended PTO hp range 175-228 kW
235-306 hp
Recommended drawbar hp range 149.1-193.9 kW
200-260 hp

Frame

Type Single offset folding
Duty Medium
Tube size 15.2x15.2x0.95 cm
6x6x0.375 in.

Hitch

Front hitch type Spade
Bolt-on rear hitch

Disk blades

Spacing 26.7 cm
10.5 in.
Quantity 57
Type Notched (front) Notched (rear)
Standard
Smooth (front) Smooth (rear)
Optional
Notched (front) Smooth (rear)
Optional
Blade concavity Standard: high
Optional: low

Available blade sizes

Blade option one 660x7.9 mm
26x0.312 in.
Blade option two 711x7.9 mm
28x0.312 in.

Disk gangs

Front angle 2 Positions
Rear angle 2 Positions
Axle size 4.1 cm
1.625 in.
or 5.4 cm
2.125 in.
Axle material Round heat treated alloy steel threaded on both ends
Bearing type Oil bath tapered roller
Bearing wear plates Standard
Bearing standards Welded, Reinforced
Scrapers Adjustable

Lighting and safety

Markings SMV
Safety tow chain Yes
Lights Yes

Tires

Type Implement - Quantity of 4
Size 12.5L x 15 10 ply in.
Wheel hub type 8 Bolt

Set-up time

Labor hours 4-6 for two people

Warranty

Time period 1 year
