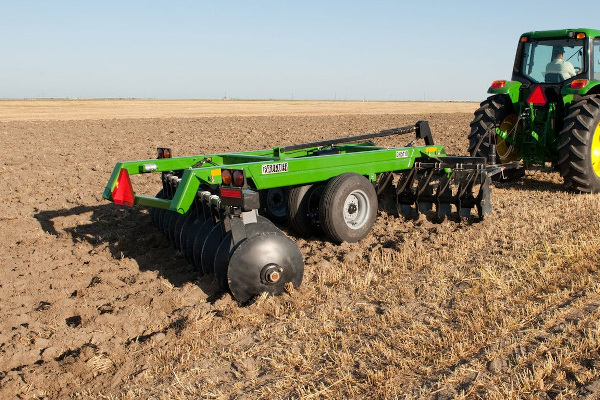

John Deere DH5212

Double tap to zoom



Features

  • Adjustable disk blade scrapers increase productivity
  • Clevis hitch is durable for those tough working conditions
  • Disk blades (notched or smooth) available in two sizes
  • End washers and wrenches keep gang shaft end nut tight
  • Oil bath tapered roller bearings minimize maintenance
  • Rear hitch for attaching an additional implement
  • Transport locks secure disk wings
  • Two separate control arms create consistent performance

Specifications

Transport

Width 6.1 m
20 ft
Ground clearance with base blades 20.3 cm
8 in.
Wheel hub bearings Dual tapered roller bearings

Working

Approximate working width 5.8 m
19 ft
Maximum penetration 22.9 cm
9 in.

Weight

Net 5012.2 kg
11050 lb
Weight per disk blade 116.6 kg
257 lb

Tractor requirements

Recommended PTO hp range 149-175 kW
200-235 hp
Recommended drawbar hp range 126.8-149.1 kW
170-200 hp

Frame

Type Single offset rigid
Duty Medium
Tube size 15.2x15.2x0.95 cm
6x6x0.375 in.

Hitch

Front hitch type Spade

Disk blades

Spacing 26.7 cm
10.5 in.
Quantity 45
Type Notched (front) Notched (rear)
Standard
Smooth (front) Smooth (rear)
Optional
Notched (front) Smooth (rear)
Optional
Blade concavity Standard: high
Optional: low

Available blade sizes

Blade option one 660x7.9 mm
26x0.312 in.
Blade option two 711x7.9 mm
28x0.312 in.

Disk gangs

Front angle 2 Positions
Rear angle 2 Positions
Axle size 4.1 cm
1.625 in.
or 5.4 cm
2.125 in.
Axle material Round heat treated alloy steel threaded on both ends
Bearing type Oil Bbth tapered roller
Bearing wear plates Standard
Bearing standards Welded, Reinforced
Scrapers Adjustable

Lighting and safety

Markings SMV
Safety tow chain Yes
Lights Yes

Tires

Type Implement - Quantity of 4
Size 12.5L x 15 10 ply in.
Wheel hub type 8 Bolt

Set-up time

Labor hours 2-3 for two people

Warranty

Time period 1 year
