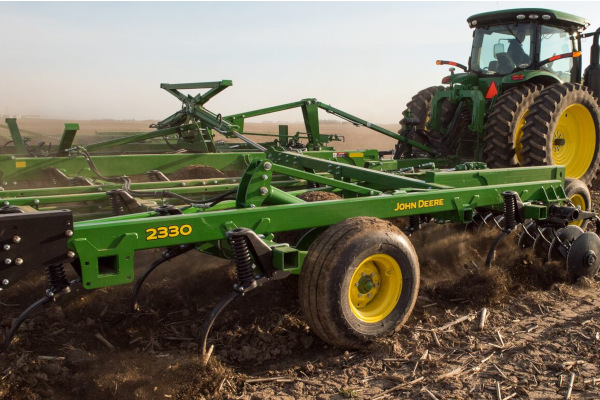

John Deere 2330 Mulch Finisher

Double tap to zoom



Features

  • Working widths from 21 ft, 9 in. to 56 ft, 3 in. (6.6 to 17.2 m)
  • Excellent residue handling capabilities
  • Lattice-style frame design
  • Hydraulically adjustable rolling baskets

Specifications

Key Specs

Working widths - 3-section Option 1: 6.63 m
21.75 ft
Option 2: 7.54 m
24.75 ft
Option 3: 8.46 m
27.75 ft
Option 4: 9.37 m
30.75 ft
Option 5: 10.29 m
33.75 ft
5-section Option 1: 11.81 m
38.75 ft
Option 2: 13.49 m
44.25 ft
Option 3: 15.32 m
50.25 ft
Option 4: 17.15 m
56.25 ft
Transport width (without rear harrow) - 3-section Option 1: 4.32 m
14.17 ft
Option 2: 4.27 m
14 ft
Option 3: 4.44 m
14.58 ft
Option 4: 4.5 m
14.75 ft
Option 5: 4.72 m
14.5 ft
5-section Option 1: 4.67 m
15.33 ft
Option 2: 4.72 m
15.5 ft
Option 3: 4.72 m
Option 4: 4.72 m
Transport height (without rear harrow) - 3-section Option 1: 3.12 m
10.25 ft
Option 2: 3.76 m
12.33 ft
Option 3: 4.04 m
13.25 ft
Option 4: 4.62 m
15.17 ft
Option 5: 5.08 m
16.67 ft
5-section Option 1: 3.58 m
11.75 ft
Option 2: 3.91 m
12.83 ft
Option 3: 4.5 m
14.75 ft
Option 4: 4.87 m
16 ft
Operating depth - Inches Maximum: 15.2 cm
6 in.
Miles per hour 9.7 to 16 km/h
6 to 10 mph
Horsepower per foot 24.5 to 34.2 kW/m
10 to 14 hp/ft
Standard spacings - Inches Split-the-middle - 22.9 cm
9 in.

Fold

Type Flex - 3-section or 5-section

Working widths

Rigid frame
2-section
3-section Option 1: 6.63 m
21.75 ft
Option 2: 7.54 m
24.75 ft
Option 3: 8.46 m
27.75 ft
Option 4: 9.37 m
30.75 ft
Option 5: 10.29 m
33.75 ft
5-section Option 1: 11.81 m
38.75 ft
Option 2: 13.49 m
44.25 ft
Option 3: 15.32 m
50.25 ft
Option 4: 17.15 m
56.25 ft

Transport width (without rear harrow)

Rigid frame
2-section
3-section Option 1: 4.32 m
14.17 ft
Option 2: 4.27 m
14 ft
Option 3: 4.44 m
14.58 ft
Option 4: 4.5 m
14.75 ft
Option 5: 4.72 m
14.5 ft, in.
5-section Option 1: 4.67 m
15.33 ft
Option 2: 4.72 m
15.5 ft
Option 3: 4.72 m
Option 4: 4.72 m

Transport height (without rear harrow)

2-section
3-section Option 1: 3.12 m
10.25 ft
Option 2: 3.76 m
12.33 ft
Option 3: 4.04 m
13.25 ft
Option 4: 4.62 m
15.17 ft
Option 5: 5.08 m
16.67 ft
5-section Option 1: 3.58 m
11.75 ft
Option 2: 3.91 m
12.83 ft
Option 3: 4.5 m
14.75 ft
Option 4: 4.87 m
16 ft

Operating depth

Inches Maximum: 15.2 cm
6 in.

Operating speed

Miles per hour 9.7 to 16 km/h
6 to 10 mph

Horsepower required

Horsepower per foot 24.5 to 34.2 kW/m
10 to 14 hp/ft

Depth control

Standard
Options

Hydraulics

Standard Three selective-control valves (SCVs) required, hydraulic transport lockup
Options

Electrical

Standard 9-pin connector for warning lights, 12-volt required for 5-section models
Options

Hitch

Type

Frame

Tubing Centerframe - 3 m
10 ft, in.
Rank tubes - 10.2x10.2 cm
4x4 in.
Mainframe fore-aft tubes - 7.6x20.3 cm
3x8 in.
Wing fore-aft tubes - 7.62x15.2 cm
3x6 in.
Number of ranks Five
Fore-and-aft 340.4 cm
134 in.
Underframe clearance 61 cm
24 in.

Standard spacings

Inches Split-the-middle - 22.9 cm
9 in.

Standard options

Option 1


Option 2


Option 3


Disk gangs

Depth adjustment Base equipment
TruSet in-cab depth/pressure control and single-point depth control
Maximum depth Even with sweep: 12.7 cm
5 in.
Vertical adjustment From even with the sweeps to 20.3 cm
8 in.
Gang angle, degrees 8 degree (angle)
Blade size 50.8x0.5 cm
20x0.197 in.
Blade spacing 18.42 cm
7.25 in.
Blade concavity Low
Type of scrapers Combination
Type of spool Steel fabricated
Gang shaft diameter 28.6 mm
1.125 in.
Bearings

Ground-engaging components

Options

Spray attachments

Options

Centerframe depth control wheels and tires

Type Centerframe tires on Walk-Over tandem wheels
Bias-ply tire options available
Options
3-section Option 1: (four) IF280/70 R15 134D tires
Option 2: (four) IF320/70 R15 144D tires
Option 3: (four) IF320/70 R15 144D tires
Option 4: (four) IF320/70 R15 144D tires
Option 5: (four) IF320/70 R15 144D tires
5-section Option 1: (four) VF285/70 R19.5 150D tires
Option 2: (four) VF285/70 R19.5 150D tires
Option 3: (four) 440/65 R18 159A8/B tires
Option 4: (four) 440/65 R18 159A8/B tires

Wing frame wheels and tires

Type
Options
3-section Option 1: (four) 11L-15 FI LR D tires
Option 2: (four) 12.5-L-15 FI LR D tires
Option 3: (four) 12.5-L-15 FI LR D tires
Option 4: (four) 12.5-L-15 FI LR D tires
Option 5: (four) 12.5-L-15 FI LR D tires
5-section Option 1: (eight) 12.5-L-15 FI LR D tires
Option 2: (eight) 12.5-L-15 FI LR D tires
Option 3: (eight) 12.5-L-15 FI LR D tires
Option 4: (eight) 12.5-L-15 FI LR D tires

Stabilizer wheels

Type Mechanical stabilizer wheels and tires available for only 5-section
Radial tire option available
Options Castering with 9.5L-15 tires (right- and left-hand sides)

Castering Wheels

Type Active-hydraulic castering wheels and tires available for 3- and 5-section
Radial tire option available
Options 9.5L-15 FI LR D tires (two)

Rear harrow

Spike tooth harrow option 1 Rank spacing
30.5 cm
12 in.
Spike spacing
26.67 cm
10.5 in.
Effective spacing
4.45 cm
1.75 in.
Spike dimension
1.9x1.9x30.5 cm
0.75x0.75x12 in.
Angle
15 to 45 degree (angle)

Adjustable 6-bar spike-tooth
Spike tooth harrow option 2


Spike tooth harrow option 3


Coil tine harrow option 1 Rank spacing
38.1 cm
15 in.
Tine spacing
31.75 cm
12.5 in.
Effective spacing
63.5 mm
2.5 in.
Tine dimensions
40.6 cm
16 in.
Angle
15 to 60 degree (angle)
Adjustments
Depth, pitch, and angle
Adjustable 5-bar coil-tine
Coil tine harrow option 2


Rolling basket harrow option 1 Spike/tine
30.5 cm
12 in.
Rank spacing
30.5 cm
12 in.
Spike/tine spacing
26.67 cm
10.5 in.
Effective spacing
8.89 cm
3.5 in.
Spike/tine dimensions
1.9x1.9x30.5 cm
0.75x0.75x12 in.
Basket diameter
35.56 cm
14 in.

Bearings
Dura-Flex, diameter of: 7.62 cm
3 in.
Self-aligning and greasable
Adjustments
Angle and aggressiveness
4-bar spike with single flat-bar rolling basket
Rolling basket harrow option 2 Spike/tine
30.5 cm
12 in.
Rank spacing
30.5 cm
12 in.
Spike/tine spacing
26.67 cm
10.5 in.
Effective spacing
8.89 cm
3.5 in.
Spike/tine dimensions
1.9x1.9x30.5 cm
0.75x0.75x12 in.
Basket diameter
35.6 cm
14 in.

Bearings
Dura-Flex, diameter of 7.62 cm
3 in.
Self-aligning, greasable
Adjustments
Angle and aggressiveness
4-bar spike with single, round-bar rolling basket
Rolling basket harrow option 3 Spike/tine
Tine: 40.6 cm
16 in.
Rank spacing
38.1 cm
15 in.
Spike/tine spacing
22.9 cm
9 in.
Effective spacing
7.62 cm
3 in.
Spike/tine dimensions
40.6 cm
16 in.
Basket diameter
35.6 cm
14 in.

Bearings
Dura-Flex, diameter: 7.62 cm
3 in.
Self-aligning, greasable
Adjustments
Angle and aggressiveness
3-bar coil with flat-bar rolling basket
Rolling basket harrow option 4 Spike/tine
Tine: 40.6 cm
16 in.
Rank spacing
38.1 cm
15 in.
Spike/tine spacing
22.9 cm
9 in.
Effective spacing
7.62 cm
3 in.
Spike/tine dimensions
40.6 cm
16 in.
Basket diameter
35.6 cm
14 in.

Bearings
Dura-Flex, diameter: 7.62 cm
3 in.
Self-aligning, greasable
Adjustments
Angle and aggressiveness
3-bar coil with round-bar rolling basket

Rear hitch

Tubing size
Telescoping Yes
Tongue weight rating 680 kg
1,500 lb
GVW
Wiring harness for transport lights Yes
Hydraulic hoses and couplers One set
