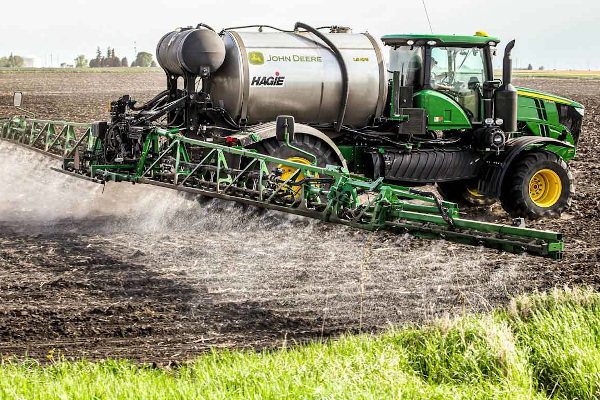

John Deere LS475 Liquid System for F4365 Nutrient Applicator

Double tap to zoom



Features

  • Accurately apply low-rate herbicide and high-rate fertilizer with a single machine
  • Cover more acres between refills with the large solution and rinse tanks
  • Cover 12 percent more acres per pass using the widest factory-installed boom
  • Fast, clean, automated tank filling enabled by technology
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Engine Peak rated power
272 kW
365 hp
Solution system - Capacity 7570 L
2000 gal.
Rinse tank capacity 757 L
200 gal.
Boom length options/Material 27.4 m
90 ft
Spray speed range 48 km/h
30 mph
Transport speed, maximum 75 km/h
46.6 mph
Suspension Four-wheel leaf spring and front axle dampers

Engine

Peak rated power 272 kW
365 hp
Power bulge 298 kW
400 hp
Emissions Final Tier 4 (FT4)
Number of cylinders Six
Displacement 9 L
549 cu in.
Transmission Infinitely Variable Transmission (IVT™)
Fuel tank capacity 586.7 L
155 gal.
Diesel exhaust fluid (DEF) tank capacity 29.5 L
7.8 gal.
AutoTrac speed, maximum 40 km/h
25 mph

Solution system

Capacity 7570 L
2000 gal.
Tank material Stainless steel
Rinse tank capacity 757 L
200 gal.
Solution pump flow 18.9 to 1589.9 L/min
5 to 420 gpm
Quick fill size 7.6 cm
3 in.
Automatic section control John Deere Section Control (optional)
Solution system control PowrSpray™ (automatic)
Fill location Side fill
Fill pump flow Up to 1135.6 L/min
300 gpm
Chemical eductor Stainless steel
Chemical eductor capacity (size) 32 L
8.5 gal.
Flow meter size Dual 5.1 cm
2 in.

Boom

Boom length options 27.4 m
90 ft
Automatic boom height Standard
Plumbing material Stainless steel
Boom Material Steel
Breakaway width 3.3 m
10.8 ft
Boom sections Seven sections
ExactApply™ Nozzle Spacings Five-position high-flow nozzle body: 76.2 cm
30 in.
Cam-lock: 152.4 cm
60 in.

Drivetrain

Drive Full-time two-wheel drive (2WD)
Spray speed range 48 km/h
30 mph
Transport speed, maximum 75 km/h
46.6 mph

Chassis

Type Dual c-channel frame
Dry compatible Yes
Suspension Four-wheel leaf spring and front axle dampers
Rear tires 1050/50R32 tires
Wheel base 430 cm
169.3 in.
Turning radius 10.5 m
34.5 ft
Parking brake IVT and two-wheel (rear) pneumatic parking brake
Primary brakes IVT and four-wheel pneumatic brakes
Ladder raise/lower Automatic

Options

Pressure washer Optional integrated system

Additional information

Date collected 13-Aug-2019
