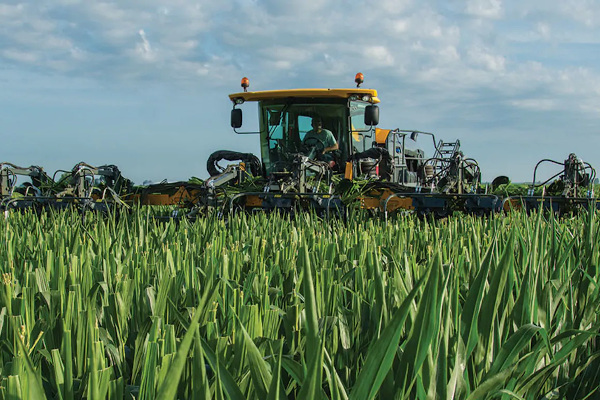

John Deere D400 Hagie™ Self-Propelled Detasseler

Features
- Hagie™ D400 Series engines
- D400 cab and controls overview
- Frame and axles
Specifications
Key Specs
Engine | Peak rated power 145 kW 195 hp |
Detasseling speed range | 0.8 to 30 km/h 0.5 to 19 mph |
Transport speed, maximum | 45 km/h 28 mph |
Suspension | Independent air-ride |
Crop clearance with standard tires | 182 cm 72 in. |
Engine
Peak rated power | 145 kW 195 hp |
Emissions | Final Tier 4 (FT4) |
Number of cylinders | Six |
Displacement | 6.7 L 409 cu in. |
Alternator | 200 amp |
Fuel tank capacity | 378 L 100 gal. |
Diesel exhaust fluid (DEF) tank capacity | 18.9 L 5 gal. |
Detasseling toolbar
Toolbar outriggers | 12-row 340.4 cm 134 in. 8-row 190.5 cm 75 in. |
Row configurations | 6, 8, 10, or 12 |
Cutting height | Minimum range: 74-238 cm in. cm 32-97 in. Maximum range: 33-259 cm 13-102 in. |
Pulling height | Minimum range: 82-246 cm 32-97 in. Maximum range: 102-266 cm 40-105 in. |
Detasseling control system |
Detasseling configuration options
Option 1 | Quad Puller - 8 Row 4 Lift |
Option 2 | Quad Puller - 10 Row 4 Lift |
Option 3 | Quad Puller - 12 Row 6 Lift |
Option 4 | Cutter - 8 Row 4 Lift |
Option 5 | Cutter - 10 Row 4 Lift |
Option 6 | Cutter - 12 Row 6 Lift |
Option 7 | Quad Puller - 4-1 or 4-2 configuration, 12 Row 6 Lift |
Option 8 | Cutter - 4-1 or 4-2 configuration, 12 Row 6 Lift |
Drivetrain
Type | Hydrostatic |
Drive | Full-time four-wheel drive (4WD) |
Shifting | Dual range speed control with incremental speed adjustment within each range |
Hydraulic reservoir capacity | 95 L 25 gal. |
Detasseling speed range | 0.8 to 30 km/h 0.5 to 19 mph |
Transport speed, maximum | 45 km/h 28 mph |
Chassis
Dry compatible | No |
Suspension | Independent air-ride |
Crop clearance with standard tires | 182 cm 72 in. |
Front tires | 300/85R42 or 320/80R42 |
Rear tires | 300/85R42 or 320/80R42 |
Flotation tires | 380/80R38 |
Hydraulic tread adjust | Optional |
Wheel tread spacing | 305 to 406 cm 120 to 160 in. |
Wheel base | 353 cm 139 in. |
Turning radius | 5.9 m 19.4 ft |
Parking brake | Integrated in final drives |
Primary brakes | Drive system dynamic braking |
Ladder raise/lower | Hydraulic |
Approximate dry weight | 9,480 kg 20,900 lb |
Additional information
Date collected | 1-Nov-2018 |
