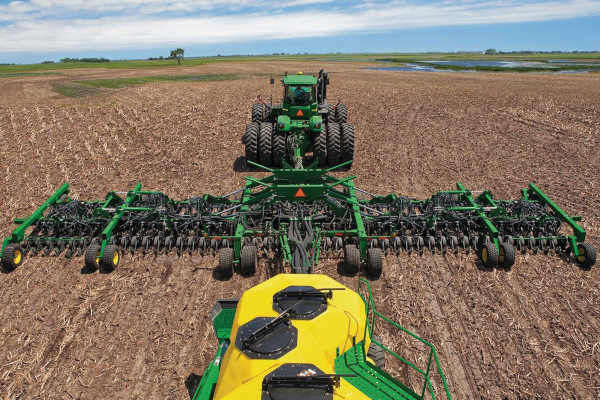

John Deere 1890 No-Till Air Drill

Double tap to zoom



Features

RelativeFlow™ Blockage sensing

With the RelativeFlow blockage system, operators can see the flow rate of both seed and fertilizer from inside the tractor cab. Sensors on delivery hoses monitor the relative rate of product flow. An easy-to-read display clearly visualizes relative product flow across the drill, from opener to opener. This exclusive technology gives a better view of what is happening across the tool in order to spot problems before blockage occurs.



RelativeFlow Blockage is available on the following models:

  • 1890 - 15.2-m (50-ft) and 18.3-m (60-ft)
  • P540 - 12.2-m (40-ft)
  • P556 - 17.1-m (56-ft)
  • P576 - 23.2-m (76-ft)
  • N560F - 18.3-m (60-ft)
  • N500C - all widths
  • N530F - 9.1-m (30-ft)
  • N540F - 12.2-m (40-ft)
  • N543F - 13.1-m (43-ft)



For complete details and information reference, the owner’s manual.

Blockage alarm delays can be set up by clicking on the advanced settings button from the blockage set-up screen.

  • A blockage delay is how long a blockage should occur before an alarm is sounded.
  • The blockage alarm reminder is how often the alarm should sound when a blockage occurs.
  • The meter on delay is the time from when the meter is turned on until the blockage sensor should start monitoring for blockage.
  • The meter off delay is the time from when the meter is turned off until the blockage sensor should start monitoring to verify no flow.



For more detailed information, see the owner’s manual.

Weight brackets allow for additional ballast

Additional weights may be required when seeding in dry, hard soils or in extremely high rates of residue. These weights may be removed when seeding in mellow or loose soils. A rear weight bracket and a weight bracket on the front corner of each wing are in base equipment on the 9.15-m, 11-m, 12.20-m, and 12.95-m (30-ft, 36-ft, 40-ft, and 42-ft) 1890s.



The brackets allow the addition of R127764 tractor suitcase weights to provide increased down pressure. A total of 14 tractor suitcase weights can be added at the rear of the mainframe. Six tractor suitcase weights can be added on each outer wing.



NOTE: Due to the heavier mainframe on the 15.25-m and 18.30-m (50-ft and 60-ft) 1890s, mainframe weights and weight brackets are not in base equipment or required. There is an option to order kit AA76487 from service parts for the wing weight brackets.



NOTE: Order code 6505 (open-center valve kit) is not available for the 15.25-m and 18.30-m (50-ft and 60-ft) models.



IMPORTANT: Wing weights and row markers are not compatible and should not be used together.

1890 mainframe and wings features

The 1890 features a three-section or five-section (15.25-m [50-ft] and 18.30-m [60-ft] models) drawn flexible frame with a convenient overcenter fold for transport or storage.



NOTE: Recommended tractor is 279.6 kW (375 hp) for the 15.25-m (50-ft) model and 335.5 kW (450 hp) for the 18.30-m (60-ft) model.



Productivity of the 15.25-m (50-ft) and 18.30-m (60-ft) widths compared to the 12.95-m (42.5-ft) model:

  •  The 15.25-m (50-ft) model is 17 percent more productive per pass
  •  The 18.30-m (60-ft) model is 42 percent more productive per pass

Features on all six models:

  • Two ranks of ProSeries™ Openers
  • 1.35 m (52.7 in.) between ranks of openers
  • 380-mm (15-in.) clearance between openers on 190-mm (7.5-in.) spacing machine
  • 508-mm (20-in.) clearance between openers on 254-mm (10-in.) spacing machine
  • 100-mm x 150-mm (4-in. x 6-in.) cross tubes and 50-mm x 150-mm (2-in. x 6-in.) end tubes
  • 560 mm (22 in.) of underframe clearance
  • Wings flex 20 degree up and 10 degree down
  • 108-degree overcenter fold



The two-rank frame design provides excellent residue flow and field performance.

Spoked gauge wheels

Growers have historically had to make some difficult planting and seeding decisions due to weather. Operators have been forced to plant in wet conditions that are far from optimal in order to plant within the optimum planting window. Those operators have experienced poor performance from wet soils working in between the depth gauge wheel and the opener disk and not having a way out. This creates the possibility of the depth gauge wheel or opener disk to seize up and drag through the soil.

The spoke gauge wheel is a solution for operators who plant in these conditions to allow the mud and debris that get caught behind the depth gauge wheel to easily flow through the wheel and continue providing superior depth performance.

The spoke gauge wheel is designed for optimum performance. Its features include serviceable, stamped inner and outer rims. The wheel also has cast spokes and bearing hubs for increased strength. This allows smaller spokes, creating larger open surface area for mud and debris to flow more easily than competitor’s wheels. Another improvement over the closed gauge wheel is a snap-ring bearing retention. Simply remove the snap ring, replace the bearing, and place the snap ring back.

Heavy trash fields from no-till environments have also tested very well with the new spoke gauge wheel. Some growers provided feedback of crop residue getting inside and jamming up the gauge wheel and opener. This spoke gauge wheel has shown exceptional performance within these areas as well. These wheels are compatible with both 90 Series openers on seeding tools and planter row-units.



Below is a chart that demonstrates a competitive advantage over MudSmith™ wheels for mud and residue flow:



  MudSmith John Deere Percent improvement
Open area 329 cm2 (51 cu in.) 471 cm2 (73 cu in.) 43 percent
Rim height 1.9 cm (3/4 in.) 1.4 cm (9/16 in.) 25 percent
Spoke width 3.5 cm (1-3/8 in.) 1.9 cm (3/4 in.) 45 percent



The wheel is serviceable along with other parts.

  • AA86055 – complete wheel assembly
  • A101570 – inner wheel rim half
  • A101571 – outer wheel rim half

Not compatible in dual gauge wheel applications.

MudSmith is a trademark of MudSmith, LLC.

Moving from the 1910 Air Cart to the C850 Air Cart

For producers using a model year 2018 and newer 15.2-m (50-ft) or an 18.3-m (60-ft) 1890 or N560F Air Drill paired with a 1910 Air Cart that may want to upgrade to a C850 Air Cart, here is the complete parts list needed to move from the 1910 to the C850.

1890 rear hitch for wagon-style hitch (C850):

NOTE: In both scenarios when attaching a C850 to a tool, Configurator requires option code 3205, which is a Category 5 hitch at the front of the tool.

15.2-m (50-ft)/18.3-m (60-ft) 1890 or N560F – Rear hitch
Quantity Part number Description
1 11M7054   Cotter pin
12 14M7589   Self-locking hex flange nut
12 19M9124   Hex head screw
1 24M7240   Metallic, round-hole washer
8 34M7055   Spring pin
1 A102680   Plate spacer for Category 4 hitch
4 A41517   Pin fastener
1 AA53874   Drawbar assembly pin
1 AA88311   Left-hand rear hitch support
1 AA88312   Right-hand rear hitch support
2 AA88314   Rear hitch link support
1 AA88326   Rear hitch support
2 JD5921   Reflective yellow label
4 N137598   Heavy-duty spring pin
2 N280120   Pin fastener
1 R106661   Special cap screw
1 R110306   Drawbar strap
1 R110309   Plate
1 R156614   Special cap screw
1 R26511   Special headed pin



15.2-m (50-ft)/18.3-m (60-ft) 1890 or N560F – Bulk hose, brackets, and hardware
Quantity Part number Description
4 14M7296   Hex flange nut
2 19M7785   Flanged screw
4 19M7835   Flanged screw
2 A106629   Primary hoses retention link chain
2 AA90048   Strap
1 AA92182   Bracket

1910 field hitch

The field hitch option is ordered with the cart. If this is ordered appropriately, no additional parts are needed.

Option code 6615 – hitch for tow-behind cart

Order AA79503 hitch kit, in addition to the parts list below:

6615 - Platform support assembly
Quantity Part number Description
4 14M7291   Hex flange nut
8 14M7299   Hex flange nut
8 19M7790   Screw
2 19M7793   Flanged screw
2 19M7794   Flanged screw
2 A63426   Channel - rear stair support for 12,333.7-L (350-bu) tow-behind (TBH)
2 A63726   Strap - stair support link for 12,333.7-L (350-bu) TBH
1 AA48188   Bracket - stair support for 12,333.7-L (350-bu) TBH



Option code 6620 - high-capacity hitch for tow-behind cart
6620 - Dual fan rear hitch
Quantity Part number Description
26 14M7299   Hex flange nut
17 14M7300   Nut
4 19M7789   Screw
4 19M7790   Screw
10 19M7791   Flanged screw
4 19M7813   Flanged screw
4 19M7814   Screw
4 19M7894   Screw
10 19M7895   Flanged screw
1 19M8100   Hex head screw
2 19M8180   Screw
1 24M7242   Washer
1 A107730   Fan-mounting bracket
1 A75174   Bowtie clip
2 A99215   Plate (fan bottom mount tow-behind [TBH])
1 AA48323   Rear hitch stair support bracket
1 AA83311   Premium bolt-on hitch
1 AA90137   High-capacity hitch
2 AA90143   Rear hitch support
1 AA91220   Dual fan mount support
1 PM01512   Pin fastener
2 14M7396   Self-locking hex flange nut
2 19M7867   Flanged screw
1 A90559   Plate (seven-pin TBH flow through)
1 AA76512   Wiring harness
2 H224073 Heavy-duty tie band



Pre-delivery instructions (PDI) to reference:

  • 1910 - PDIA111943
  • 1890 - PDIA111136

ProSeries™ Openers provide excellent penetration

ProSeries Openers are in base equipment on all 1890 and N500F Separate Fertilizer Placement (SFP), 1990 Central Commodity System (CCS™), and 1590 Air Drills.



On the 1890 models, the single-disk openers are on 190-mm (7.5-in.) or 254-mm (10-in.) row spacing. On 15.25-m (50-ft) and 18.3-m (60-ft) 1890 models, the 190-mm/380-mm (7.5-in./15-in.) or 254-mm/508-mm (10-in./20-in.) dual-row spacing feature is in base equipment. The single-disk openers provide consistent and accurate seed placement.



The ProSeries Openers are gang mounted and are hydraulically raised and lowered. The hydraulic downforce system also offers a wide range of downforce settings for the openers.

The active hydraulics:

  • Work in conjunction with the opener spring
  • Provide an adjustable range of 75 kg (165 lb) to 180 kg (400 lb) of down pressure per opener
    • Benefit: penetrate hard soils and heavy residue
  • The cylinders allow the openers to travel up or down an additional 405 mm (16 in.) with active hydraulic down pressure to follow the ground
  • Provide the openers additional pressure when needed or allow the openers to go into relief if the pressure becomes too high

The down pressure:

  • Is easily adjusted with the pressure valve located on the front of the mainframe
  • Provides the operator the ability to quickly adjust, or dial in, the down pressure as operating conditions change

NOTE: For additional ballast in hard-to-penetrate conditions, tractor suitcase weights may also be added to the mainframe and wings to obtain maximum down pressure per opener.



The ProSeries Openers:

  • Work not only in no-till conditions, but also in minimum or reduced-till conditions
  • Provide 51 mm (2 in.) of free travel in the opener before spring down pressure takes over
    • Benefit: allows the opener to move over uneven ground conditions and minimize the chance of the gauge wheels bulldozing soil in soft or mellow conditions
    • The opener spring travels a maximum of 203-mm (8-in.) up or 150-mm (6-in.) down before the hydraulics react to uneven seedbeds

ProSeries™ Opener performance upgrade kit

Growers that may be interested in upgrading their current 90 Series Openers to the ProSeries Openers can do this by ordering a ProSeries performance upgrade kit.



Two kit offerings are available for seed openers, a two row (AA98693) and eight row (AA97392) kit. The breakdowns are as follows:

AA98693
A105410 Deflector, seed firmer tab 2 pc
A107506 Washer, special 8 pc
A109343 Seed boot, left hand 1 pc
A109344 Seed boot, right hand 1 pc
A110307 Closing arm spring, left hand 1 pc
A110308 Closing arm spring, right hand 1 pc
A31869 Locknut 2 pc
AA88056 Press wheel assembly 2 pc
E55662 Nut, 3/8 8 pc
N280653 Washer 2 pc
N283804 Opener disk 2 pc
N283976 Nut, U-nut 2 pc
N283308 Screw, flange 2 pc
03H2070 Bolt, round head 8 pc
19M7720 Screw, hex 2 pc
A105392 Spiked seed closing wheel 2 pc
A97699 Instructions, dealer download 1 pc
AA97392
A105410 Deflector, seed firmer tab 8 pc
A107506 Washer, special 32 pc
A109343 Seed boot, left hand 4 pc
A109344 Seed boot, right hand 4 pc
A110307 Closing arm spring, left hand 4 pc
A110308 Closing arm spring, right hand 4 pc
A31869 Locknut 8 pc
AA88056 Press wheel assembly 8 pc
E55662 Nut, 3/8 32 pc
N280653 Washer 8 pc
N283804 Opener disk 8 pc
N283976 Nut, U-nut 8 pc
N283308 Screw, flange 8 pc
03H2070 Bolt, round head 32 pc
19M7720 Screw, hex 8 pc
A105392 Spiked seed closing wheel 8 pc
A117632 Instructions, ProSeries 1 pc

ProSeries Retrofit Calculator

NOTE: Kits are subject to change.

Specifications

Key Specs

Working widths 9.14 m
30 ft
Spacing 19.05, 25.4 cm
7.5, 10 in.
Number of ranks two
Openers Style
Single disk-beveled edge
Rank lock-up
Yes
Diameter
45.72 cm
18 in.
Down pressure
Hydraulic

Sizes

Working widths 9.14 m
30 ft
Spacing 19.05, 25.4 cm
7.5, 10 in.
Number of ranks Two
Number of sections Three

Dimensions

Transport height 3.63 m
11.92 ft
Transport width 4.37 m
14.33 ft
Road clearance 21.6 cm
8.5 in.
Overall length 7.49 m
24.58 ft, in.
Weight before ballast 7711, 6759 kg
17000, 14900 lb
Available ballast 1386 (28+14 x 100) kg
2800 (28+14 x 100) lb
Frame Cross members
102 x 152 mm
4 x 6 in.
End tubes
51 x 152 mm
2 x 6 in.
Hitch
76 x 152 mm
3 x 6 in.
Clearance from rank to rank 133.99 cm
52.75 in.

Tires

Mainfarme standard (8) 11L-15, 10PR
Wings standard (4) 11L-15, 8PR

Openers

Style Single disk-beveled edge
Rank lock-up Yes
Disk Diameter
45.72 cm
18 in.
Angle
7 degree (angle)
Down pressure Style
Active hydraulic-patented

Hydraulic
Depth control Description
Gauge wheel beside disk
Gauge wheel size
11.43 x 40.64 or 7.62 x 40.64 cm
4.5 x 16 or 3 x 16 in.
Range
1.27 to 8.89 cm
0.5 to 3.5 in.
Increments
0.64 cm
0.25 in.
In-Furrow press wheel Material
Rubber on plastic wheel
Packing force
5 to 45 lb
2.3 to 21 kg
Standard
Furrow closing Description
Trailing wheel on 20-degree vertical angle, 7-degree horizontal angle
Size
2.54 x 30.48 cm
1 x 12 in.
Material
Cast iron
Down force
26 to 43 lb
12 to 20 kg
Standard
