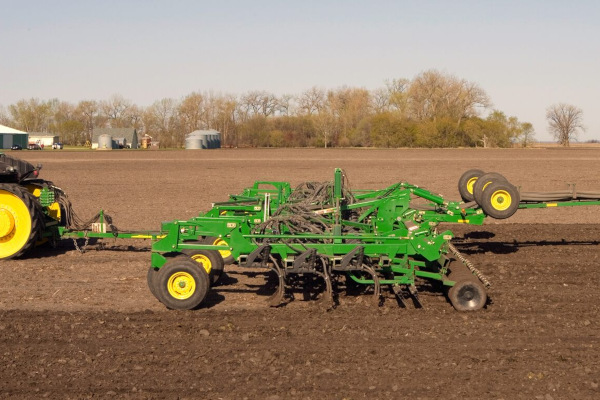

John Deere 1830 Air Hoe Drill

Double tap to zoom



Features

  • Integration advantages of Deere tractor, cart, tool and technology
  • Flexible frame allows for consistent seed depth
  • Control the depth of seeding with TouchSet™
  • Ground-engaging openers provide benefits of low-disturbance seeding
  • High-productivity sweeps easily moves through tough residue giving growers confidence
  • Air hose routings increase hose life and reduce downtime
  • Reduce transport height

Specifications

Key Specs

Spacing and width #1 Spacing - 19.05 cm
7.5 in.
Width - 12.5 m
41 ft
Spacing and width #2 Spacing - 19.05 cm
7.5 in.
Width - 15.2 m
50 ft
Spacing and width #3 Spacing -19.05 cm
7.5 in.
Width - 18.6 m
61 ft
Spacing and width #4 Spacing - 25.4 cm
10 in.
Width - 12.5 m
41 ft
Spacing and width #5 Spacing - 25.4 cm
10 in.
Width - 15.2 m
50 ft
Spacing and width #6 Spacing - 25.4 cm
10 in.
Width - 18.6 m
61 ft
Spacing and width #7 Spacing - 31.75 cm
12.5 in.
Width - 12.5 m
41 ft
Spacing and width #8 Spacing - 31.75 cm
12.5 in.
Width - 15.2 m
50 ft
Spacing and width #9 Spacing - 31.75 cm
12.5 in.
Width - 18.6 m
61 ft

Dimensions

Road clearance with sweep 40.6 cm
16 in.
Transport width 3-section model: 6.2, 12.5 m
20.3, 41 ft
5-section model: 6.2, 15.4, 18.1 m
20.3, 50.5, 59.4 ft
Nominal mainframe width (between wing-fold pivots) 4.19 m
13.75 ft
Number of seed openers Primary air package configurations for the 1830
Spacing and width #1 Working width
12.4 m
40.625 ft
Transport height with harrow
5.86 m
19.22 ft
Transport height without harrow
5.57 m
18.28 ft
Minimum temporary height reduction with sweeps
457 mm
18 in.
Weight
With typical options: 11,250 kg
24,800 lb
Spacing - 19.05 cm
7.5 in.
Width - 12.5 m
41 ft
Spacing and width #2 Working width
15.4 m
50.625 ft
Transport height with harrow
4.91 m
16.11 ft
Transport height without harrow
4.74 m
15.54 ft
Minimum temporary height reduction with sweeps
50.8 cm
20 in.
Nominal inner wing width (between wing-fold pivots)
3.08 m
10.1 ft
Weight
With typical options: 14,900 kg
32,850 lb
Spacing - 19.05 cm
7.5 in.
Width - 15.2 m
50 ft
Spacing and width #3 Working width
18.1 m
59.375 ft
Transport height with harrow
5.53 m
18.13 ft
Transport height without harrow
5.49 m
18 ft
Minimum temporary height reduction with sweeps
508 mm
20 in.
Nominal inner wing width (between wing-fold pivots)
3.82 m
12.55 ft
Weight
With typical options: 16,330 kg
36,000 lb
Spacing -19.05 cm
7.5 in.
Width - 18.6 m
61 ft
Spacing and width #4 Working width
12.2 m
40 ft
Transport height with harrow
5.86 m
19.22 ft
Transport height without harrow
5.57 m
18.28 ft
Minimum temporary height reduction with sweeps
457 mm
18 in.
Weight
With typical options: 10,330 kg
22,775 lb
Spacing - 25.4 cm
10 in.
Width - 12.5 m
41 ft
Spacing and width #5 Working width
15.2 m
50 ft
Transport height with harrow
4.91 m
16.11 ft
Transport height without harrow
4.74 m
15.54 ft
Minimum temporary height reduction with sweeps
508 mm
20 in.
Nominal inner wing width (between wing-fold pivots)
3.08 m
10.1 ft
Weight
With typical options: 13,540 kg
29,850 lb
Spacing - 25.4 cm
10 in.
Width - 15.2 m
50 ft
Spacing and width #6 Working width
18.8 m
61.67 ft
Transport height with harrow
5.98 m
19.62 ft
Transport height without harrow
5.49 m
18 ft
Minimum temporary height reduction with sweeps
483 mm
19 in.
Nominal inner wing width (between wing-fold pivots)
4.14 m
13.59 ft
Weight
With typical options: 15,343 kg
33,825 lb
Spacing - 25.4 cm
10 in.
Width - 18.6 m
61 ft
Spacing and width #7 Working width
12.7 m
41.67 ft
Transport height with harrow
5.9 m
19.35 ft
Transport height without harrow
5.72 m
18.76 ft
Minimum temporary height reduction with sweeps
457 mm
18 in.
Weight
With typical options: 9,639 kg
21,250 lb
Spacing - 31.75 cm
12.5 in.
Width - 12.5 m
41 ft
Spacing and width #8 Working width
15.2 m
50 ft
Transport height with harrow
4.91 m
16.11 ft
Transport height without harrow
4.83 m
15.85 ft
Minimum temporary height reduction with sweeps
508 mm
20 in.
Nominal inner wing width (between wing-fold pivots)
3.08 m
10.1 ft
Weight
With typical options: 12,451 kg
27,450 lb
Spacing - 31.75 cm
12.5 in.
Width - 15.2 m
50 ft
Spacing and width #9 Working width
19 m
62.5 ft
Transport height with harrow
6.19 m
20.31 ft
Transport height without harrow
6.03 m
19.79 ft
Minimum temporary height reduction with sweeps
483 mm
19 in.
Nominal inner wing width (between wing-fold pivots)
4.14 m
13.59 ft
Weight
With typical options: 14,322 kg
31,575 lb
Spacing - 31.75 cm
12.5 in.
Width - 18.6 m
61 ft

Seed Opener

Type #1 Spacing
19.05, 25.40, or 31.75 cm
7.5, 10, or 12.5 in.
Dimensions
31.75 x 50.8 x 711 mm
1.25 x 2 x 28 in.
Trip force
51 degree: 2.45 kN
550 lb-ft
Tru-Position™ - 51 degree (angle)
Underframe clearance 71.12 cm
28 in.

Mainframe

Centerframe width 4.19 m
13.75 ft
Cross members 10.16 x 10.16 cm
4 x 4 in.
End tubes 102 x 102 x 9.5 mm
4 x 4 x 3/8 in.
Hitch Pin: 50.8 mm
2 in.
Hitch category Category 4
Seeding tool depth control Adjustable mechanical stop
Mainframe and wing flexibility Diagonal flex

Fore-Aft Dimensions

Length Hitch pin to rear of transport wheels
9.95 m
32.67 ft
Lateral frame clearance, opener to opener
76.2 cm
30 in.
Fore-aft frame clearance between ranks
73.66 cm
29 in.
Front of front cross member to front of rear cross member (4 ranks)
2.21 m
7.25 ft
9.95 m
32.67 ft

Harrow

Type Optional two-bar tine-tooth

Press Wheels

Size Steel
On 7.5-, 10- or 12.5-in. spacing: 7.6 x 53.3 cm (15.7 kg)
3 x 21 in. (34.7 lb)
On 10- or 12.5-in. spacing: 10.2 x 55.9 cm (16.3 kg)
4 x 22 in. (35.9 lb)
Semi-pneumatic
On 7.5-, 10- or 12.5-in. spacing: 7.6 x 53.3 cm (16.9 kg)
3 x 21 in. (37.2 lb)
On 10- or 12.5-in. spacing: 10.2 x 53.3, 14 x 53.3 cm (19, 23.4 kg)
4 x 21, 5.5 x 21 in. (41.8, 51.6 lb)
Split
36.8 kg
81.2 lb

Tires

Tire specifications Tire link

Tractor Hydraulic Requirements

Minimum SCVs Two
Tractor hydraulic circuit requirements One selective control for frame lift; one selective control for wing fold and transport wheels
Tractor hydraulic pressure requirement 41-ft: 138 bar/min
2000 psi/min
50-ft: 151.7 bar/min
2200 psi/min
61-ft: 172.4 bar/min
2500 psi/min

Tractor Horsepower Requirements

34-ft.
41-ft. 205 kW
275 hp
50-ft. 261 kW
350 hp
56-ft.
57-ft.
61-ft. 317 kW
425 hp
76-ft.

Freight

F.O.B. Valley City, North Dakota

Tractor Compatibility

On-line compatibility guide
