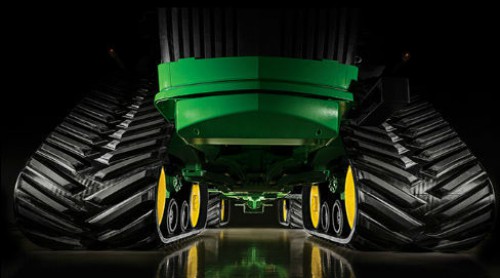

John Deere 9570RX

John Deere 9570RX for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Tracked Scraper Special Tractors



  • Cummins QSX15 Engine
  • e18™ PowerShift Transmission
  • New Cab Suspension
  • CommandView™ III cab
Manufacturer John Deere
Model 9570 RX Tier 4 Final
Specifications
Engine Manufacturer  Cummins
Engine Model  QSX15
Emission Rating  Tier 4
Number Of Cylinders  6
Cylinder Liner Type  Wet Sleeve
Bore, mm (inches)  137 (5.39)
Stroke, mm (inches)  169 (6.65)
Displacement, ltr (Inches³)  14.9 (912)
Engine Output, kW (hp)  419 (570)
Transmission  PowerShift
Number Of Speeds - Forward  18
Number Of Speeds - Reverse  6
Differential Lock  Yes
Steering  Articulated
Service Brake Type  Wet disc
Service Brake Actuation  Hydraulic
Service Brake Location  Front & Rear
Overall Length, mm (ft/in)  7632 (25 ft )
Height Over Cab, mm (ft/in)  3720 (12 ft 2 in)
Overall Width, mm (ft/in)  2980 (9 ft 9 in)
Wheelbase, mm (ft/in)  4154 (13 ft 8 in)
Ground Clearance, mm (inches)  494 (19)
Steering Articulation Angle, ± °  24
Fuel Tank, ltr (gallons (US))  1514 (400)
Travel Speed, kph (mph)  40 (25)
Oscillation Angle, ± °  10
Pump Flow, lt/min (gallons (US) / min)  435 (115)
System Pressure, bar (PSI)  200 (2900)
Number Of Control Valves  4
Additional Optional Control Valves  2
Flow Available To One Control Valve, lt/min (gallons (US) / min)  159 (42)
Open Or Closed Centre  Closed Centre
Operating Weight, kg (lbs)  26761 (59000)
