John Deere 1510DC

John Deere 1510DC for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

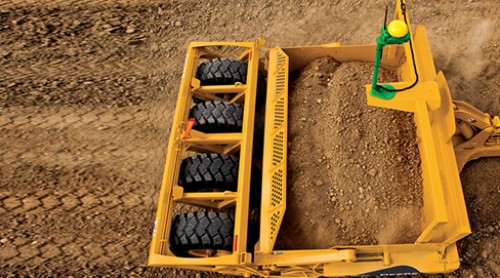

Carry-All Scrapers



  • Top-loading scrapers increase productivity for all applications.
  • Maximize productivity, minimize costs with 1/2 the cost, 1/3 the investment.
  • AutoLoad™ for smooth loading and efficient operation.
   Model 1510DC
Specifications
Struck capacity cubic yards 11
Heaped capacity cubic yards 15
Overall dimensions ---
Length, ft, in. (mm) 24ft. 10in. (7569 mm)
Width, ft, in. (mm) 11ft. 10in. (3607 mm)
Height, ft, in. (mm) 7ft. 6in. (2286 mm)
Bucket dimensions ---
Length, ft, in. (mm) 7ft. 8in. (2337 mm)
Width, ft, in. (mm) 10ft. 0in. (3048 mm)
Height, ft, in. (mm) 3ft. 10in. (1168 mm)
Approximate shipping weight, lb (kg) 16,800
Tongue 28%
Wheels 72%
Number of tires per scraper 4
Tire sizes ---
Standard 17.5 X 25
Option 1 20.5 X 25
Option 2 NA
Minimum 200
Maximum 575+
2 rows of blade bolts Standard
6-in. bolt-hole spacing Standard
Straight blade configuration Standard, 3 piece blades
Drop center configuration Optional
Teeth configuration Optional
Adjustable router bits Standard
Size of lines and hoses 3/4in.
Tandem lines Standard
Minimum flow required, gpm 25 gpm
Minimum pressure required, psi 2500 psi
GPS/Laser adaptable Yes
Direct loading Yes
Top loading Yes
Push loading Not Approved
Autoload Yes
Hitch type Yoke
Special tractor drawbar required Yes
Six months Standard
Extended warranty (2-3 years) Optional
Yoke-type drawbars Optional
Quick-attach drawbars Optional
Drawbar hitch adapters Optional
Scraper-to-scraper quick-attach Factory Installed Only
Bolt-on rear bumper Optional
Laser receiver bracket Optional
High-speed leveling skid pads NA
