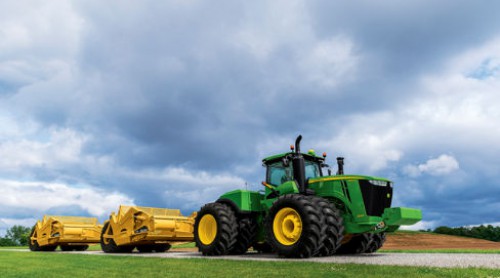

John Deere 9620R

John Deere 9620R for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

4WD Scraper Special Tractors



  • Cummins QSX15
  • New and improved e18™ PowerShift Transmission
  • New HydraCushion™ Suspension
  • New CommandView™ III cab
Manufacturer John Deere
Model 9620 R Scraper Special Tier 4 Final
DRIVELINE
Engine Manufacturer  Cummins
Engine Model  QSX15
Emission Rating  Tier 4
Number Of Cylinders  6
Cylinder Liner Type  Wet Sleeve
Bore, mm (inches)  14.9 (912)
Stroke, mm (inches)  169 (6.65)
Displacement, ltr (Inches³)  14.9 (912)
Engine Output, kW (hp)  456 (620)
Transmission  PowerShift
Number Of Speeds - Forward  18
Number Of Speeds - Reverse  6
Differential Lock  Yes
Steering  Articulated
Planetaries  Inboard
Front Axle Suspension  HydraCushion Suspension
Service Brake Type  Wet disc
Service Brake Actuation  Hydraulic
Service Brake Location  Front & Rear
DIMENSIONS
Overall Length, mm (ft/in)  7432 (24 ft 4 in)
Height Over Cab, mm (ft/in)  3735 (12 ft 3 in)
Overall Width, mm (ft/in)  4420 (14 ft 6 in)
Wheelbase, mm (ft/in)  3912 (12 ft 10 in)
Ground Clearance, mm (inches)  383 (15)
CAPACITIES
Fuel Tank, ltr (gallons (US))  1514 (400)
PERFORMANCE
Pump Flow, lt/min (gallons (US) / min)  220 (58)
Optional High Flow, lt/min (gallons (US) / min)  435 (115)
System Pressure, bar (PSI)  200 (2900)
Number Of Control Valves  4
Additional Optional Control Valves  2
Flow Available To One Control Valve, lt/min (gallons (US) / min)  132 (35)
Open Or Closed Centre  Closed Centre
WEIGHTS
Operating Weight, kg (lbs)  18970 (41820)
