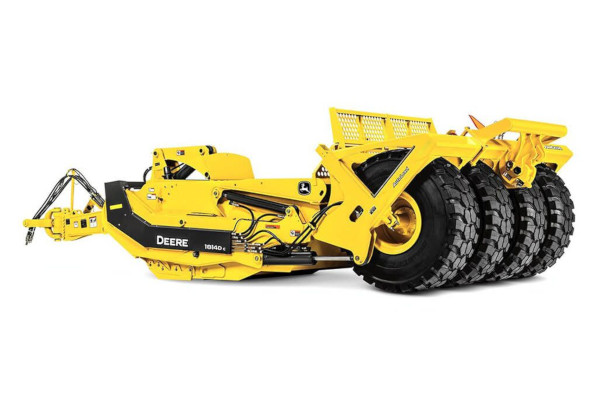

John Deere 1814DC

Double tap to zoom



Features

  • AutoLoad™ for smooth loading and efficient operation
  • Automate water management with iGrade™
  • Versatile and productive in a number of applications
  • Half the labor, one-third the investment - Save up to 50 cents per cu yd
  • Top-loading John Deere scrapers increase productivity for all applications

Specifications

Model 1814DC
Specifications
Struck capacity cubic yards 14
Heaped capacity cubic yards 18
Overall dimensions ---
Length, ft, in. (mm) 25ft. 2in. (7671 mm)---
Width, ft, in. (mm) 15ft. 10in. (4826 mm)
Height, ft, in. (mm) 7ft. 6in. (2286 mm)
Bucket dimensions ---
Length, ft, in. (mm) 6ft. 10in. (2083 mm)
Width, ft, in. (mm) 14ft. 0in. (4267 mm)
Height, ft, in. (mm) 3ft. 10in. (1168 mm)
Approximate shipping weight, lb (kg) 21,000
Tongue 26%
Wheels 74%
Number of tires per scraper 6
Tire sizes ---
Standard 17.5 X 25
Option 1 20.5 X 25
Option 2 NA
Minimum 360
Maximum 575+
2 rows of blade bolts Standard
6-in. bolt-hole spacing Standard
Straight blade configuration Standard, 3 piece blades
Drop center configuration Optional
Teeth configuration Optional
Adjustable router bits Standard
Size of lines and hoses 3/4in.
Tandem lines Standard
Minimum flow required, gpm 25 gpm
Minimum pressure required, psi 2500 psi
GPS/Laser adaptable Yes
Direct loading Yes
Top loading Yes
Push loading Not Approved
Autoload Yes
Hitch type Yoke
Special tractor drawbar required Yes
Six months Standard
Extended warranty (2-3 years) Optional
Yoke-type drawbars Optional
Quick-attach drawbars Optional
Drawbar hitch adapters Optional
Scraper-to-scraper quick-attach Factory Installed Only
Bolt-on rear bumper Optional
Laser receiver bracket Optional
High-speed leveling skid pads NA
