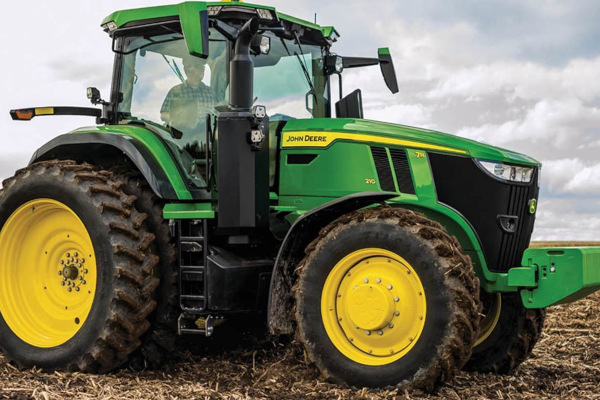

John Deere 7R 210

Double tap to zoom



Features

  • Experience the ultimate in comfort with the Ultimate Comfort and Convenience package
  • Get 360 degrees of coverage for maximum productivity with visibility packages
  • ActiveSeat™ II seat provides a smoother ride
  • Efficiency and comfort in the palm of your hand using CommandPRO™ control
  • Increase productivity with Triple-Link Suspension Plus (TLS™ Plus)
  • John Deere Connected Support™ transforms the industry
  • Gain the advantages of a JDLink™ connected machine
  • Take advantage of the Generation 4 CommandCenter™ display, designed for efficiency
  • Maximize versatility with front hitch options that fit a variety of applications
  • Simple turnkey experience with the StarFire™ 6000 Integrated Receiver

Specifications

Key Specs

Engine description John Deere PowerTech™ PVS (B20 Diesel Compatible) 6.8L
Engine displacement 6.8 L
415 cu in.
Rated engine power ECE-R120: 154 kW
210 hp
Maximum engine power ECE-R120: 170 kW
231 hp
Rated PTO power (hp SAE) 126 kW
170 hp
Maximum PTO power
Transmission type Standard: John Deere e23™ 42 km/h
26 mph
Optional: John Deere e23 transmission 50 km/h
31 mph
John Deere Infinitely Variable Transmission (IVT™) 0.050-42 km/h (0.030-26 mph)
John Deere Infinitely Variable Transmission (IVT) 0.050-50 km/h (0.030- 31 mph)
Hydraulic pump rated output Standard: 63 cc: 162 L/min
43 gpm
Optional: 85 cc: 222.3 L/min
59 gpm
Rear hitch category (SAE designation) Standard: Category 3/3N with Quik-Coupler
Optional: Category 3/3N with hook ends
Base machine weight e23, TLS™, 18.4R46: 10,000 kg
22,000 lb

Engine specifications

Description John Deere PowerTech™ PVS (B20 Diesel Compatible) 6.8L
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head
Engine family JJDXL06.8309
Rated speed 2100 rpm
Aspiration Single turbocharger, variable geometry turbo
Emission level Final Tier 4
After treatment type Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)
Displacement 6.8 L
415 cu in.

Engine performance

Rated power ECE-R120: 154 kW
210 hp
Rated PTO power (hp SAE) 126 kW
170 hp
Power boost 22 kW
30 hp
Maximum engine power ECE-R120: 170 kW
231 hp
Engine peak torque At 1600 rpm: 983 Nm
725 lb-ft
PTO torque rise 40 percent

Transmission

Type Standard: John Deere e23™ 42 km/h
26 mph
Optional: John Deere e23™ Transmission 50 km/h
31 mph
John Deere Infinitely Variable Transmission (IVT™) 0.050-42 km/h (0.030-26 mph)
John Deere Infinitely Variable Transmission (IVT) 0.050-50 km/h (0.030- 31 mph)

Hydraulic system

Type Closed-center, pressure/flow compensated system with load sensing
Pump rated output Standard: 63 cc: 162 L/min
43 gpm
Optional: 85 cc: 222.3 L/min
59 gpm
Available flow at a single rear SCV 132 L/min
35 gpm
Available flow at front SCVs 126 L/min
33 gpm
Number of rear selective control valves (SCVs) Standard: four SCVs
Optional: Three to six ISO couplers: 12.7 mm
1/2 in.
Five ISO couplers (SCV 1: 19-mm [3/4-in.] couplers, SCV 2-5: 12.7-mm [1/2-in.] coupler)
Number of front selective control valves (SCVs) One with front hitch
SCV control Electronic

Rear hitch

Hitch category (SAE designation) Standard: Category 3/3N with Quik-Coupler
Optional: Category 3/3N with hook ends
Maximum lift capacity behind lift points Standard (Category 3): 5443 kg
12,000 lb
Optional (Category 3N): 6894 kg
15,200 lb
Standard (Category 3 with hook ends): 5443 kg
Optional (Category 3 with hook ends): 6894 kg
15,000 lb
Sensing type Electrohydraulic

Drawbar

Drawbar category Standard: Category 3
Optional: Category 3 with heavy-duty support
Category 4
Maximum vertical load Standard: Category 3: 1,837 kg
4,050 lb
Optional: Category 3 with heavy-duty support: 4,536 kg
10,000 lb

Rear power take-off (PTO)

Type Independent
Standard: 44.45 mm (1.75 in.) 20-spline, 1,000 rpm
Optional: 44.45 mm (1.75 in.), 20-spline, 1,000 rpm capable of 35 mm (1.375 in.) 540/1000 rpm
44.45 mm (1.75 in.) 20-spline, 1,000 rpm with 35 mm (1.375 in.) 540E/1000/1000E rpm gearcase
44.45 mm (1.75 in.) 20-spline, 1,000 rpm with 35 mm (1.375 in.) 540/540E/1000 rpm gearcase
Engine rpm (at rated PTO speeds) 540/1000 PTO rpm at 1950 engine rpm
540E/1000E PTO rpm at 1750 engine rpm
PTO actuation Electric switch with adjustable modulation

Front hitch

Category Category 3N, ground engaging
Electric power Seven-pin connector
Standard lift capacity 5,200 kg
11,464 lb
Front power take-off (PTO) Available
Optional: 44.45 mm (1.75 in.), 20 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)
35 mm (1.375 in.) 21 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)
35 mm (1.375 in.) 6 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)**
PTO speed 1,000 PTO rpm at 1940 engine rpm

Rear axle

Type Standard: Rack-and-pinion or flange axles
Optional: Diameter: 100 x 3010 mm
3.94 x 118.5 in.
Diameter: 100 x 2808 mm
3.94 x 110.5 in.
Diameter: 100 x 2550 mm
3.94 x 100.4 in.
Flanged Axle: 335 mm
13.2 in.
Final drive type Inboard planetary three pinion
Rear differential lock Full-locking electrohydraulic

Front axle

Type Standard: 1150 Series MFWD: tread range 1524 to 2235 mm
60 to 88 in.
Optional: TLS: Tread range 1524 to 2235 mm
TLS with front brakes available with 40 km/h
24.9 mph
TLS with front brakes standard with 50 km/h
31 mph
Front axle differential lock 1150 Series MFWD: Limited slip
TLS: Limited slip
TLS with front brakes: Full-locking electrohydraulic (actuated at same time as rear diff lock)

Tires

Front RCI Group 42/43
Rear RCI Group 47/48
Turning radius with brakes 380/85R34 group 42 tires at 152.4-cm (60-in.) spacing 1300: 7 m
23 ft
600/70R30 group 43 tires at 188.2-cm (74.1-in.) spacing TLS: 6.7 m
22 ft

Steering

Type Standard: Hydrostatic power

Electrical system

Alternator size Standard: 210 amp
Optional: 250 amp
Battery options 12 V
Working lights Standard: 18 halogen
Available: 18 LED or 22 LED
Type of bulb in headlight (Halogen, Zenon, LED)
Standard: 65-W halogen
Available: LED
Total cold cranking amps With two 925 CCA group 31 batteries: 1850 CCA

Operator station

Seat Degree of seat swivel, left hand
25 degree
Degree of seat swivel, right hand
40 degree
Standard: air suspension
Optional: ActiveSeat™ II
Cab suspension Optional
Instructional seat Standard
Display Standard: 4100 Generation 4 CommandCenter™: 17.8 cm
7 in.
Optional: 4600 Generation 4 CommandCenter: 25.4 cm
10 in.
Radio Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume 3.24 m3
114 cu ft
Cab glass area 6.56 m2
70.61 sq ft

Dimensions

Wheelbase 2,925 mm
115.2 in.
Overall length 5520 mm
217 in.
Drawbar clearance Group 47 rear tires: 360 mm
14.2 in.
Group 48 rear tires: 415 mm
16.3 in.

Weight

Base machine weight e23, TLS, 18.4R46: 10,000 kg
23,000 lb
Maximum ballast level SAE PTO hp: 65.8 kg
145 lb

Capacities

Crankcase oil volume 26 L
6.9 U.S. gal.
Fuel tank e23™: 463 L
122 U.S. gal.
IVT: 513 L
135 U.S. gal.
Diesel exhaust fluid (DEF) tank 26.2 L
6.9 U.S. gal.
Cooling system 39.5 L
10.4 U.S. gal.
Transmission-hydraulic system 160 L
42.3 U.S. gal.

Serviceability

Interval for engine oil change 500 hours
Interval for hydraulic/transmission oil change 1,500 hours
Interval for engine coolant change 6,000 hours

Loaders

Loader H480
Lift capacity at full height 2411 kg
5315 lb
Maximum lift height 4704 mm
185.2 in.

Precision AG

Guidance Integrated AutoTrac™
Telematic JDLink™
Remote diagnostics ServiceADVISOR™ Remote: available with JDLink hardware and activations
Remote Display Access: available with JDLink hardware and activations
