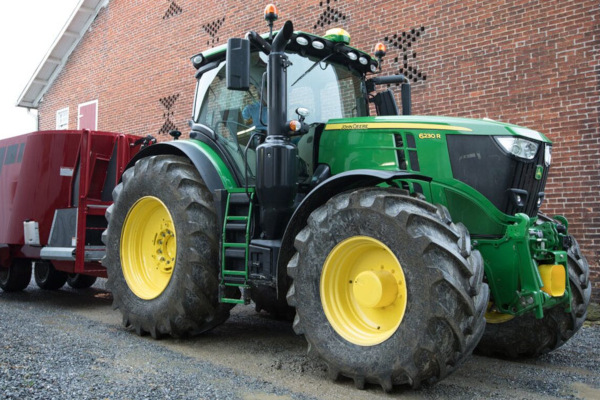

John Deere 6230R

Double tap to zoom



Features

  • CommandCenter™ display
  • Infinitely Variable Transmission (AutoPowr™/IVT™) system
  • CommandPRO™ joystick driving strategy
  • Rear-mounted selective control valves (SCVs)
  • ComfortView™ cab operator environment
  • PowerTech™ PVS/PSS Stage 4 engine
  • Lighting options provide maximum visibility in every direction
  • Triple-Link Suspension (TLS™) Plus: More than comfort, it is a performance feature
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Engine description John Deere PowerTech™ PSS
Engine displacement 6.8 L
415 cu in.
Rated engine power 97/68EC: 169 kW
230 hp
Maximum engine power 97/68EC: 186 kW
253 hp
Rated PTO power (hp SAE) 136 kW
185 hp
Transmission type Infinitely variable transmission (IVT™) 0.050-42 km/h
0.030-26 mph
IVT 0.050-50 km/h
0.030-31 mph
Hydraulic pump rated output Standard: 85 cc pump: 160 L/min
42 gpm
Rear hitch category (SAE designation) Standard: Category 3/3N: 7400 kg
16,300 lb
Maximum: 10,400 kg
22,900 lb

Engine specifications

Description John Deere PowerTech™ PSS
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves in head
Engine family JJDXL06.8309
Rated speed 2100 rpm
Aspiration Turbocharged, variable geometry and fixed turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 6.8 L
415 cu in.

Engine performance

Rated power 97/68EC: 169 kW
230 hp
Rated PTO power (hp SAE) 136 kW
185 hp
Power boost 10 percent
Maximum engine power 97/68EC: 186 kW
253 hp
Engine peak torque At 1,600 rpm: 1074 Nm
792 lb-ft

Transmission

Type Infinitely variable transmission (IVT™) 0.050-42 km/h
0.030-26 mph
IVT 0.050-50 km/h
0.030-31 mph

Hydraulic system

Type Closed-center, pressure/flow compensated
Pump rated output Standard: 85 cc pump: 160 L/min
42 gpm
Available flow at a single rear SCV 116 L/min
30.6 gpm
Number of rear selective control valves (SCVs) Standard: Three ISO couplers
Optional: Three to six ISO couplers
SCV control Electronic

Rear hitch

Hitch category (SAE designation) Category 3/3N: 7400 kg
16,300 lb
Maximum: 10,400 kg
22,900 lb
Sensing type Electrohydraulic

Drawbar

Drawbar category Category 3
Maximum vertical load Category 3: 1600-2800 kg
3527-6172 lb
Maximum vertical load dependent on drawbar position

Rear power take-off (PTO)

Type Independent
Standard: 35 mm (1.375 in) 540, 1000 rpm reversible shaft
Optional: 35 mm (1.375 in) 540, 540E, 1000 rpm reversible shaft
35 mm (1.375 in) 540E, 1000, 1000E rpm reversible shaft
Engine rpm (at rated PTO speeds) 1950 engine rpm at 540/1000 rpm PTO
1761 engine rpm at 540E rpm PTO
1756 engine rpm at 1000E rpm PTO

Rear axle

Type Standard: 100 x 2550 mm
3.94 x 100.4 in.
Final drive type Inboard planetary three pinion
Rear differential lock Full-locking electrohydraulic

Front axle

Type Standard: Mechanical front-wheel drive (MFWD)
Optional: Triple link suspension (TLS™)
Front axle differential lock MFWD: limited slip
TLS: limited slip
TLS with brakes: Full-locking electrohydraulic

Tires

Wheel tread range MFWD: With TLS and brakes: 2370 mm
93.3 in.

Steering

Type Hydrostatic power

Electrical system

Alternator size Standard: 240 amp
Battery options 12 V
Working lights Standard: 14 halogen
Available: 12 LED plus two halogen
Type of bulb in headlight (Halogen, Zenon, LED)
Standard: 65-W halogen
Available: LED
Total cold cranking amps 1850 CCA

Operator station

Seat Degree of seat swivel, left hand
7.5 degree
Degree of seat swivel, right hand
30 degree
Standard: Air suspension
Optional: Deluxe air suspension
Cab suspension Adaptive Hydraulic Cab Suspension Plus (HCS Plus)
Instructional seat Standard
Display LCD instrument cluster
Standard: CommandCenter™ display: 213.4 mm
8.4 in.
Radio Optional

Dimensions

Wheelbase 2900 mm
114 in.
Front axle center MFWD/TLS axle under differential housing

Weight

Base machine weight Total
9300 kg
21,100 lb
Maximum permissible weight Flange axle: 15,000 kg
33,000 lb
Rack-and-pinion axle: 13,450 kg
29,652 lb

Capacities

Crankcase oil volume 23.5 L
6.2 U.S. gal.
Fuel tank Standard: 470 L
124.1 U.S. gal.
Optional: 410 L
108.3 U.S. gal.
Diesel exhaust fluid (DEF) tank 25 L
6.6 U.S. gal.
Cooling system 29.4 L
7.7 U.S. gal.
Transmission-hydraulic system IVT: 160 L
42.2 U.S. gal.

Serviceability

Interval for engine oil change 750 hours
Interval for hydraulic/transmission oil change 1,500 hours
Interval for engine coolant change 6,000 hours
