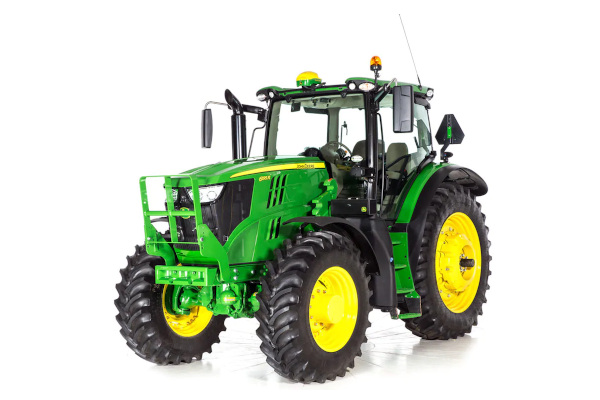

John Deere 6195R

Double tap to zoom



Features

  • CommandCenter™ display
  • Infinitely Variable Transmission (AutoPowr™/IVT™) system
  • CommandPRO™ joystick driving strategy
  • Rear-mounted selective control valves (SCVs)
  • ComfortView™ cab operator environment
  • PowerTech™ PVS/PSS Stage 4 engine
  • Lighting options provide maximum visibility in every direction
  • Triple-Link Suspension (TLS™) Plus: More than comfort, it is a performance feature
  • ISOBUS and tractor-baler automation offer optimized baling experience
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Engine description John Deere PowerTech™ PSS
Engine displacement 6.8 L
415 cu in.
Rated engine power 97/68EC: 143 kW
195 hp
Maximum engine power 97/68EC: 158 kW
212 hp
Rated PTO power (hp SAE) 118 kW
158 PTO hp
Transmission type Standard: 20 Speed AutoQuad™ PLUS ECO (40K)
Optional: 16 speed PowerQuad™ PLUS
20 speed AutoQuad PLUS (50K)
DirectDrive™ ECO (40K)
Infinitely variable transmission (IVT™) 0.050-42 km/h
0.030-26 mph
Infinitely variable transmission (IVT) 0.050-50 km/h
0.030-31 mph
Hydraulic pump rated output Standard: 60 cc pump: 155 L/min
41 gpm
Rear hitch category (SAE designation) Standard: Category 3/3N: 4300 kg
9480 lb
Optional: Category 3/3N: 4850 kg
10690 lb

Engine specifications

Description John Deere PowerTech™ PSS
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves in head
Engine family HJDXL06.8309
Rated speed 2100 rpm
Aspiration Turbocharged, fixed geometry first stage-variable geometry second stage, air-to-air aftercooling and cooled exhaust gas recirculation
After treatment type DOC/DPF/SCR
Displacement 6.8 L
415 cu in.

Engine performance

Rated power 97/68EC: 143 kW
195 engine hp
Rated PTO power (hp SAE) 118 kW
158 PTO hp
Power boost 10 percent
Maximum engine power 97/68EC: 158 kW
212 hp
Engine peak torque At 1,600 rpm: 910 Nm
672 lb-ft
PTO torque rise 40 percent

Transmission

Type Standard: 20 Speed AutoQuad™ PLUS ECO (40K)
Optional: 16 speed PowerQuad™ PLUS
20 speed AutoQuad PLUS (50K)
DirectDrive™ ECO (40K)
Infinitely variable transmission (IVT™) 0.050-42 km/h
0.030-26 mph
Infinitely variable transmission (IVT) 0.050-50 km/h
0.030-31 mph

Hydraulic system

Type Closed-center, pressure/flow compensated
Pump rated output Standard: 60 cc pump: 155 L/min
41 gpm
Available flow at a single rear SCV 100 L/min
26.4 gpm
SCV control Mechanical

Rear hitch

Hitch category (SAE designation) Standard: Category 3/3N: 4300 kg
9480 lb
Optional: Category 3/3N: 4850 kg
10690 lb
Sensing type Electrohydraulic

Drawbar

Drawbar category Category 3
Maximum vertical load Category 3: 1600-2800 kg
3525-6170 lb
Maximum vertical load dependent on drawbar position

Rear power take-off (PTO)

Type Independent
Standard: 35 mm (1.375 in) 540, 1000 rpm reversible shaft
Optional: 35 mm (1.375 in) 540, 540E, 1000 rpm reversible shaft
35 mm (1.375 in) 540E, 1000, 1000E rpm reversible shaft
44.5 mm (1.75 in) 540, 1000 rpm reversible shaft
44.5 mm (1.75 in) 540, 540E, 1000 rpm reversible shaft
44.5 mm (1.75 in) 540E, 1000, 1000E rpm reversible shaft
Engine rpm (at rated PTO speeds) 1950 engine rpm at 540/1000 rpm PTO
1761 engine rpm at 540E rpm PTO
1756 engine rpm at 1000E rpm PTO

Rear axle

Type Standard: 100 x 2550 mm
3.94 x 100.4 in.
Optional: 100 x 2808 mm
3.94 x 110.5 in.
100 x 3012 mm
3.94 x 118.5 in.
Final drive type Inboard planetary three pinion
Rear differential lock Full-locking electrohydraulic

Front axle

Type Standard: Mechanical front-wheel drive (MFWD)
Optional: Triple link suspension (TLS)
Front axle differential lock MFWD: limited slip
Triple link suspension (TLS): limited slip
Triple link suspension (TLS) with brakes: Full-locking electrohydraulic

Tires

Wheel tread range MFWD: 1524-2235 mm
60-88 in.
Triple link suspension (TLS): 1524-2235 mm

Steering

Type Hydrostatic power

Electrical system

Alternator size Standard: 200 amp
Optional: 240 amp
Battery options 12 V
Working lights Standard: 14 halogen
Available: 12 LED plus two halogen
Type of bulb in headlight (Halogen, Zenon, LED)
Standard: 65-W halogen
Available: LED
Total cold cranking amps 1230 CCA
With cold weather package or IVT: 1400 CCA

Operator station

Seat Degree of seat swivel, left hand
CommandARM™: 7.5 degree
Degree of seat swivel, right hand
CommandARM™: 30 degree
Standard: Air suspension
Optional: Deluxe air suspension
Cab suspension Optional
Instructional seat Optional
Display LCD instrument cluster
Standard: CommandCenter™ display: 178 mm
7 in.
Optional: CommandCenter display: 254 mm
10 in.
Radio Optional

Dimensions

Wheelbase 2800 mm
110.2 in.
Front axle center MFWD/TLS axle under differential housing with 420/90R30 tires: 511 mm
20.15 in.

Weight

Base machine weight
Total
MFWD, AutoQuad, front weight support, one pair 204-kg (450-lb) rear weights, front fenders, 480/80R46 rear duals, 420/90R30 front, shipping fuel: 8661 kg
19100 lb
Maximum permissible weight 13450 kg
29650 lb

Capacities

Crankcase oil volume 23.5 L
6.2 U.S. gal.
Fuel tank 330 L
87.1 U.S. gal.
Diesel exhaust fluid (DEF) tank 20 L
5.3 U.S. gal.
Cooling system 28.2 L
7.4 U.S. gal.
Transmission-hydraulic system PowrQuad/AutoQuad: 71 L
18.8 U.S. gal.
DirectDrive™ ECO: 75 L
19.8 U.S. gal.
IVT: 81 L
21.4 U.S. gal.

Serviceability

Interval for engine oil change 750 hours
Interval for hydraulic/transmission oil change 1,000 hours
Interval for engine coolant change 6,000 hours
