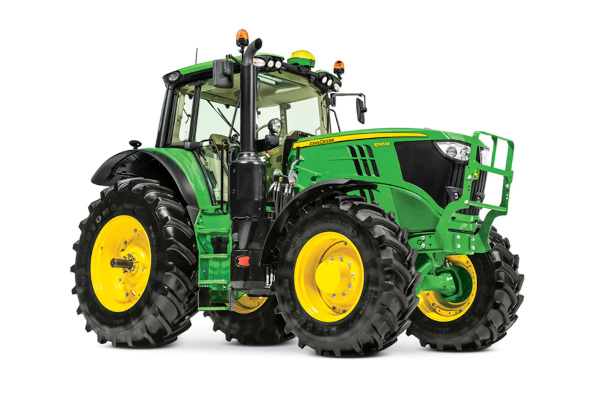

John Deere 6195M

Double tap to zoom



Features

  • Ride in comfort with reimagined cab and premium options
  • Focus more on the job and less on steering with AutoTrac™ guidance on the cornerpost display
  • Boost power and productivity in operations using Intelligent Power Management
  • Easy implement control using rear-mounted selective control valves (SCVs)
  • Increase versatility with a front hitch and front power take-off (PTO)
  • Increase visibility and productivity with light packages
  • Stay connected to all machines from anywhere with JDLink™ system
  • Improved access for serviceability with side panels and oil dipstick location
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Engine description John Deere PowerTech™ PVS
Engine displacement 6.8 L
415 cu in.
Rated engine power 97/68EC: 143 kW
195 hp
Rated PTO power (hp SAE) 117 kW
160 hp
Transmission type John Deere PowrQuad™ Plus 40 km/h
25 mph
Optional: John Deere AutoQuad™ Plus 40 km/h
John Deere CommandQuad™ Plus 40 km/h
John Deere PowrQuad™ Plus 30 km
19 mph
Hydraulic pump rated output Standard: 45 cc pump: 114 L/min
30 gpm
Rear hitch category (SAE designation) Category 3 at 610 mm behind hitchpoint: 4850 kg
10690 lb

Engine specifications

Description John Deere PowerTech™ PVS
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Engine family HJDXL06.8309
Rated speed 2100 rpm
Aspiration Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 6.8 L
415 cu in.

Engine performance

Rated power 97/68EC: 143 kW
195 hp
Rated PTO power (hp SAE) 117 kW
160 hp
Power boost 6 percent
Engine peak torque At 1,500 rpm: 880 Nm
650 lb-ft
PTO torque rise 35 percent

Transmission

Type John Deere PowrQuad™ Plus 40 km/h
25 mph
Optional: John Deere AutoQuad™ Plus 40 km/h
John Deere CommandQuad™ Plus 40 km/h
John Deere PowrQuad™ Plus 30 km
19 mph

Hydraulic system

Pump rated output Standard: 45 cc pump: 114 L/min
30 gpm
Available flow at a single rear SCV 60 L/min
16 gpm
100 L/min
26 gpm
Number of rear selective control valves (SCVs) Standard: ISO Couplers: 2
Optional: ISO Couplers: up to 4
Number of mid selective control valves (SCVs) ISO Couplers: 3
SCV control Mechanical

Rear hitch

Hitch category (SAE designation) Category 3 at 610 mm behind hitchpoint: 4850 kg
10690 lb
Maximum lift capacity behind lift points Standard: at lower links: 8500 kg
18740 lb
Sensing type Electronic lower link

Drawbar

Drawbar category Category 2
Maximum vertical load 1400-2450 kg
3090-5400 lb
Maximum vertical load dependent on drawbar position

Rear power take-off (PTO)

Type Electrohydraulically operated
Standard: 35mm (1.375 in) 540, 540E, 1000 rpm reversible shaft
Engine rpm (at rated PTO speeds) 1950 engine rpm at 540 rpm PTO
1721 engine rpm at 540E rpm PTO
1950 engine rpm at 1000 rpm PTO

Front hitch

Standard lift capacity At 610 mm in front of hitching point: 2550 kg
5620 lb
Front power take-off (PTO) Electrohydraulically operated, oil cooled
PTO speed 1995 engine rpm at 1000 rpm PTO

Rear axle

Type Standard: with 2-position fixed cast wheels: 92 x 2550 mm
3.622 x 100.4 in.
Final drive type 3 planetary gear reduction
Rear differential lock Electronic multi disc oil cooled

Front axle

Type Standard: MFWD
Front axle differential lock Limited slip

Electrical system

Alternator size Standard: 90 amp
150 amp
Battery options 12 V

Operator station

Seat Standard: Mechanical suspension cloth seat
Optional: Air suspension
Instructional seat Optional
Display LCD instrument cluster
Inner cab volume 2.73 m3
96.41 cu ft
Cab glass area 4.79 m2
51.56 sq ft

Weight

Base machine weight
Total
7500 kg
16535 lb
Maximum ballast level
Maximum permissible weight 12300 kg
27120 lb

Capacities

Crankcase oil volume 23.5 L
6.2 U.S. gal.
Fuel tank 325 L
86 U.S. gal.
Diesel exhaust fluid (DEF) tank 20 L
5.3 U.S. gal.
Cooling system 28 L
7.4 U.S. gal.
Transmission-hydraulic system 60 L
15.8 U.S. gal.

Serviceability

Interval for engine oil change 500 hours
Interval for hydraulic/transmission oil change 1,500 hours
Interval for engine coolant change 6,000 hours

Miscellaneous

Country of manufacture Germany

Additional information

Date collected 9-Feb-17
