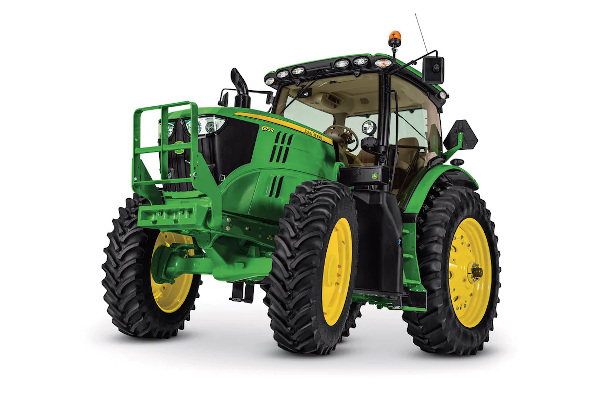

John Deere 6175R

Double tap to zoom



Features

  • CommandCenter™ display
  • Infinitely Variable Transmission (AutoPowr™/IVT™) system
  • CommandPRO™ joystick driving strategy
  • Rear-mounted selective control valves (SCVs)
  • ComfortView™ cab operator environment
  • PowerTech™ PVS/PSS Stage 4 engine
  • Lighting options provide maximum visibility in every direction
  • Triple-Link Suspension (TLS™) Plus: More than comfort, it is a performance feature
  • ISOBUS and tractor-baler automation offer optimized baling experience
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Engine description John Deere PowerTech™ PVS
Engine displacement 6.8 L
415 cu in.
Rated engine power 97/68EC: 129 kW
175 hp
Rated PTO power (hp SAE) 104 kW
140 hp
Transmission type Standard: 20 Speed AutoQuad PLUS™ ECO (40K)
Optional: 16 speed PowerQuad PLUS™
20 speed AutoQuad PLUS™ (50K)
DirectDrive ECO™ (40K)
Infinitely variable transmission (IVT) 0.050-42 km/h
0.030-26 mph
Infinitely variable transmission (IVT) 0.050-50 km/h
0.030-31 mph
Hydraulic pump rated output Standard: 60 cc pump: 155 L/min
41 gpm
Rear hitch category (SAE designation) Standard: Category 3/3N: 4300 kg
9480 lb
Optional: Category 3/3N: 4850 kg
10690 lb

Engine specifications

Description John Deere PowerTech™ PVS
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Engine family HJDXL06.8309
Rated speed 2100 rpm
Aspiration Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 6.8 L
415 cu in.

Engine performance

Rated power 97/68EC: 129 kW
175 hp
Rated PTO power (hp SAE) 104 kW
140 hp
Engine peak torque At 1,600 rpm: 817 Nm
603 lb-ft

Transmission

Type Standard: 20 Speed AutoQuad PLUS™ ECO (40K)
Optional: 16 speed PowerQuad PLUS™
20 speed AutoQuad PLUS™ (50K)
DirectDrive ECO™ (40K)
Infinitely variable transmission (IVT) 0.050-42 km/h
0.030-26 mph
Infinitely variable transmission (IVT) 0.050-50 km/h
0.030-31 mph

Hydraulic system

Type Closed-center, pressure/flow compensated
Pump rated output Standard: 60 cc pump: 155 L/min
41 gpm
Available flow at a single rear SCV 100 L/min
26.4 gpm
Number of rear selective control valves (SCVs) Standard: ISO Couplers: 3
Optional: ISO Couplers: 3-6
SCV control Mechanical

Rear hitch

Hitch category (SAE designation) Standard: Category 3/3N: 4300 kg
9480 lb
Optional: Category 3/3N: 4850 kg
10690 lb
Sensing type Electrohydraulic

Drawbar

Drawbar category Category 3
Maximum vertical load Category 3: 1600-2800 kg
3525-6170 lb
Maximum vertical load dependent on drawbar position

Rear power take-off (PTO)

Type Independent
Standard: 35 mm (1.375 in) 540, 1000 rpm reversible shaft
Optional: 35 mm (1.375 in) 540, 540E, 1000 rpm reversible shaft
35 mm (1.375 in) 540E, 1000, 1000E rpm reversible shaft
Engine rpm (at rated PTO speeds) 1950 engine rpm at 540/1000 rpm PTO
1761 engine rpm at 540E rpm PTO
1756 engien rpm at 1000E rpm PTO

Rear axle

Type Standard: 100 x 2550 mm
3.94 x 100.4 in.
Optional: 100 x 2808 mm
3.94 x 110.5 in.
100 x 3012 mm
3.94 x 118.5 in.
Final drive type Inboard planetary three pinion
Rear differential lock Full-locking electrohydraulic

Front axle

Type Standard: MFWD
Optional: Triple link suspension (TLS™)
Front axle differential lock MFWD: limited slip
Triple link suspension (TLS™): limited slip
Triple link suspension (TLS™) with brakes: full-locking electrohydraulic

Tires

Wheel tread range MFWD: 1524-2235 mm
60-88 in.
Triple link suspension (TLS™): 1524-2235 mm

Steering

Type Hydrostatic power

Electrical system

Alternator size Standard: 200 amp
Optional: 240 amp
Battery options 12 V
Total cold cranking amps 1230 CCA
With cold weather pakcage or IVT: 1400 CCA

Operator station

Seat Standard: Air suspension
Optional: Deluxe Aar suspension
Cab suspension Optional
Instructional seat Optional
Display LCD instrument cluster
Standard: CommandCenter™ display: 178 mm
7 in.
Optional: CommandCenter™ display: 254 mm
10 in.
Radio Optional

Dimensions

Wheelbase 2800 mm
110.2 in.
Front axle center MFWD/TLS™ axle under differential housing w/ 420/90R30 tires: 537 mm
21.14 in.

Weight

Base machine weight Total
MFWD, AQ, front weight support, 1 pr. 450lbs rear weights, front fenders, 480/80R46 rear duals, 420/90R30 front, shipping fuel: 8661 kg
19100 lb
Maximum permissible weight 12700 kg
28000 lb

Capacities

Crankcase oil volume 23.5 L
6.2 U.S. gal.
Fuel tank 330 L
87.1 U.S. gal.
Diesel exhaust fluid (DEF) tank 20 L
5.3 U.S. gal.
Cooling system 28.2 L
7.4 U.S. gal.
Transmission-hydraulic system PowrQuad™/AutoQuad™: 71 L
18.8 U.S. gal.
DirectDrive™ ECO: 75 L
19.8 U.S. gal.
IVT: 81 L
21.4 U.S. gal.

Serviceability

Interval for engine oil change 750 hours
Interval for hydraulic/transmission oil change 1,000 hours
Interval for engine coolant change 6,000 hours
