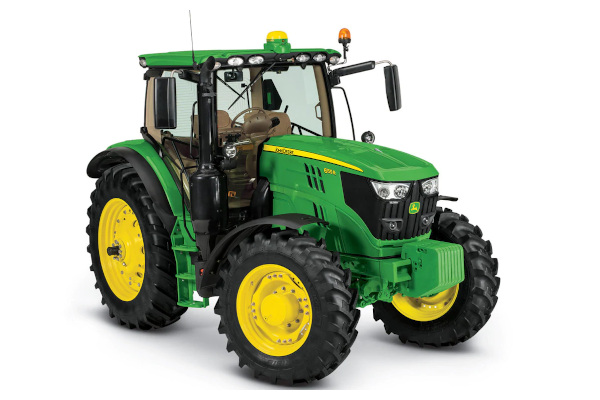

John Deere 6155R

Double tap to zoom



Features

  • CommandCenter™ display
  • DirectDrive transmission (available on 6145R-6215R Tractors)
  • Infinitely Variable Transmission (AutoPowr™/IVT™) system
  • CommandPRO™ joystick driving strategy
  • Rear-mounted selective control valves (SCVs)
  • ComfortView™ cab operator environment
  • PowerTech™ PVS/PSS Stage 4 engine
  • Lighting options provide maximum visibility in every direction
  • Triple-Link Suspension (TLS™) Plus: More than comfort, it is a performance feature
  • ISOBUS and tractor-baler automation offer optimized baling experience
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Engine description John Deere PowerTech™ PVS
Engine displacement 6.8 L
415 cu in.
Rated engine power 97/68EC: 116 kW
155 engine hp
Maximum engine power
Rated PTO power (hp SAE) 90 kW
121 hp
Maximum PTO power
Transmission type Standard: 20 Speed AutoQuad PLUS™ ECO (40K)
Optional: 16 speed PowerQuad PLUS™
20 speed AutoQuad PLUS™ (50K)
DirectDrive™ ECO (40K)
Infinitely variable transmission (IVT): 0.050-42 km/h
0.030-26 mph
Infinitely variable transmission (IVT) 0.050-50 km/h
0.030-31 mph
Hydraulic pump rated output Standard: 45 cc pump: 114 L/min
30 gpm
Optional: 60 cc pump: 155 L/min
41 gpm
Rear hitch category (SAE designation) Category 3/3N: 4170 kg
9193 lb
Base machine weight

Engine specifications

Description John Deere PowerTech™ PVS
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Engine family HJDLX06.8302
Rated speed 2100 rpm
Aspiration Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders liners
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 6.8 L
415 cu in.

Engine performance

Rated power 97/68EC: 116 kW
155 engine hp
Rated PTO power (hp SAE) 90 kW
121 hp
Maximum PTO power
Power boost
Maximum engine power
Engine peak torque At 1,600 rpm: 724 Nm
533 lb-ft
PTO torque rise 40 percent
Intelligent Power Management (available in transport and/or mobile PTO applications)

Transmission

Type Standard: 20 Speed AutoQuad PLUS™ ECO (40K)
Optional: 16 speed PowerQuad PLUS™
20 speed AutoQuad PLUS™ (50K)
DirectDrive™ ECO (40K)
Infinitely variable transmission (IVT): 0.050-42 km/h
0.030-26 mph
Infinitely variable transmission (IVT) 0.050-50 km/h
0.030-31 mph
Reverser
Clutch; wet/dry
Creeper

Hydraulic system

Type Closed-center, pressure/flow compensated
Pump rated output Standard: 45 cc pump: 114 L/min
30 gpm
Optional: 60 cc pump: 155 L/min
41 gpm
Available flow at a single rear SCV 100 L/min
26 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs) Standard: ISO Couplers: 3
ISO Couplers: 3-6
Number of mid selective control valves (SCVs)
Number of front selective control valves (SCVs)
Joystick SCV control
SCV control Mechanical

Rear hitch

Hitch draft control load sense type
Remote control valves available
Hitch category (SAE designation) Category 3/3N: 4170 kg
9193 lb
Maximum lift capacity behind lift points
Lift capacity at standard frame
Sensing type Electrohydraulic
Rear axle differential lock

Drawbar

Drawbar category Category 2
Maximum vertical load Category 2: 1400-2450 kg
3085-5400 lb
Maximum vertical load dependent on drawbar position

Rear power take-off (PTO)

Type Independent
Standard: 35 mm (1.375 in) 540, 1000 rpm reversible shaft
Optional: 35 mm (1.375 in) 540, 540E, 1000 rpm reversible shaft
Engine rpm (at rated PTO speeds) 1967 engine rpm at 540 rpm PTO
1753 engine rpm at 540E rpm PTO
2000 engine rpm at 1000 rpm PTO
Multispeed PTO option availability
Ground speed PTO option availability
PTO actuation

Front hitch

Category
Electric power
Standard lift capacity
Front power take-off (PTO)
PTO speed

Rear axle

Type Standard: 92 x 2550 mm
3.62 x 100.4 in.
Optional: 92 x 2808 mm
3.62 x 110.5 in.
Final drive type Inboard planetary three pinion
Differential controls
Axle type
Brakes, type and control
Rear differential lock Full-locking electrohydraulic
Load rating

Front axle

Type Standard: MFWD
Triple link suspension (TLS™)
Front axle differential lock MFWD: limited slip
Triple link suspension (TLS™): limited slip
Triple link suspension (TLS™) with brakes: full-locking electrohydraulic
Load rating

Tires

Front
Rear
Wheel tread range MFWD: 1524-2235 mm
60-88 in.
Triple link suspension (TLS™): 1524-2235 mm
60-88
Turning radius with brakes
Turning radius without brakes

Tracks

Tread spacing
Drive type
Track width
Midrollers

Steering

Type Hydrostatic power

Electrical system

Alternator size Standard: 200 amp
Optional: 240 amp
Battery options 12 V
Working lights
Type of bulb in headlight (Halogen, Zenon, LED)
Type of bulb in beacon (Halogen, Zenon, LED)
dB(A) rating for backup alarm
Total cold cranking amps 1230 CCA
with cold weather package or IVT: 1400 CCA

Operator station

Rollover protective structure, OOS

Seat

Standard: Air suspension
Optional: Deluxe air suspension
Cab suspension Optional
Instructional seat Optional
Display LCD insturment cluster
Standard: CommandCenter™ display: 178 mm
7 in.
Optional: CommandCenter™ display: 254 mm
10 in.
Radio Optional
Inner cab volume 3.33 m3
117.59 cu ft
dB(A) rating
Cab glass area 6.11 m2
65.77 sq ft
Safety glass rating
Front visibility

Dimensions

Wheelbase 2WD: 2985 mm
117.5 in.
MFWD: 2765 mm
108.8 in.
Overall length
Overall height
Drawbar clearance
Front axle center MFWD/TLS™ axle under differential housing w/ 380/85R30 tires: 584 mm
23 in.
Approximate shipping weight, Open;Cab 6560 kg
14462 lb

Weight

Base machine weight

Maximum ballast level
Maximum permissible weight 11750 kg
25904 lb

Capacities

Crankcase oil volume 23.5 L
6.2 U.S. gal.
Fuel tank 270 L
71.3 U.S. gal.
Diesel exhaust fluid (DEF) tank 16 L
4.2 U.S. gal.
Cooling system

27 L
7.1 U.S. gal.
Transmission-hydraulic system PowrQuad™/AutoQuad™: 63 L
16.6 U.S. gal.
DirectDrive™ ECO: 75 L
19.8 U.S. gal.
IVT: 62 L
16.4 U.S. gal.

Serviceability

Interval for engine oil change 750 hours
Interval for hydraulic/transmission oil change 1,000 hours
Interval for engine coolant change 6,000 hours

Loaders

Loader 640R
Lift capacity at full height Mechanical self-leveling: measured at 800 mm ahead of pivot: 2148 kg
4736 lb
Non self-leveling: measured at 800 mm ahead of pivot: 1738 kg
3832 lb
Maximum lift height Mechanical self-leveling: bucket level: 4060 mm
160 in.
Non self-leveling: bucket level: 4060 mm

Precision AG

Guidance
Telematic
Remote diagnostics
