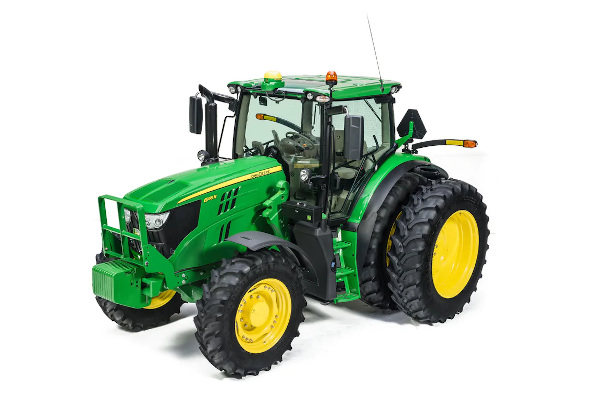

John Deere 6145R

Double tap to zoom



Features

  • CommandCenter™ display
  • DirectDrive transmission (available on 6145R-6215R Tractors)
  • Infinitely Variable Transmission (AutoPowr™/IVT™) system
  • CommandPRO™ joystick driving strategy
  • Rear-mounted selective control valves (SCVs)
  • ComfortView™ cab operator environment
  • PowerTech™ PVS/PSS Stage 4 engine
  • Lighting options provide maximum visibility in every direction
  • Triple-Link Suspension (TLS™) Plus: More than comfort, it is a performance feature
  • ISOBUS and tractor-baler automation offer optimized baling experience
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Engine description John Deere PowerTech™ PVS
Engine displacement 6.8 L
415 cu in.
Rated engine power 97/68EC: 108 kW
145 hp
Rated PTO power (hp SAE) 83 kW
111 hp
Transmission type Standard: 20 Speed AutoQuad PLUS™ ECO (40K)
Optional: 16 speed PowerQuad PLUS™
20 speed AutoQuad PLUS™ (50K)
DirectDrive™ ECO (40K)
Infinitely variable transmission (IVT) 0.050-42 km/h
0.030-26 mph
Infinitely variable transmission (IVT) 0.050-50 km/h
0.030-31 mph
Hydraulic pump rated output Standard: 45 cc pump: 114 L/min
30 gpm
Optional: 60 cc pump: 155 L/min
41 gpm
Rear hitch category (SAE designation) Category 3/3N: 4170 kg
9193 lb

Engine specifications

Description John Deere PowerTech™ PVS
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Engine family HJDXL06.8302
Rated speed 2100 rpm
Aspiration Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 6.8 L
415 cu in.

Engine performance

Rated power 97/68EC: 108 kW
145 hp
Rated PTO power (hp SAE) 83 kW
111 hp
Engine peak torque At 1,600 rpm: 677 Nm
499 lb-ft
PTO torque rise 40 percent

Transmission

Type Standard: 20 Speed AutoQuad PLUS™ ECO (40K)
Optional: 16 speed PowerQuad PLUS™
20 speed AutoQuad PLUS™ (50K)
DirectDrive™ ECO (40K)
Infinitely variable transmission (IVT) 0.050-42 km/h
0.030-26 mph
Infinitely variable transmission (IVT) 0.050-50 km/h
0.030-31 mph

Hydraulic system

Type Closed-center, pressure/flow compensated
Pump rated output Standard: 45 cc pump: 114 L/min
30 gpm
Optional: 60 cc pump: 155 L/min
41 gpm
Available flow at a single rear SCV 100 L/min
26 gpm
Number of rear selective control valves (SCVs) Standard: ISO Couplers: 3
Optional: ISO Couplers: 3-6
SCV control Mechanical

Rear hitch

Hitch category (SAE designation) Category 3/3N: 4170 kg
9193 lb
Sensing type Electrohydraulic

Drawbar

Drawbar category Category 2
Maximum vertical load Category 2: 1400-2450 kg
3085-5400 lb
Maximum vertical load dependent on drawbar position

Rear power take-off (PTO)

Type Independent
Standard: 35 mm (1.375 in) 540, 1000 rpm reversible shaft
Optional: 35 mm (1.375 in) 540, 540E, 1000 rpm reversible shaft
or 35 mm (1.375 in.) 540E/1000/1000E reversible shaft
Engine rpm (at rated PTO speeds) 1967 engine rpm at 540 rpm PTO
1753 engine rpm at 540E rpm PTO
2000 engien rpm at 1000 rpm PTO

Rear axle

Type Standard: 92 x 2550 mm
3.62 x 100.4 in.
Optional: 92 x 2808 mm
3.62 x 110.5 in.
Final drive type Inboard planetary three pinion
Rear differential lock Full-locking electrohydraulic

Front axle

Type Standard: MFWD
Triple link suspension (TLS™)
Front axle differential lock MFWD: limited slip
Triple link suspension (TLS™): limited slip
Triple link suspension (TLS™) with brakes: full-locking electrohydraulic

Tires

Wheel tread range MFWD: 1524-2235 mm
60-88 in.
Triple link suspension (TLS™): 1524-2235 mm

Steering

Type Hydrostatic power

Electrical system

Alternator size Standard: 200 amp
Optional: 240 amp
Battery options 12 V
Total cold cranking amps 1230 CCA
with cold weather package or IVT: 1400 CCA

Operator station

Seat Standard: Air suspension
Optional: Deluxe air suspension
Cab suspension Optional
Instructional seat Optional
Display LCD instrument cluster
Standard: CommandCenter™ display: 178 mm
7 in.
Optional: CommandCenter display: 254 mm
10 in.
Radio Optional
Inner cab volume 3.33 m3
117.59 cu ft
Cab glass area 6.11 m2
65.77 sq ft

Dimensions

Wheelbase 2WD: 2985 mm
117.5 in.
MFWD: 2765 mm
108.8 in.
Front axle center MFWD/TLS™ axle under differential housing w/ 380/85R30 tires: 584 mm
23 in.
Approximate shipping weight, Open;Cab 6560 kg
14462 lb

Weight

Maximum permissible weight 11250 kg
24802 lb

Capacities

Crankcase oil volume 23.5 L
6.2 U.S. gal.
Fuel tank 270 L
71.3 U.S. gal.
Diesel exhaust fluid (DEF) tank 16 L
4.2 U.S. gal.
Cooling system 27 L
7.1 U.S. gal.
Transmission-hydraulic system PowrQuad™/AutoQuad™: 63 L
16.6 U.S. gal.
DirectDrive™ ECO: 75 L
19.8 U.S. gal.
IVT: 62 L
16.4 U.S. gal.

Serviceability

Interval for engine oil change 750 hours
Interval for hydraulic/transmission oil change 1,000 hours
Interval for engine coolant change 6,000 hours

Loaders

Loader 640R
Lift capacity at full height Mechanical self-leveling: measured at 800 mm ahead of pivot: 2148 kg
4736 lb
Non self-leveling: measured at 800 mm ahead of pivot: 1738 kg
3832 lb
Maximum lift height Mechanical self-leveling: bucket level: 4060 mm
160 in.
Non self-leveling: bucket level: 4060 mm
