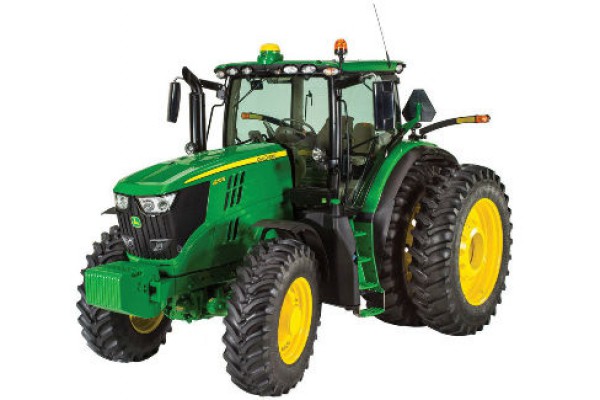

John Deere 6215R

Double tap to zoom



  • Reliable John Deere 6.8L PowerTech™ Final Tier 4 engine
  • Standard 20 Speed AutoQuad PLUS™ transmission or available Direct Drive or Infinitely Variable Transmission
  • ComfortView™ cab for all day comfort



Manufacturer John Deere
Model 6215R FT4
Official Test
Nebraska Test number  2106
Manufacturer  John Deere PowerTech PSS
Engine family  ---
Aspiration  Dual series turbocharger with fixed geometry first-stage, variable geometry second-stage air-to-air aftercooling and cooled exhaust gas recirculation
Cylinders/Displacement, cu. in. (L)  6 / 6.8 L
   6 / 415 cu in.
Cylinder Liners  Wet sleeve
Fuel tank capacity, US Gal. (L) (Open; Cab)  ---
Standard  330 L
   87.1 gal.
Optional  ---
Underhood muffler  Yes
Advertised PTO hp (kW) @ Rated rpm  131 @ 2100 kW
   176 @ 2100 PTO hp
Official PTO hp (kW) @ Rated rpm  135.02 @ 2102 kW
   181.06 rpm
@ Standard PTO @ Eng rpm  151.84 @ 1959 kW
   203.63 rpm
Maximum @ Eng rpm  153.41 @ 1800 kW
   205.72 rpm
Advertised Engine hp (kW) @ Rated speed  158 kW
   215 engine hp
Max Unballast Drwbr hp (kW) @ Eng rpm  129.67 kW
   173.89 rpm
Maximum Torque (PTO) @ rpm, lb-ft (Nm)  927 @ 1301 Nm
   684 ft
Max Torque Rise (80% rtd spd) @ Eng rpm  42 percent
   @ 1681 rpm
Maximum Torque Rise % (PTO) @ Eng rpm  51.20 percent
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm  17.27
Standard PTO Speed @ Eng speed  17.97
Maximum PTO Power @ Eng rpm  18.21
Maximum Engine Power @ Eng rpm  13.6 percent
   @ 1800 rpm
Max Unballasted Drawbar Power @ Eng rpm  129.67 kW
   173.89 rpm
75% Load, Full Engine rpm (Unballasted)  102.05 kW
   136.86 rpm
75% Load @ Reduced rpm (Unballasted)  101.78 kW
   136.49 rpm
Std. Transmission; Forward/Reverse  20-speed AutoQuad PLUS ECO transmission 40 km/h
   20-speed AutoQuad PLUS ECO transmission 25 mph
Opt. Transmission; Forward/Reverse  16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission (50), John Deere Infinitely Variable Transmission (IVT) (0.050 to 42), or John Deere IVT (0.050 to 50), DirectDrive ECO transmission (40) 24X24 km/h
   16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission (31), John Deere Infinitely Variable Transmission (IVT) (0.030 to 26), or John Deere IVT (0.030 to 31), DirectDrive ECO transmission (25) 24X24 mph
Reverser  Left-hand base
On-the-Go Shifting (Yes/No/Partial)  Yes
Clutch; Wet/Dry  Wet
Creeper  Included with IVT
Power Take-Off (PTO)
Standard  ---
Optional  1-3/8-in. 540/540E/1000 reversible shaft; 1-3/4-in. 540/540E/1000 reversible shaft; 1-3/8-in. 540/1000/1000E reversible shaft; 1-3/4-in. 540E/1000/1000E reversible shaft
PTO Speeds @ Engine rpm  1073 @ 2102 rpm
PTO Actuation  Electrohydraulic
Type  Closed-center, pressure/flow compensated
Pump Rated Output, GPM (L/min.)  ---
Standard  155 L/min
   41 gpm
Optional  N/A
Rated Flow @ One SCV, GPM (L/min.)  122.7 L/min
   32.4 gpm
Max Output @ SCV Couplers, GPM (L/min.)  149.3 L/min
   39.4 gpm
Maximum Operating Pressure, psi (kPa)  20,000 kPa
   2900 psi
Maximum Hydraulic Power, hp (kW)  42.9 kW
   57.5 hp
Hitch Draft Control Load Sense Type  Electrohydraulic
Remote Control Valves Available  3-450 Series Mechanical SCVs standard, 3 to 4 electrohydraulic SCVs; 2 or 4 mechanical SCVs are optional
Hitch Category (SAE Designation)  Category 3/3N
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.  ---
OECD  ---
Standard  TBD - Nebraska Test
Optional  N/A
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)  ---
Standard  N/A
Optional  N/A
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)  ---
Standard  N/A
Optional  N/A
Sensing type  Electronic lower link
Joystick SCV control  Mechanical or electronic
Final Drive
Type  Inboard planetary three pinion
Differential controls  Electrohydraulic
Availability  ---
Front  Yes
Front & Rear  Yes
Engage On-the-Go Rear Differential Lock  Yes
Axle Type  Rack and pinion
Brakes, Type and Control  Hydraulic wet disc
Operator Station
Rollover Protective Structure, OOS  N/A
Rigid - Foldable - Telescopic  N/A
Platform - Flat/Straddle  N/A
Gearshift Location - Console/Floor  N/A
Cab  ---
Doors  ---
Platform - Flat/Straddle  ---
dB(A) Rating  69.8 - at no load in 6th gear with front wheel drive engaged
Seat Suspension System  ---
2WD Dimensions
Wheelbase, in. (mm)  ---
Front Tread Range, in. (mm)  ---
Rear Tread Range, in. (mm)  ---
Minimum Rear Tread Setting, in. (mm)  ---
Front Axle Clearance, in. (mm)  ---
Turning Radius w/Brakes, ft (m)  ---
Turning Radius w/o Brakes, ft (m)  ---
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  ---
MFWD Dimensions
Wheelbase, in. (mm)  2800 mm
   110.2 in.
Front Tread Range, in. (mm)  1524 to 2235 mm
   60 to 88 in.
Front Axle Clearance, in. (mm)  607 mm
   23.9 in.
Turning Radius w/Brakes, ft (m)  ---
Turning Radius w/o Brakes, ft (m)  ---
Limited Slip Differential  Yes
Unballasted Operating Weight, lb (kg)  7801 kg
   17,200 lb
Approx. Ship Wgt, lb (kg) Open; Cab  7801 kg
   17,200 lb
4WD Dimensions
Wheelbase, in. (mm)  N/A
Wheel Tread, Min. to Max. in. (mm)  N/A
Turning Radius w/o Brakes, ft (m)  N/A
Nebraska Test Unballasted w/Duals, lb (kg)  N/A
Unballasted Weight, lb (kg)  N/A
Standard Tires
2WD  ---
Front  ---
Rear  ---
MFWD  ---
Front  420/90R30
Rear  480/80R46
4WD  N/A
Track widths  N/A
Country of Manufacture  Waterloo, Iowa, United States
Ballasting Restrictions, lb (kg)  Refer to Operator's Manual
*Notes  Updated - 28 March 2015
