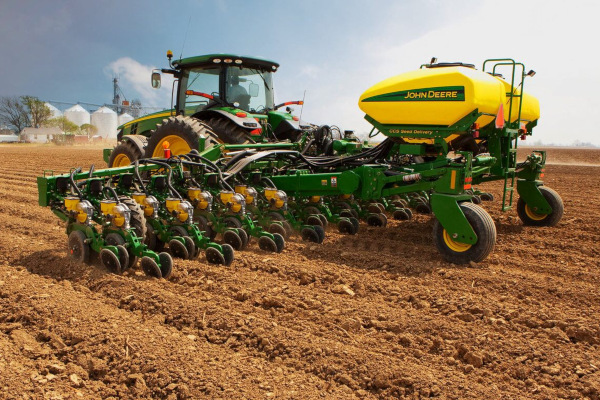

John Deere 1725 CCS Twin Row

Double tap to zoom



Features

  • SeedStar™ XP monitoring system
  • Central Commodity System (CCS™)
  • Seed variable-rate drive
  • RowCommand™ individual-row control system
  • Lift-assist wheel steering
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Number of rows 12x2 Twin Row
Row spacing 91.4 or 96.5 cm
36 or 38 in.
Frame - Fold configuration Stack-folding
Frame - Flexibility Up: 10 degree (angle)
Down: 7 degree (angle)
Row unit seed hoppers Mini-Hoppers
Seed Meters Base
Vacuum

Rows and Row Spacing

Number of rows 12x2 Twin Row
Row spacing 91.4 or 96.5 cm
36 or 38 in.

Frame

Fold configuration Stack-folding
Flexibility Up: 10 degree (angle)
Down: 7 degree (angle)

Lift System

Type Semi-integral only

Tires

Base 12.5L-15SL 20 ply implement: 303 kPa
3.0 bar (44 psi)
7.60-15 8 ply implement: 359 kPa
3.6 bar (52 psi)
7.6-15 6 ply - traction: 276 kPa
2.8 bar (40 psi)

Row Units

Type ExactEmerge™ row units
MaxEmerge™ 5 row units
or MaxEmerge 5e row units
Opener Tru-Vee Double Disk
Row unit seed hoppers Mini-Hoppers
Row unit down force Adjustable heavy-duty
----

Seed Meters

Base Vaccum
Central Commodity System Seed capacity
Two CCS™ bulk tanks each with capacity of: 1762 L
50 bu

Drive System

Base 56 V electric drive

Seed Monitor System

Base SeedStar™ electronic system

Additional Information

Recommended tractor horsepower Vaccum system hydraulic drive: horsepower required: 4.5-10.4 kW
6-14 hp
Minimum tractor size: 201 kW
270 hp
Tractor recommendation: Currrent model (minimum) 8430 MFWD with dual rear tires and 20 front weights.
Recommended tractor hydraulics Hydraulic oil required to operate the planter: 227 L/min
60 gpm
Hydraulic system standby pressure: 15,513 kPa
155 bar (2250 psi)
Hydraulic system working pressure: 20,684 kPa
207 bar (3000 psi)
Hydraulic system burst pressure: 82,737 kPa
827 bar (12,000 psi)
