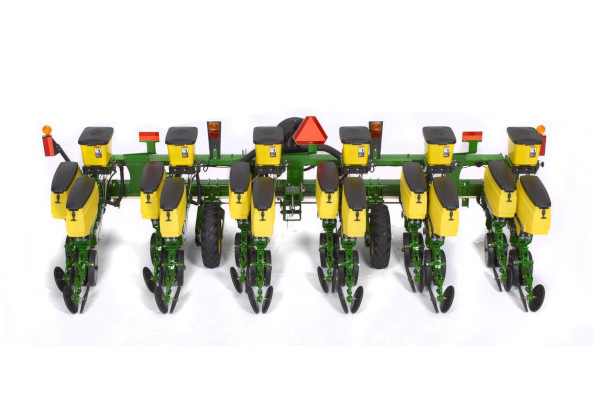

John Deere 1705 Twin Row

Double tap to zoom



Features

  • SeedStar™ 2 monitoring system gives integrated innovation
  • 1705T downforce options
  • Seed variable-rate drive provides the ultimate planting productivity
  • Vacuum system
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Number of rows 6 twin rows
Row spacing 91 or 96 cm
36 or 38 in.
Frame - Fold configuration Rigid
Frame - Flexibility None
Row unit seed hoppers Capacity
58 or 106 L
1.6 or 3 bu
Seed Meters Base
Vacuum

Rows and Row Spacing

Number of rows 6 twin rows
Row spacing 91 or 96 cm
36 or 38 in.

Frame

Fold configuration Figid
Flexibility None

Lift System

Type Integral or Semi-integral

Tires

Base 7.60-15 6 Ply - Traction: 280 kPa
2.8 bar (40 psi)
7.60-15 8 Ply - Traction: 359 kPa
3.6 bar (52 psi)

Row Units

Type MaxEmerge™ 5 row unit
Opener Tru-Vee Double Disk
Row unit seed hoppers Capacity
58 or 106 L
1.6 or 3 bu
Seed tube sensors
Optional
--

Seed Meters

Base Vacuum

Drive System

Base Ground driven or hydraulic driven

Markers

Type Automatic alternating or independent control

Dimensions

Transport width (with markers) 5.9 m
19.25 in.
Transport height 2.4 m
8 ft

Additional Information

Recommended tractor hydraulics Hydraulic oil required to operate the planter: 5.7 L
1.5 gal.
Hydraulic system working pressure: 20,684 kPa
207 bar (3000 psi)
Hydraulic system burst pressure: 82,737 kPa
827 bar (12,000 psi)
