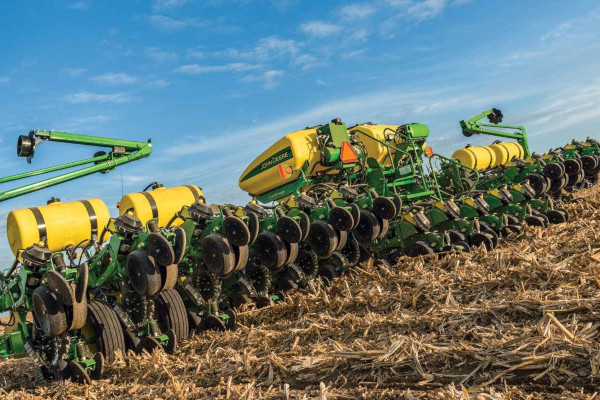

John Deere 1795 16Row Split 31 or 32
Drawn Planters 1795 16Row Split 31 or 32
Overview:
• 40-ft. toolbar with 16 rows on 30-in. spacing
• Can also be configured as 31-row split row in 15-in. spacing or even row of 32 rows
• Available with optional ExactEmerge™ or MaxEmerge™ 5e row unit or standard in mini-hopper MaxEmerge™ 5 row unit
• 3-section frame flexes 15 degrees up & down with narrow transport of 12 ft.
Share This Product:
Features
- Precise liquid fertilizer placement with ExactRate™ fertilizer system
- Increase productivity with ExactEmerge™ trench delivery system and BrushBelt™ delivery system
- Dual 56-V electric motors for ExactEmerge™ row-units
- SeedStar™ 4HP monitoring system – see speed meet accuracy in real time
- Increase job performance when planting and spraying
- Mobile row-unit runoff
- Downforce system options
- Pneumatic closing wheels
- John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
Specifications
Key Specs
| Number of rows | 31 or 32 |
| Row spacing | 31R15 and 32R15: 38 cm 15 in. |
| Frame - Flexibility | Up and down: 15 degree (angle) |
| Row unit seed hoppers | Capacity Vacuum meter: 2.2 L 0.62 bu |
| Seed Meters | Base Vacuum |
Rows and Row Spacing
| Number of rows | 31 or 32 |
| Row spacing | 31R15 and 32R15: 38 cm 15 in. |
Frame
| Flexibility | Up and down: 15 degree (angle) |
Lift System
| Type | Wheel modules with rephasing hydraulic cylinders |
Tires
| Base | Fertilizer contact drive tire: 18x9.56-8 4PR: 193 kPa 1.93 bar (28 psi) Center grame tires (4 per machine): 31R15,32R15, 24R20, 23R15and 24R15 with fertilizer: 11R22.5 TL LR F: 414 kPa 4.14 bar (60 psi) Wing tires (4 per machine): 10x15 LR D: 279 kPa 2.758 bar (40 psi) |
Row Units
| Type | Standard: MaxEmerge™ 5 row units Optional: ExactEmerge™ row units MaxEmerge 5e row units |
| Opener | Tru-Vee Double Disk |
| Row unit seed hoppers | Capacity Vacuum meter: 2.2 L 0.063 bu |
Seed Meters
| Base | Vacuum |
| Central Commodity System | Seed capacity 2467 L 70 bu 3524 L 100 bu |
Drive System
| Base | 56 V Electric motors |
Markers
| Type | Automatic alternating or independent control |
Seed Monitor System
| Base | SeedStar™ on GreenStar™ displays |
Dimensions
| Transport width (with markers) | 31R15 and 32R15: 4.01 m 13.17 ft |
| Transport length | 31R15 and 32R15: 10.46 m 34.33 ft |
| Transport height | 31R15 and 32R15: 3.96 m 13 ft |
| Field operation width | 31R15 and 32R15: 13.0 m 42.81 ft |
| Field operation length | 31R15 and 32R15: 7.7 m 25.34 ft |
Additional Information
| Recommended tractor horsepower | Minimum required for 9.1 m (30 ft) models: 201 kW 270 hp Minimum required for 12.2 m (40 ft) models: 268 kW 360 hp |
| Recommended tractor hydraulics | Hydraulic oil pump required to operate ExactEmerge™ planter: 227 L/min 60 gpm Tractor standby pressure: 15,500 kPa 155 bar (2300 psi) Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi) Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi) |
