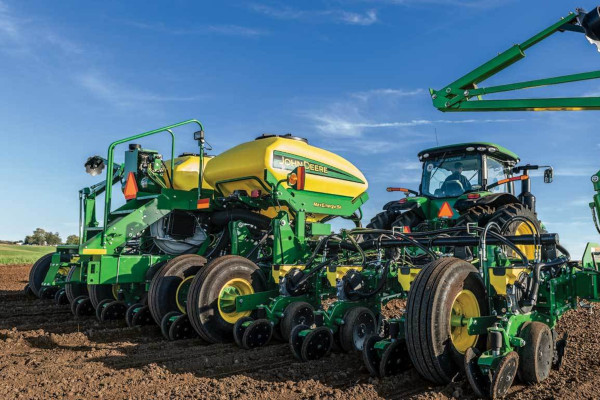

John Deere 1775NT 12Row30

Double tap to zoom



Features

  • Precise liquid fertilizer placement with ExactRate™ fertilizer system
  • Increase productivity with ExactEmerge™ trench delivery system and BrushBelt™ delivery system
  • SeedStar™ 4HP monitoring system – see speed meet accuracy in real time
  • Downforce system options
  • Increase job performance when planting and spraying
  • Mobile row-unit runoff
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs
Number of rows 12
Row spacing 76 cm
30 in.
Frame - Flexibility Up and down: 21 degree (angle)
Row unit seed hoppers Capacity
58 or 106 L
1.6 or 3 bu
Seed Meters Base
Vacuum
Finger pickup
Optional
Rows and Row Spacing
Number of rows 12
Row spacing 76 cm
30 in.
Frame
Flexibility Up and down: 21 degree (angle)
Lift System
Type Wheel modules with hydraulic cylinders
Tires
Base 9.5L x 15 8PR implement tire
16 x 6.5 8PR seed and fertilizer drive tire
Row Units
Type Standard: MaxEmerge™ 5 row units
Optional: ExactEmerge™ row units
MaxEmerge 5e row units
Opener Tru-Vee™ Double Disk
Row unit seed hoppers Capacity
58 or 106 L
1.6 or 3 bu
Seed Meters
Base Vacuum
Finger pickup Optional
Radial bean meter Optional
Central Commodity System Seed capacity
2466.7 L
70 bu
Drive System
Base Contact drive or hydraulic variable rate drive
Markers
Type Automatic alternating or independent controlled
Dimensions
Transport width (with markers) 3.7 m
12 ft
Transport length 9 m
29.5 ft
Transport height 3.8 m
12.5 ft
Transport weight Average empty weight: 5400 kg
11,900 lb
Field operation width 9.6 m
31.58 ft
Additional Information
Recommended tractor horsepower Minimum tractor size required: 90 kW
120 PTO hp
Operating with extra planter attachments or when planting in soft seedbeds and rolling ground, more tractor power is required.
Recommended tractor hydraulics Hydraulic oil required to operate machine: 5.7 L
1.5 gal.
Hydraulic system working pressure: 20,684 kPa
206.84 bar (3000 psi)
Hydraulic system burst pressure: 82,737 kPa
827.37 bar (12,000 psi)
Tractor standby pressure: 15,514 kPa
155.14 bar (2250 psi)
