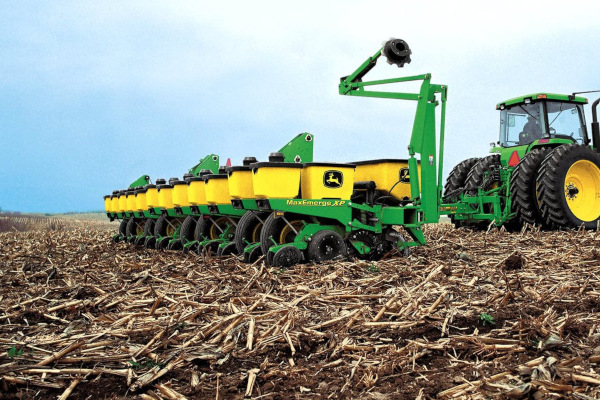

John Deere 1775 Flex
Drawn Planters 1775 Flex
Overview:
• 12 rows on 30-in. spacing
• Available in 1.6-bu. or 3-bu. MaxEmerge™ 5 row unit
• Insecticide option for 1.6-bu.
• 2-section frame flexes 20 degrees up & 30 degrees down
Share This Product:
Features
- Advance with MaxEmerge™ 5 advantages
- SeedStar™ 2 monitoring system gives integrated innovation
- Row cleaner options to meet residue management needs
- RowCommand™ individual-row control system
- Seed variable-rate drive provides the ultimate planting productivity
- Seed variable-rate drive (VRD) with half- or three-width disconnect
- Granular fertilizer systems
- Tire contact drive system
- John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
Specifications
| Model | John Deere 1775 Flex Drawn Planter |
| ROWS AND ROW SPACING | |
| Number of rows | 12 |
| Row spacing | 30 in. (76 cm) |
| FRAME | |
| Fold configuration | Front-fold |
| Frame tube size | 7 x 7 in. (17.8 x 17.8 cm) |
| Fold-and-go from tractor cab | Manual wing lock pin |
| Flexibility | 2-section flex frame, 20 degrees up, 30 degrees down |
| HITCH | |
| Base | Two point hitch for Cat.II or Cat.III with Quick Coupler only |
| Optional | NA |
| Rear hitch | NA |
| LIFT SYSTEM | |
| Type | Wheel module |
| Number of cylinders | 8 |
| TIRES | |
| Base | 9.5L x 15 in. F1 load range D |
| Optional | NA |
| Quantity | 8 |
| ROW UNITS | |
| Depth gauging | (2) semi-pneumatic wheels - 4 1/2 x 16 in. |
| Adjustment | T-handle, 1/4 to 4 depth in 1/4 increments in. |
| Walking wheels | Optional |
| Row unit seed hoppers | Capacity: 0.06 or 0.11 m3 (1.6 or 3.0 bu) Material: 1.6 - polyethylene or 3.0 - roto-molded plastic bu |
| Row unit down force | Non-adjustable (4 springs: 180 lb Adjustable heavy-duty 4 settings: 0, 125, 250, 400 lb Pneumatic Base, Infinitely adjustable to 400 lb Base equipment |
| Scrapers, opener blades | Plastic rotary NA Steel straight blade Optional Heavy-duty Optional Optional |
| Seed tube sensors | Optional Standard Base |
| SEED METERS | |
| Base | Vacuum |
| Optional | Plateless |
| Finger pickup | Optional |
| Radial bean meter | |
| Central Commodity System | Seed capacity NA NA |
| DRIVE SYSTEM | |
| Base | Tire contact |
| Optional | 1 or 2 motor hydraulic variable rate drive |
| Number of drive wheels | 1 for seed transmission and 1 for dry fertilizer |
| Drive wheel disconnect | Automatic |
| Counter shaft | 7/8 hex in. |
| Drill shaft | 7/8 hex in. |
| Seed transmission | Tire contact |
| Transmission combinations | 50 sprocket combinations |
| MARKERS | |
| Type | Tri-fold |
| Control | Base Independent of lift Optional Connected to lift Independent of lift or connected to lift |
| Marker disk | Base Notched w/depth gauging band - 16 in. Optional Marker arm gauge wheel |
| Shear bolt protection | Base equipment |
| Less marker option | Optional |
| CLOSING SYSTEM | |
| Rubber tire closing system | Wheels: 2) rubber tires w/nylon wheel - 1 x 12 in. Position: In-line or staggered Adjustment: T-handle Down force: 5 position 0-145 lb Alignment: Adjustable side to side Base |
| Cast iron closing system | Wheels: (2) cast iron wheel - 1 x 12 in. Position: In-line or staggered Adjustment T-handle Optional |
| HERBICIDE AND INSECTICIDE | |
| Insecticide only hopper | Optional -- capacity, 70 lb |
| Herbicide only hopper | NA |
| Insecticide and herbicide hopper | Optional -- split hopper, each side - 35 lb |
| LIQUID INSECTICIDE SYSTEM | |
| System available | NA |
| Tank capacity | NA |
| TILLAGE ATTACHMENTS | |
| Unit-mounted coulter | Optional |
| Frame-mounted coulter | Optional |
| Bubble blade | Optional |
| Row tillage support hanger | Optional |
| V-wing bed sweeps | NA |
| Row cleaner - unit-mounted DD fert. opener | Optional |
| FERTILIZER | |
| Onboard / towed / tractor tanks | NA |
| Tank capacity | NA |
| Fixed-rate application | NA |
| Variable-rate application | NA |
| Pump type | NA |
| Pump rate | NA |
| Fertilizer opener type | Frame-mounted NA Unit-mounted NA |
| Flow divider distribution system | NA |
| Pressure manifold distribution system | NA |
| Dry fertilizer | Number of hoppers:6 Hopper capacity: 550 lb Base equipment |
| DIMENSIONS | |
| Transport width (with markers) | 15, 2 ft, in. |
| Transport length | 29, 6 ft, in. |
| Transport height | 11.25 ft, in. (3.4 m ) |
| Transport weight | 11900 lb |
| AG MANAGEMENT SOLUTIONS | |
| Map-based seeding | Optional |
| Field documentation | Optional |
| Parallel tracking | Optional |
| ADDITIONAL INFORMATION | |
| Recommended tractor horsepower | 120 - less fertilizer, 140 - w/fertilizer hp |
| Recommended tractor hydraulics | 15514 maximum kPa(2250 maximum psi) |
| Warranty length | 1 year |
