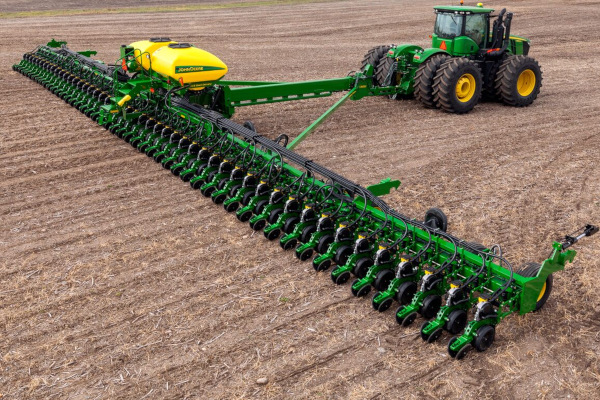

John Deere DB88 48Row22

Double tap to zoom



Features

  • SeedStar™ 4HP monitoring system – see speed meet accuracy in real time
  • RowCommand™ individual-row control system
  • Seed variable-rate drive (VRD) with half- or three-width disconnect
  • DB fertilizer options
  • Mobile row-unit runoff
  • Downforce system options
  • Easy Adjust row cleaners
  • Pneumatic closing wheels
  • Achieve accuracy with Curve Compensation
  • Row cleaner options to meet residue management needs
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Number of rows 48
Row spacing 56 cm
22 in.
Row unit seed hoppers Capacity
Vacuum meter: 2.2 L
0.062 bu
Seed Meters Base
Vacuum

Rows and Row Spacing

Number of rows 48
Row spacing 56 cm
22 in.

Lift System

Type Wheel modules with rephasing hydraulic cylinders

Tires

Base Center frame tires: 400/500-R22.5: 552 kPa
5.5 bar (80 psi)
Center frame tires: 600/50R22.5: 379 kPa
3.8 bar (55 psi)
14-Ply Center frame tires: 31-13.5x15 621 kPa
6.2 bar (90 psi)
Center Frame Tires (DB74-DB88 planters): 445/50R22.5: 522 kPa (5.5 bar) [80 psi]
6-Ply wing frame implement tires: 31-13.5x15: 152 kPa (1.5 bar) [22 psi]
8-Ply Wing frame skid steer tires: 31-13.5x16.5: 241 kPa (2.4 bar) [35 psi]

Row Units

Type ExactEmerge™ row units
MaxEmerge™ 5 row unit
or MaxEmerge 5e row units
Opener Tru-Vee Double Disk
Row unit seed hoppers Capacity
Vacuum meter: 2.2 L
0.062 bu

Seed Meters

Base Vacuum
Central Commodity System Seed capacity
3524 L
100 bu
With Refuge plus option: 4405 L
125 bu

Drive System

Base 56 V Electric motors

Markers

Type Automatic alternating or independent control

Seed Monitor System

Base SeedStar™ electronic system

Fertilizer

Tank capacity 499 Imperial gal.
2271 L
600 U.S. gal.

Dimensions

Transport weight Average empty weight: 18,552 kg
40,900 lb

Additional Information

Recommended tractor horsepower Requires a minimum 261 kW
350 hp
tractor equipped with Category 4 drawbar
Recommended tractor hydraulics Hydraulic oil pump required to operate electric drive planter: 227 L/min
60 gpm
Tractor standby pressure: 15,500 kpa
155 bar (2300 psi)
Hydraulic System Working Pressure: 20,684 kPa
207 bar (3000 psi)
Hydraulic system burst pressure: 82,737 kPa
827 bar (12,000 psi)
