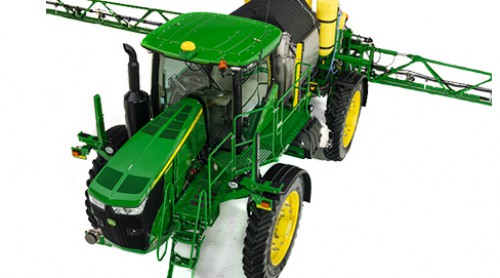

John Deere R4045

John Deere R4045 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Self-Propelled Sprayers


  • 1,200 gal (4,500L) tank
  • Direct injection product mixing option
  • Load Command™ option
  • Dry spinner compatibility increases versatility
Model R4045
Peak rated power 258 kW
346 hp
Emissions Final Tier 4
Number of cylinders 6
Displacement 9.0 L
549 cu in.
  549 cu in.
Alternator 200 amp
Fuel tank capacity 586.7 L
155 gal.
Diesel exhaust fluid (DEF) tank capacity 29.5 L
7.8 gal.
Solution system
Capacity 4542 L
1200 gal.
Tank material Stainless steel
Rinse tank capacity 646 L
170 gal.
Quick fill size 7.6 cm
3 in.
Automatic section control John Deere Section Control (optional)
Solution system control Automatic (optional) or manual
Fill location Side, opt. front, LoadCommand
Chemical injection method Direct injection (optional)
Chemical eductor Stainless steel
Chemical eductor capacity (size) 32 L
8.5 gal.
Flow meter size 5.1 cm
2 in.
Suction strainer 20 mesh
Pressure strainer 50 mesh
Boom strainer 80 mesh
Rate control make
Boom length options 27, 30, 36 m
90, 100, 120 ft
Automatic boom height BoomTrac Pro -5 sensor (optional)
Plumbing material Stainless, polypropylene
Ground height adjustment 50 - 245 cm
19.6 - 96.5 in.
Breakaway width 3.3 m
10.8 ft
Boom sections 7, 9, 11 ft
Type Hydrostatic
Drive Full-time 4WD
Shifting Electrohydraulic
Hydraulic reservoir capacity 98.4 L
26 gal.
Spray speed range 40 km/h
25 mph
Transport speed, maximum 56 km/h
35 mph
Dry compatible Yes - 200, 300 cu ft
Suspension Dual strut independent wheel air-ride suspension
Crop clearance with standard tires 147 cm
58 in.
Front tires 380/105 R50, 420/95 R50, 480/80 R50
Rear tires 380/105 R50, 420/95 R50, 480/80 R50
Flotation tires 620/70 R46, 800/55 R46
Hydraulic tread adjust Hydraulic
Wheel tread spacing 305-406 cm
120-160 in.
Wheel base 430 cm
169.3 in.
Turning radius 9.2 m
30.2 ft
Parking brake Spring-engaged, hydraulic-disengaged wet- disk pack
Primary brakes Hydrostatic
Ladder raise/lower Hydraulic
Total weight with 80-ft boom N/A
Total weight with 90-ft boom 16,068 kg
35,350 lb
Total weight with 100-ft boom 16,146 kg
35,521 lb
Total weight with 120-ft boom 16,400 kg
36,080 lb
Air compressor Onboard air (standard)
Foam marker capacity Injection Foamer
Remote service tools
