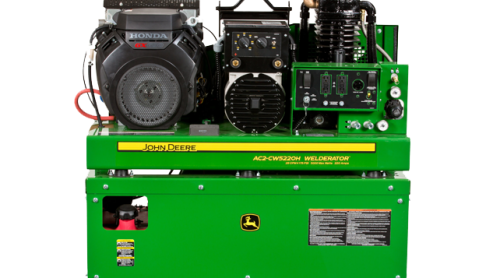

John Deere AC2-CW5220H Welderator™ (Stationary)

John Deere AC2-CW5220H Welderator™ (Stationary) for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Welderator™



  • Industrial Honda OHV engine (Electric start, without battery and cables)
  • 3 year limited engine warranty

Generator Mode

  • AC current only
  • Selector switch set to idle down - engine will idle down when generator is not in use and tank pressure is 175 PSI
  • Switch is set to full throttle - engine will run full throttle continuously

Welder Mode

  • DC current only
  • Selector switch must be set to full throttle

Compressor Pump

  • Quality two stage compressor
  • Splash-lubricated cast iron crankcase
  • Durable stainless-steel braided discharge hose
  • Quality pilot valve unloader

Generator

  • Brush-type 2 pole 120V/240V alternator
  • Industrial 5000 max watt generator

Welder

  • 220 DCA arc welder
  • Amperage selection switch

Frame

  • Powder coated ASME coded 20-gallon receiver tank
  • 1/4-inch base plate to reduce vibration

Components

  • Regulator and two gauges for tank and outlet pressure
  • Manual drain valves for proper maintenance
  • 10-gallon fuel tank capacity
Model/Part No. AC2-CW5220H
Engine
Power Source Gasoline
Honda OHV 688cc
Rated Speed 3,600 RPM
Compressor
CFM @ 175 PSI 29.0 (Equipped with 150-PSI maximum rated regulator)
Generator
Max. AC Output 5000 watts
Rated AC Output 4500 watts
Welder
Duty Cycle (10 min. run time) 220A @ 40%, 190A @ 60%, 150A @ 100%
DC Voltage 50-220A working range
Miscellaneous
Measurements 47"L x 24"W x 50"H
Net Weight 803 lbs.
