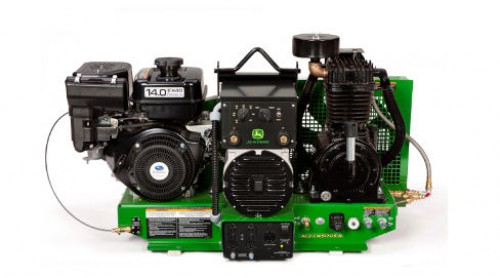

John Deere AC2-CW5170S-B Welderator™ (Stationary - Base Mount)

John Deere AC2-CW5170S-B Welderator™ (Stationary - Base Mount) for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here



  • Industrial Subaru OHC/OHV engine (Electric start, without battery and cables)
  • 3 year limited engine warranty

Generator Mode

  • AC current only
  • Selector switch set to idle down - engine will idle down when generator is not in use and tank pressure is 175 PSI
  • Switch is set to full throttle - engine will run full throttle continuously

Welder Mode

  • DC current only
  • Selector switch must be set to full throttle

Compressor Pump

  • Quality two stage compressor
  • Splash-lubricated cast iron crankcase
  • Durable stainless-steel braided discharge hose
  • Quality pilot valve unloader


  • Brush-type 2 pole 120V alternator
  • Industrial 5000 max watt generator


  • 170A arc welder
  • Amperage selection switch


  • Powder coated ASME coded 30-gallon receiver tank
  • 3/16-inch base plate to reduce vibration


  • Regulator and two gauges for tank and outlet pressure
  • Manual drain valves for proper maintenance
Model/Part No. AC2-CW5170S-B
Power Source Gasoline
Subaru OHC/OHV 404cc
Rated Speed 3,600 RPM
CFM @ 175 PSI 15.7 CFM
Max. AC Output 5000 watts
Rated AC Output 4500 watts
Cont. On-load @ 100 PSI 3000 watts
Cont. On-load @ 150 PSI 2500 watts
Frequency 60 hertz
Max. Amps (120V) 41.5 off-load
Cont. Amps (120V) 37.5 off-load
Receptacles (2) 120V, 20A GFCI duplex; 120V/240V 20A twist lock
Duty Cycle (10 min. run time) 150A @ 100%
DC Voltage 50-170A working range
Measurements 46"L x 22"W x 47"H
Net Weight 585 lbs.
