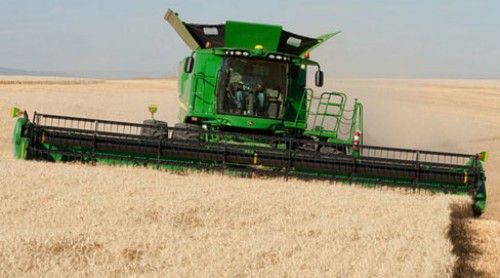

John Deere 630D

John Deere 630D for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

600D Draper Platforms


  • Windrowing capability with 600D Drapers
  • Dual-knife drive system is timed
  • Cutterbar is closer to the ground
  • Stainless-steel feed floor
Model 630D
Type Straight line knife drive system
Length, ft. (m) 30.5-ft (9.30m)
Knife drive Dual Knife base; single optional (for combine use only)
Knife speed 520 cycles/min
Cutterbar tilt Base hydraulic (9 degrees tilt max)
Pickup Reel
Number of slats 6 bat poly base; 6 bat steel optional
Fingers Nylon base; steel optional
Diameter, in. (mm) 42-in (1067mm)
Height control Hydraulic
Speed control Hydraulic
Reel lift, in. (mm) 13.0-in (330mm) Cylinder stroke; 15.4-in (391.5mm) Total Range
Reel fore and aft, in. (mm) 14.1-in (359mm) Cylinder stroke; 24.4-in (620mm) Total Range
Reel resume Base
Reel reverse Base
Operating speeds, rpm 6-54 rpm
Operating speeds, rpm (54-in. reel) ---
Slat Reel
Number of slats ---
Diameter, in. (mm) ---
Height control ---
Speed control ---
Operating speeds, rpm ---
Draper Belts
Width, in. (mm) Side belts 40-in; Center belts 55-in; Center belt not included with SPW configuration
Clean height, in. (mm) 1-in (25.4mm)
Operating speed, ft./min. (m/min.) Side belts: Variable up to 735-ft/min (223m/min); Center belts: 695-ft/min (212m/min); Center belt not included with SPW configuration
Speed control Hydraulic from cab
Center belt reverse Base; Center belt not included with SPW configuration
Feed Drum
Diameter, in. (mm) 16-in (406mm); Feed drum not included with SPW configuration
Feed drum fingers Heavy duty round 5/8-in (16mm) diameter with breakaway notch and retainer
Number of fingers 18
Auger finger platform Dual Chevron, retracting
Finger reach, in. (mm) 6-in (195mm)
Drum/auger reverse Base
Operating speed, rpm 195 rpm
Center clean out door Base
Header Height Sensing
Type Electro-hydraulic base
Header height sensing on the ground Base
Header height sensing off the ground Base
Auxiliary Top Auger
Type Optional; hydraulic drive
Platform length, ft. (m) 32.9-ft (10.03m)
Overall operating depth, ft. (m) 8.2-ft (2.5m)
Transport width, field position, ft. (m) 32.5-ft (9.91m)
Transport width on wheel, less dividers, ft. (m) 8.9-ft (2.71m)
Transport length, hitch extended, ft. (m) 40.4-ft (12.31m)
Approximate weight (slat reel), lb. (kg) ---
Approximate weight (pickup reel), lb. (kg) 6855 lb (3109kg) Combine Only; 5532 lb (2509kg) SPW Only
Approximate weight (with transport) lb (kg) 7,245 lb (3286kg) Combine Only; 5922 lb (2686kg) SPW Only
Approximate weight (optional 54-in. reel) lb (kg) ---
