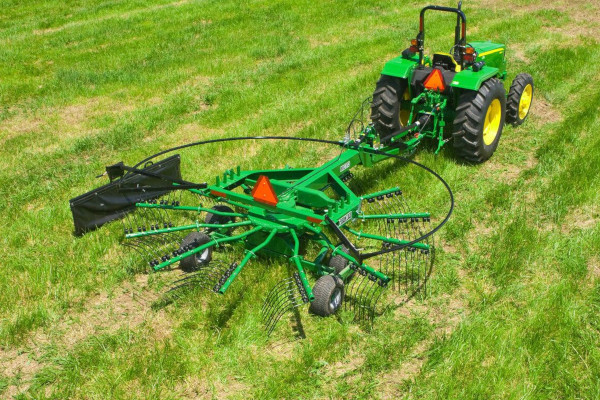

John Deere RR2313

Double tap to zoom



Features

  • Cam-action tine arms
  • Rake adjustments are easy
  • Rugged 13-arm rotor with adjustable cam
  • Tandem flotation tires, dual gauge wheels, and tandem walking beam axle
  • Adjustable swath curtain
  • Hydraulically adjustable swath curtain for rear rotor
  • Two rotors rake one large or two smaller windrows in a single pass
  • Extra flotation tires for RR23 Rotary Rakes

Specifications

Dimensions

Working width 4.57 m
15 ft
Overall working width 4.93 m
16.17 ft
Transport width 2.49 m
8.17 ft
Overall transport length 5.59 m
18.33 ft
Raking width 3.96 m
13 ft

Weight

Implement 953 kg
2,100 lb

Tractor compatibility

PTO hp requirements 29.8 kW
40 hp
PTO requirement rpm 540 rpm
Hydraulic pressure requirement 9,653 bar
1,400 psi
Number of SCVs One

Hitch

Type Drawbar

Axle

Type Tandem walking beams

Wheels

Type Flotation
Quantity Four
Size, diameter 46.99 cm
18.5 in.

Tine arms

Quantity 13
Quantity of double tines per arm Four
Size 5.1 cm
2 in.
Removable Yes

Swath screen

Type HD Vinyl curtain

Safety and markings

Safety tow chains Standard

Shipping information

Quantity Single

Set-up time

Labor hours 1

Warranty

Time period 1 year for ag and residential use
90 days for commercial use
