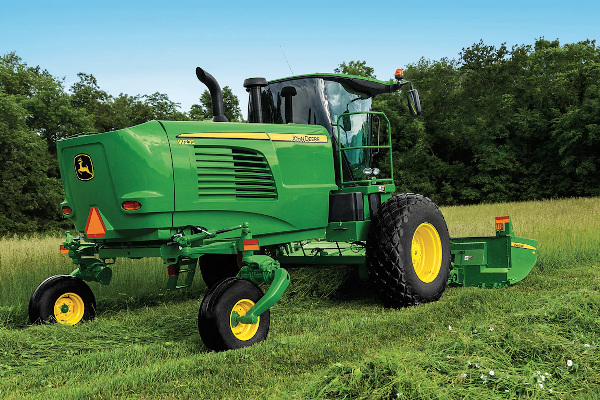

John Deere W235

Double tap to zoom



Features

  • Flexible cab options
  • Better visibility means better harvesting
  • Optimize machine settings with CommandARM™ controls and CommandCenter™ Display
  • Efficient cooling packages control engine and oil temperatures
  • Heavy-duty drive pumps and final drives provide power for any terrain
  • Fuel from the ground with ease
  • Consistent cutting and windrow formation with constant header speed
  • Smoother ride and better control with IntelliAxle™ steer assist
  • Maximize productivity with integrated AutoTrac™ assisted steering system
  • Improved cut quality with independent platform float suspension

Specifications

Key Specs

Engine - Model 6.8L PVS Final Tier 4
Horsepower At 2,400 rpm: 175 kW
235 hp
Ground drive - Type Two-speed hydrostatic
Fuel - Capacity 568 L
150 U.S. gal.
DEF: 26.5 L
7 U.S. gal.
Low range 24.1 km/h
15 mph
High range 2 speed / Mid range 3 speed 33.8 km/h
21 mph
Vehicle Large drive tires and suspended rear axle in base
Seat Air suspension, swivel fore-aft attenuation
Under frame clearance 1,120 mm
44 in.
Weight - Total 7303 kg
16100 lb

Engine

Model 6.8L PVS Final Tier 4
Horsepower At 2,400 rpm: 175 kW
235 hp
No. of cylinders Six
Exhaust direction Vertical
Engine displacement 6.8 L
414 cu in.
Engine speeds Low idle
900 rpm
Variable idle
Electronic adjustable from 1,700 to 2,450 rpm
High idle (no load)
2,450 rpm
Rated speed
2,400 rpm
Oil crankcase capacity (with filter) 31.4 L
33.2 U.S. qt
Cooling system 49.2 L
52 U.S. qt

Ground drive

Type Two-speed hydrostatic

Hydraulic platform drive

Number of pumps (Rotary/Auger) One
Number of motors (Rotary/Auger) One
Pump displacement 89 cm3
5.43 cu in.
Motor displacemen
Per revolution: 75.4 cm3
4.6 cu in.

Platform float system

Type Hydraulic piston accumulator

Final drives

Type Planetary double reduction heavy duty
Ratio 36.8:1

Brakes

Type / Activation Parking brake automatically engages and disengages; integrated into hydro handle

Hydraulics

Reservoir capacity 94.5 L
25 U.S. gal.

Fuel

Capacity 568 L
150 U.S. gal.
DEF: 26.5 L
7 U.S. gal.

Electrical system

Alternator 240 amp
Battery Heavy-duty 12 V

Tires

Drive wheel standard 520/80R38 radial bar
Drive wheel option Bias button, 480/80R38 149A8 R1 radial bar (required on 994-4m platform)
Caster wheels 14Lx16.1 8-ply ribbed

Speeds

Low range 24.1 km/h
15 mph
High range 2 speed / Mid range 3 speed 33.8 km/h
21 mph

Suspension

Vehicle Large drive tires and suspended rear axle in base
Cab Large drive tires for smooth ride

Cab

Construction Uni-body, welded
Glass 7.08 m2
76.2 sq ft
Seat Air suspension, swivel fore-aft attenuation
Steering column Single-tilt telescoping or dual-tilt telescoping
Instructional seat Standard
Windshield wiper Single-blade or dual-blade
Air conditioner Refrigerant
R134a
Capacity
2.7 kg
6 lb
Filters
Dry type, reusable
Compressor
Rotary
Overload protection
Low-pressure and high-pressure cutoff
Standard with automatic temperature control

Lights

Front Standard: six or eight halogen
Optional: four halogen and four HID
Side Four optional
Back Two halogen standard
HID Optional four front

Display and input

Type Electronic touch and no touch option

Dimensions (with platform installed)

Overall length without platform 5,900 mm
225.5 in.
Overall height 3,760 mm
148 in.
Under frame clearance 1,120 mm
44 in.
Wheelbase 3,400 mm
142 in.
Tread width 3,710 mm
146 in.
Turning radius

Weight

Without platform, full fuel
Front axle 4698 kg
10357 lb
Rear axle 2605 kg
5743 lb
Total 7303 kg
16100 lb

Warranty

Manufacturer's warranty Full machine: 1 year
Engine: 2 year; 2,000 hours
