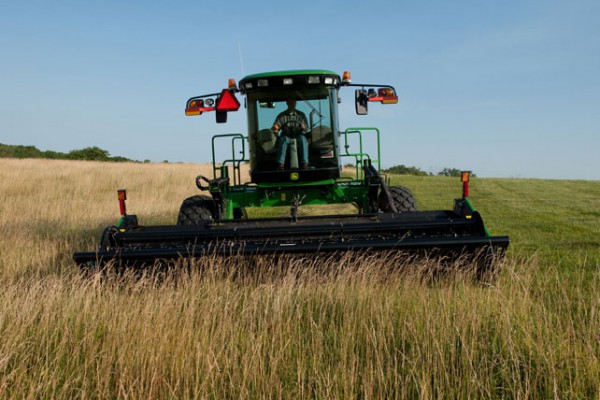

John Deere 160A Grass Seed

Double tap to zoom



  • Heavy-duty knife drive and cutterbar for increased reliability
  • Adjustable reel-cam track to control crop release
  • Heavy-duty multi-bat reel and center-feed auger improves crop flow
  • Optional reverser clears plugs effortlessly


Manufacturer John Deere
Model 160A
Compatibility  W110 and W150 Windrowers
Formation  Adjustable swathboard (plus adjustable forming shields on windrower)
Drive  Timed dual knife
Speed  Variable, 1450 - 1900 spm
Guards  Two-tine, double heat treated forged pointed guards, Non-clog guards optional
Knife (chrome)  Over-serrated, 9 serrations per inch or 14 serrations per inch available
Mechanical driven reel
Adjustable  ---
Tooth bars  ---
Speed  ---
Diameter  ---
Drive  ---
Hydraulically driven, variable-speed reel
Adjustable  Up and down, fore and aft
Tooth bars  Six sectioned with regreasable bearings and six reel bats w/ end caps, 7th bat available for dealer inst.
Variable speed  51-85 rpm
Diameter  1080 mm
   44 in.
Drive  Hydraulic
Diameter  508, single auger mm
   20, single auger in.
Upper  ---
Lower  ---
Drive  Hydraulic direct -drive
Upper  ---
Lower  ---
Speed  230 - 320, variable hydraulic rpm
Upper  ---
Lower  ---
Urethane conditioner rolls
Type  ---
Diameter  ---
Speed  ---
Length  ---
Drive  ---
Angled-steel conditioner rolls
Type  Intermeshing steel rolls
Diameter  233 mm
   9.17 in.
Speed  601 - 790, variable hydraulic rpm
Length  2590 mm
   102 in.
Drive  Hydraulic motor to enclosed gearbox
Platform cutting width  4.95 m
   16, 3 ft, in.
Platform overall width  5.41 m
   17, 9 ft, in.
Platform weight  2656 kg
   5850 lb
Windrow width (depending on crop conditions)  915 - 2540 mm
   36 - 100 in.
