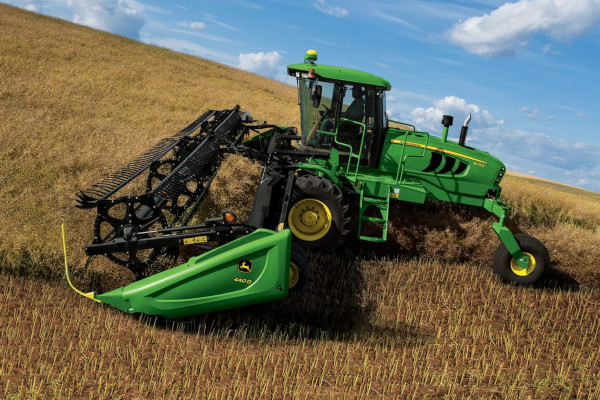

John Deere 440D

Double tap to zoom



Features

  • Cutterbar and frame profile gives uninterrupted crop flow
  • Strong, positive-feeding reel handles all crop conditions
  • Excellent visibility to cutterbar and belt
  • Gauge wheels provide ground following for uniform cut

Specifications

Key Specs

Cutterbar - Type Dual knife
Cut width (length) 12.2 m (40 ft)
Reel type Pick up cam 4 position adjustable release
Fingers Heavy-duty plastic
Belt width Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm
(41.6 in.)
Platform length 12.6 m (41.3 ft)
Overall operating depth With crop dividers: 2.6 m (8.7 ft)
Transport width, field position 12.6 m (41.3 ft)
Transport width on wheel, less dividers 2.5 MPa (8.1 ft)
Transport length, hitch extended 15.3 m (50.1 ft)

Cutterbar

Type Dual knife
Cut width (length) 12.2 m (40 ft)
Knife drive Hydraulic motor to belt to enclosed heavy-duty wobble box
Knife speed 550-700 cycles/min (1,100-1,400 spm)
Cutterbar tilt Standard hydraulic
Optional mechanical (2.5-12.0 degree tilt)

Reel

Reel type Pick up cam 4 position adjustable release
Number of bats 5 bats split span
Fingers Heavy-duty plastic
Diameter 1,650 mm (65 in.)
Height control Hydraulic
Speed control Hydraulic with header index
Reel lift Hydraulic
Reel fore and aft Hydraulic
Operating speeds 0-85 rpm

Draper and decks

Belt width Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm (41.6 in.)
Operating speed 0-225 m/min (0-742 fpm)
Speed control Hydraulic from cab

Header height sensing

Header height sensing on the ground Float springs on traction unit
Header height sensing off the ground Return to cut height standard
Gauge wheels optional

Auxiliary top auger

Type Optional hydraulic drive

Dimensions

Platform length 12.6 m (41.3 ft)
Overall operating depth With crop dividers: 2.6 m (8.7 ft)
Transport width, field position 12.6 m (41.3 ft)
Transport width on wheel, less dividers 2.5 m (8.1 ft)
Transport length, hitch extended 15.3 m (50.1 ft)

Weight

Approximate weight (base platform with reel) 2,451-2,633 kg (5,400-5,800 lb)

Center opening / crop delivery

Center opening width between belts 1,720-1,950 mm (67.1-76.7 in.)
Deck shift / double windrow capability (manual / hydraulic / not available) Manual standard
Hydraulic optional

Gauge wheels and transportation

Gauge wheels Optional
Integrated slow speed transport system Optional includes dual gauge wheels
