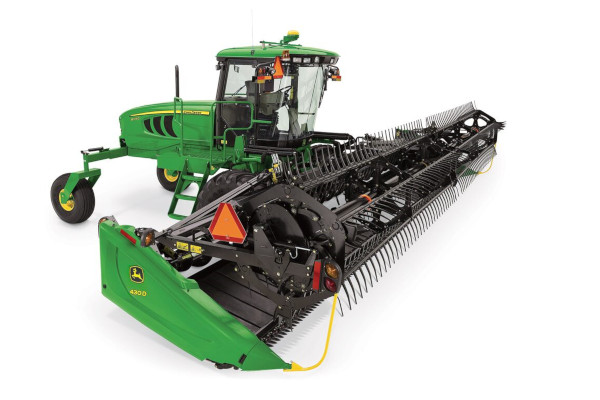

John Deere 430D

Double tap to zoom



Features

  • Cutterbar and frame profile gives uninterrupted crop flow
  • Strong, positive-feeding reel handles all crop conditions
  • Excellent visibility to cutterbar and belt
  • Gauge wheels provide ground following for uniform cut
  • Hydraulic deck shift gives larger windrows for more efficient harvesting
  • John Deere parts and service support provide uptime for a timely harvest
  • Transport easily with integrated transport system
  • Optional reverser clears plugs effortlessly for higher productivity during tough harvest conditions

Specifications

Key Specs

Cutterbar - Type Dual knife standard
Single knife optional
Cut width (length) 9.1 m
30 ft
Reel type Pick up cam 4 position adjustable release
Fingers Heavy-duty plastic
Belt width Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm
41.6 in.
Platform length 9.5 m
31.3 ft
Overall operating depth With crop dividers 2.6 m
8.7 ft
Transport width, field position 9.5 m
31.3 ft
Transport width on wheel, less dividers 2.5 m
8.1 ft
Transport length, hitch extended 12.8 m
42.1 ft

Cutterbar

Type Dual knife standard
Single knife optional
Cut width (length) 9.1 m
30 ft
Knife drive Hydraulic motor to belt to enclosed heavy-duty wobble box
Knife speed Dual: 600-800 cycles/min
1,200-1,600 spm
Single: 600-700 cycles/min
1,200-1,400 spm
Cutterbar tilt Standard hydraulic
Optional mechanical (2.5-12.0 degree lift)

Reel

Reel type Pick up cam 4 position adjustable release
Number of bats 6 bats split span standard
9 bats optional
5 bats single span optional, capped ends
Fingers Heavy-duty plastic
Diameter 1,650 mm
65 in.
Height control Hydraulic
Speed control Hydraulic with header index
Reel lift Hydraulic
Reel fore and aft Hydraulic
Operating speeds 0-85 rpm

Draper and decks

Belt width Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm
41.6 in.
Operating speed 0-225 m/min
0-742 fpm
Speed control Hydraulic from cab

Header height sensing

Header height sensing on the ground Float springs on traction unit
Header height sensing off the ground Return to cut height standard
Gauge wheels optional

Auxiliary top auger

Type Optional hydraulic drive

Dimensions

Platform length 9.5 m
31.3 ft
Overall operating depth With crop dividers 2.6 m
8.7 ft
Transport width, field position 9.5 m
31.3 ft
Transport width on wheel, less dividers 2.5 m
8.1 ft
Transport length, hitch extended 12.8 m
42.1 ft

Weight

Approximate weight (base platform with reel) 1,907-2,315 kg
4,200-5,100 lb

Center opening / crop delivery

Center opening width between belts 1,720-1,950 mm
67.1-76.7 in.
Deck shift / double windrow capability (manual / hydraulic / not available) Manual standard
Hydraulic optional

Gauge wheels and transportation

Gauge wheels Optional dual gauge wheels
Integrated slow speed transport system Optional includes dual gauge wheels
