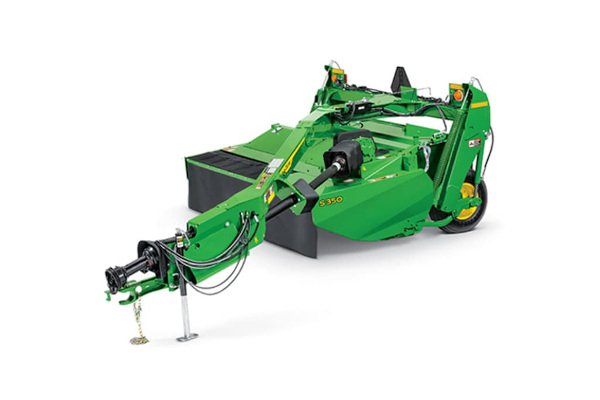

John Deere S350

Double tap to zoom



Features

  • Compact size equals a perfect fit with smaller tractors and acreages
  • Protect your crop with conditioner options to fit your needs
  • Reduced maintenance and proven cutterbar reliability with 5-year coverage
  • Save time with quick-change knives
  • Quickly prepare the mower-conditioner for transport
  • Minimize dry down time with proper windrow formation

Specifications

Key Specs

PTO speed 1000 rpm
1000 rpm 1-3/8 in. PTO 90-150 hp
68-112 kW
Standard hitch Clevis
Optional hitch Equal angle, Rockshaft swivel or Drawbar swivel
Hydraulic pressure required 13,790 kPa
2,000 psi
Cutterbar - cutting width 3.5 m
11.5 ft
Number of disks/knifes 7
14
Transport width 3.5 m
11.5 ft

Tractor equipment

Tractor connection 21 spline
Standard hitch Clevis
Optional hitch Equal angle, Rockshaft swivel or Drawbar swivel
Hydraulic pressure required 13,790 kPa
2,000 psi

Cutterbar

Type John Deere
Cutting width 3.5 m
11.5 ft
Cutting height 2.8-9.8 cm
1.1-3.8 in.
Number of disks 7
Number of knives 14
Disk speed 2,650 rpm
Knife tip speed 307 km/h
191 mph
Disk drive Gear
Lubrication Hy-Gard oil
Oil reservoir capacity 8 L
8.5 U.S. qt
Cutterbar oil check Combination check, drain plug
Angle adjustment Manual or hydraulic
Angle range 2-8 degree (angle)
Cutterbar protection ShearHub
Adjustable gauge shoes Yes

Impeller conditioner

Width 236 cm
92.7 in.
Diameter 25.4 cm
10 in.
Tines type V-tines
Number of tines 57
Number of speeds Two
Drive 3-V powerband belt and sheaves

Rolls conditioner

Width 236 cm
92.7 in.
Diameter 25.4 cm
10 in.
Type of material Urethane or Steel
Design Urethane: Recessed cleat, Steel: Intermeshing flutes V-10
Speed 664 rpm

Dimensions

Transport width
3.5 m
11.5 ft
Transport length
6.2 m
20.6 ft
Weight, impeller conditioner 2,233 kg
4,923 lb
With Urethane roll conditioner: 2,388 kg
5,264 lb
With Steel roll conditioner: 2,450 kg
5,400 lb
With Impeller roll conditioner: 2,233 kg
Standard tires 11L-15 standard, 31x13.5L 15 optional
31x13.5L 15 optional

Additional information

Date collected August 24, 2020
