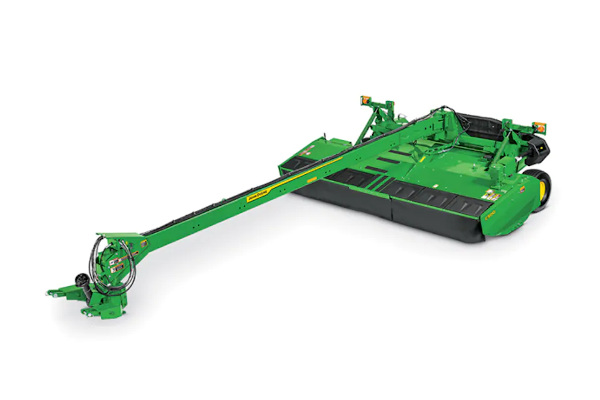

John Deere C500

Double tap to zoom



Features

  • Maximize productivity with the C500 Center-Pivot Mower-Conditioner
  • Protect your crop with conditioner options to fit your needs
  • Reduced maintenance and proven cutterbar reliability with 5-year coverage
  • Save time with quick-change knives
  • Quickly prepare the mower-conditioner for transport
  • Minimize dry down time with proper windrow formation

Specifications

Key Specs

PTO speed 1000 rpm
1000 rpm 1-3/8 in. PTO 120-210 hp
89-157 kW
Standard hitch Rockshaft swivel
Optional hitch Drawbar swivel
Hydraulic pressure required 17,237 kPa
2,500 psi
Cutterbar - cutting width 4.9 m
16 ft
Number of disks/knifes 10
20
Transport width 5.03 m
16.5 ft

Tractor equipment

Tractor connection 21 spline
Standard hitch Rockshaft swivel
Optional hitch Drawbar swivel
Hydraulic pressure required 17,237 kPa
2,500 psi
Hydraulic connections

Cutterbar

Type John Deere
Cutting width 4.9 m
16 ft
Cutting height 1.6-11.7 cm
0.63-6.7 in.
Number of disks 10
Number of knives 20
Knife tip speed 307 km/h
191 mph
Disk drive Gear
Lubrication Hy-Gard oil
Oil reservoir capacity 11.4 L
12 U.S. qt
Cutterbar oil check Combination sight glass, drain plug
Angle adjustment Manual or hydraulic
Angle range 2-8 degree (angle)
Cutterbar protection ShearHub
Adjustable gauge shoes Yes

Rolls conditioner

Width 269 cm
105.5 in.
Diameter 25.3 cm
9.96 in.
Type of material Urethane or Steel
Design Urethane: Recessed cleat, Steel Intermeshing flutes (V-10 and Tri-Lobe)
Speed 1000 rpm
Drive Telescoping shaft

Dimensions

Transport width
5.03 m
16.5 ft
Transport length
9.9 m
32.5 ft
Weight, roll conditioner With Urethane roll conditioner: 4,010 kg
8,840 lb
With V-10 steel roll conditioner: 4,091 kg
9,020 lb
With Tri-Lobe roll conditioner: 4,148 kg
9,145 lb
Standard tires 31x13.5 15 8PR

Additional information

Date collected August 24, 2020
