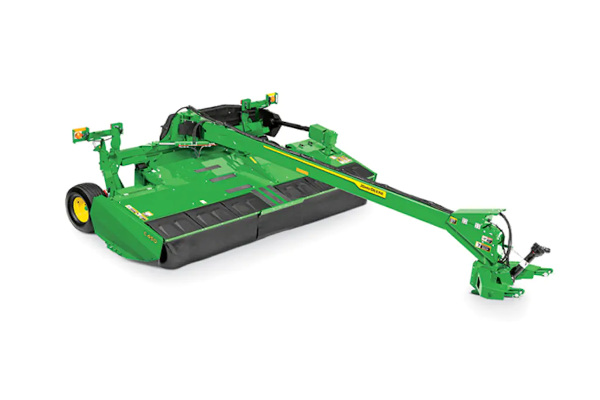

John Deere C450

Double tap to zoom



Features

  • Protect your crop with conditioner options to fit your needs
  • Reduced maintenance and proven cutterbar reliability with 5-year coverage
  • Save time with quick-change knives
  • Quickly prepare the mower-conditioner for transport
  • Minimize dry down time with proper windrow formation

Specifications

Key Specs

PTO speed 1000 rpm
1000 rpm 1-3/8 in. PTO 100-150 hp
75-112 kW
Standard hitch Rockshaft swivel
Optional hitch Drawbar swivel
Hydraulic pressure required 15,513 kPa
2,250 psi
Cutterbar - cutting width 4.5 m
14.5 ft
Number of disks/knifes 9
18
Transport width 4.5 m
14.5 ft

Tractor equipment

Tractor connection 21 spline
Standard hitch Rockshaft swivel
Optional hitch Drawbar swivel
Hydraulic pressure required 15,513 kPa
2,250 psi

Cutterbar

Type John Deere
Cutting width 4.5 m
14.5 ft
Cutting height 1.6-11.8 cm
0.63-6.7 in.
Number of disks 9
Number of knives 18
Disk drive Gear
Lubrication Hy-Gard oil
Oil reservoir capacity 10.4 L
11 U.S. qt
Cutterbar oil check Combination sight glass, drain plug
Angle adjustment Manual or hydraulic
Angle range 2-8 degree (angle)
Cutterbar protection ShearHub
Adjustable gauge shoes Yes

Impeller conditioner

Width 268 cm
106 in.
Diameter 59.5 cm
23.4 in.
Tines type V-tines
Number of tines 72
Number of speeds Two
Drive 3-V powerband belt and sheaves

Rolls conditioner

Width 269 cm
106 in.
Diameter 25.4 cm
10 in.
Type of material Urethane or Steel
Design Urethane: Recessed cleat, Steel Intermeshing flutes (V-10 and Tri-Lobe)
Speed 800 rpm
Drive Telescoping shaft

Dimensions

Transport width
4.5 m
14.5 ft
Transport length
8.8 m
28.9 ft
Weight, roll conditioner With Urethane roll conditioner: 3,161 kg
6,969 lb
With V-10 steel roll conditioner: 3,270 kg
7,209 lb
With tri-lobe steel roll conditioner: 3,325 kg
7,330 lb
Weight, impeller conditioner 3,078 kg
6,785 lb
Standard tires 31x13.5-15, 8PR

Additional information

Date collected August 24, 2020
