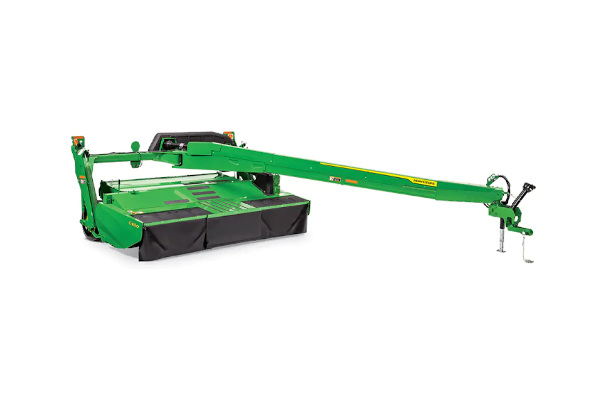

John Deere C400

Double tap to zoom



Features

  • Protect your crop with conditioner options to fit your needs
  • Reduced maintenance and proven cutterbar reliability with 5-year coverage
  • Save time with quick-change knives
  • Quickly prepare the mower-conditioner for transport
  • Minimize dry down time with proper windrow formation

Specifications

Key Specs

PTO speed 1000 rpm
1000 rpm 1-3/8 in. PTO 95-150 hp
71-112 kW
Standard hitch Rockshaft swivel
Optional hitch Drawbar swivel
Hydraulic pressure required 15,513 kPa
2,250 psi
Cutterbar - cutting width 4 m
13 ft
Number of disks/knifes 8
16
Transport width 4 m
13 ft

Tractor equipment

Tractor connection 21 spline
Standard hitch Rockshaft swivel
Optional hitch Drawbar swivel
Hydraulic pressure required 15,513 kPa
2,250 psi

Cutterbar

Type John Deere
Cutting width 4 m
13 ft
Cutting height 2.0-9.5 cm
0.8-3.8 in.
Number of disks 8
Number of knives 16
Disk speed 2,650 rpm
Knife tip speed 307 km/h
191 mph
Disk drive Gear
Lubrication Hy-Gard oil
Oil reservoir capacity 9.5 L
10 U.S. qt
Cutterbar oil check Combination check, drain plug
Angle adjustment Manual or hydraulic
Angle range 2-8 degree (angle)
Cutterbar protection ShearHub
Adjustable gauge shoes Yes

Impeller conditioner

Width 268 cm
106 in.
Diameter 59.5 cm
23.4 in.
Tines type V-tines
Number of tines 72
Number of speeds Two
Drive 3-V powerband belt and sheaves

Rolls conditioner

Width 279 cm
110 in.
Diameter 25.4 cm
10 in.
Type of material Urethane or Steel
Design Urethane: Recessed cleat, Steel: Intermeshing flutes V-10
Speed 800 rpm
Drive Telescoping shaft

Dimensions

Transport width
4 m
13 ft
Transport length
8.2 m
26.9 ft
Weight, impeller conditioner 2,934 kg
6,470 lb
With Urethane roll conditioner: 2,996 kg
6,605 lb
With V-10 Steel roll conditioner: 3,086 kg
6,805 lb
Standard tires 11L-15 standard
31x13.5L 15, 8PR

Additional information

Date collected August 24, 2020
