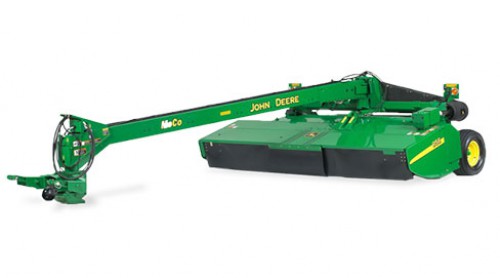

John Deere 956

John Deere 956 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

900 Series Mower Conditioners



  • Modular-design cutterbar
  • Steel roll conditioners
  • Adjustable roll pressure
  • Hydraulic tongue positioning
Manufacturer John Deere
Model 956 (Center-Pivot)
Power requirements
PTO speed  1,000 rpm
HP 540 rpm PTO  ---
HP 1000 rpm 1-3/8 in. PTO  75-112 kW
   100-150 hp
HP 1000 rpm 1-3/4 in. PTO  86-134 kW
   115-180 hp
Powerline type  Grob Spline
Hydraulic pressure required  17,237 kPa
   2,500 psi
Cutterbar
Type  John Deere
Cutting width  4.5 m
   14.5 ft
Cutting height  1.6-11.8 cm
   0.63-4.6 in.
Number of disks  9
Number of knives  18
Disk speed  2,650 rpm
Knife tip speed  307 km/h
   191 mph
Disk drive  Gear
Lubrication  Hy-Gard Oil
Oil reservoir capacity  10.4 L
   11 U.S. qt
Cutterbar oil check  Combination sight glass, drain plug
Cutterbar angle  Adjustable
Angle adjustment  Mechanical standard
   Hydraulic optional
Angle range  2-8 degree (angle)
Cutterbar protection  Shearhub
Adjustable gauge shoes  2 standard
Conditioner
Impeller  ---
Width  268 cm
   106 in.
Diameter  59.4 cm
   23.4 in.
Number of V-tines  72
Number of speeds  Two
Drive  Gear
Conditioner hood  Adjustable, single lever
Rolls  ---
Width  269 cm
   106 in.
Diameter  25.4 cm
   10 in.
Type of material  Urethane/steel
Design  Recessed cleat (Urethane)
   Intermeshing flutes (V-10 and Tri-Lobe)
Speed  800 rpm
Drive  Gear
Windrow width  ---
Tractor hookup
Standard hitch  ---
Ball joint equal angle hitch  ---
Rockshaft swivel hitch  Standard
Drawbar swivel hitch  Optional
Dimensions
Overall width  ---
Transport  4.5 m
   14.7 ft
With optional trailer  2.9 m
   9.7 ft
Overall length  ---
Conventional transport  8.2 m
   26.9 ft
With optional trailer  9.4 m
   30.8 ft
Weight  ---
With urethane roll conditioner  3,161 kg
   6,969 lb
With V-10 steel roll conditioner  3,270 kg
   7,209 lb
With tri-lobe steel roll conditioner  3,325 kg
   7,330 lb
With impeller conditioner  3,055 kg
   6,785 lb
Standard tires  31x13.5-15, 8PR
General
Are wrenches required for adjusting?  ---
Float  no
Skid shoes  ---
Roll pressure  ---
Roll spacing  Yes
Header tilt  ---
Windrow width  ---
Swathboard  ---
Impeller conditioning hood  ---
