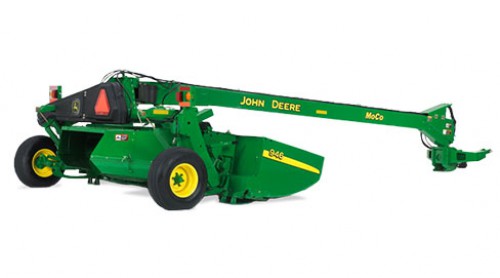

John Deere 946

John Deere 946 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

900 Series Mower Conditioners


  • Modular-design cutterbar
  • Steel roll conditioners
  • Adjustable roll pressure
  • Hydraulic tongue positioning
Manufacturer John Deere
Model 946 (Center-Pivot)
Power requirements
PTO speed  1,000 rpm
HP 540 rpm PTO  ---
HP 1000 rpm 1-3/8 in. PTO  75-112 kW
   100-150 hp
HP 1000 rpm 1-3/4 in. PTO  86-134 kW
   115-180 hp
Powerline type  Grob Spline
Hydraulic pressure required  17,237 kPa
   2,500 psi
Type  John Deere
Cutting width  4 m
   13 ft
Cutting height  1.6-11.8 cm
   0.63-4.6 in.
Number of disks  8
Number of knives  16
Disk speed  2,650 rpm
Knife tip speed  307 km/h
   191 mph
Disk drive  Gear
Lubrication  Hy-Gard Oil
Oil reservoir capacity  8.5 L
   9 U.S. qt
Cutterbar oil check  Combination sight glass, drain plug
Cutterbar angle  Adjustable
Angle adjustment  Mechanical standard
   Hydraulic optional
Angle range  2-8 degree (angle)
Cutterbar protection  Shearhub
Adjustable gauge shoes  2 standard
Impeller  ---
Width  269 cm
   106 in.
Diameter  59.4 cm
   23.4 in.
Number of V-tines  72
Number of speeds  Two
Drive  Gear
Conditioner hood  Adjustable, single lever
Rolls  ---
Width  269 cm
   106 in.
Diameter  25.4 cm
   10 in.
Type of material  Urethane/steel
Design  Recessed cleat (Urethane)
   Intermeshing flutes (V-10 and Tri-Lobe)
Speed  800 rpm
Drive  Gear
Windrow width  ---
Tractor hookup
Standard hitch  ---
Ball joint equal angle hitch  ---
Rockshaft swivel hitch  Standard
Drawbar swivel hitch  Optional
Overall width  ---
Transport  4 m
   13.1 ft
With optional trailer  3 m
   9.7 ft
Overall length  ---
Conventional transport  8.2 m
   26.9 ft
With optional trailer  9.4 m
   30.8 ft
Weight  ---
With urethane roll conditioner  3,054 kg
   6,734 lb
With V-10 steel roll conditioner  3,118 kg
   6,874 lb
With tri-lobe steel roll conditioner  3,218 kg
   7,095 lb
With impeller conditioner  2,955 kg
   6,560 lb
Standard tires  12.5L-15, 8PR
Are wrenches required for adjusting?  ---
Float  ---
Skid shoes  ---
Roll pressure  ---
Roll spacing  Yes
Header tilt  ---
Windrow width  ---
Swathboard  ---
Impeller conditioning hood  ---
