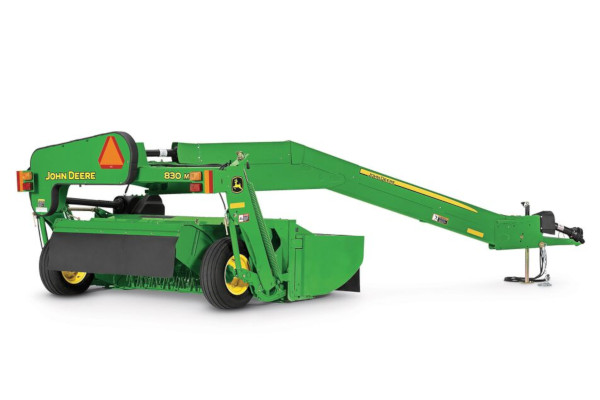

John Deere 830

Double tap to zoom



Features

• Optional V10 rolls and Wide Swath Kit
• Modular-design cutterbar
• Adjustable roll pressure
• Hydraulic tongue positioning
• Equal-angle hitch and tongue
• Rockshaft swivel hitch and tongue
• Cutterbar protection
• Modular-design cutterbar



Specifications

Key Specs

PTO speed 540 or 1,000 rpm
1000 rpm 1-3/8 in. PTO 52-112 kW
70-150 hp
Powerline type Double-telescoping Grob spline (swivel is tube)
Standard hitch Ball joint equal angle hitch
Optional hitch Rockshaft swivel hitch
Hydraulic pressure required 13,790 kPa
2,000 psi
Cutterbar - cutting width 3 m
9.8 ft
Number of disks/knifes 6
12
Transport width 3 m
9.8 ft

Power requirements

PTO speed 540 or 1,000 rpm
1000 rpm 1-3/8 in. PTO 52-112 kW
70-150 hp
Powerline type Double-telescoping Grob spline (swivel is tube)

Tractor equipment

Standard hitch Ball joint equal angle hitch
Optional hitch Rockshaft swivel hitch
Hydraulic pressure required 13,790 kPa
2,000 psi

Cutterbar

Type John Deere
Cutting width 3 m
9.8 ft
Cutting height 2-9.5 cm
0.8-3.7 in.
Number of disks 6
Number of knives 12
Disk speed 2,650 rpm
Knife tip speed 307 km/h
191 mph
Disk drive Gear
Lubrication Hy-Gard oil
Oil reservoir capacity 7 L
7.4 U.S. qt
Cutterbar oil check Combination check, drain plug
Cutterbar angle Adjustable
Angle adjustment Mechanical standard
Cutterbar protection Shearhub
Adjustable gauge shoes Yes

Impeller conditioner

Width 185 cm
73 in.
Diameter 60 cm
23.5 in.
Tines type V-tines
Number of tines 45
Number of speeds Two
Drive 3-V powerband belt and sheaves
Conditioner hood Adjustable, single hand crank

Rolls conditioner

Width 185 cm
73 in.
Diameter 25.4 cm
10 in.
Type of material Urethane
Design Recessed cleat
Speed 664 rpm
Drive Telescoping shaft

Dimensions

Transport width 3 m
9.8 ft
Transport length 6.3 m
20.6 ft
Weight, roll conditioner With urethane roll conditioner: Equal angle: 2,519 kg
5,553 lb
Weight, impeller conditioner Equal angle: 2,376 kg
5,238 lb
Standard tires Standard: 11L-15
Optional: 31x13.5L 15

General

Are wrenches required for adjusting?
Header tilt
Yes
