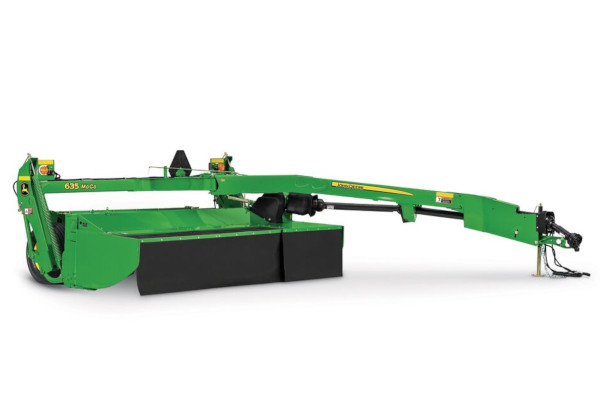

John Deere 635

Double tap to zoom



Features

  • Urethane roll conditioner available
  • Cutting platform is gear-driven
  • Adjustable gauge shoes
  • Flotation tires
  • Clevis hitch
  • Equal-angle hitch
  • Swivel hitch
  • Rotary disk cutterbar
  • Modular-design cutterbar

Specifications

Key Specs

PTO speed 1,000 rpm
1000 rpm 1-3/8 in. PTO 67-112 kW
90-150 hp
Powerline type Double-telescoping Grob spline
Standard hitch Clevis
Optional hitch Ball joint equal angle hitch
Hydraulic pressure required 13,790 kPa
2,000 psi
Cutterbar - cutting width 3.5 m
11.5 ft
Number of disks/knifes 7
14
Transport width 3.5 m
11.5 ft

Power requirements

PTO speed 1,000 rpm
1000 rpm 1-3/8 in. PTO 67-112 kW
90-150 hp
Powerline type Double-telescoping Grob spline

Tractor equipment

Standard hitch Clevis
Optional hitch Ball joint equal angle hitch
Rockshaft swivel hitch
Hydraulic pressure required 13,790 kPa
2,000 psi

Cutterbar

Type John Deere
Cutting width 3.5 m
11.5 ft
Cutting height 28-98 cm
1.1-3.72 in.
Number of disks 7
Number of knives 14
Disk speed 2,650 rpm
Knife tip speed 307 km/h
191 mph
Disk drive Gear
Lubrication Hy-Gard oil
Oil reservoir capacity 8 L
8.5 U.S. qt
Cutterbar oil check Drain plug
Cutterbar angle Adjustable
Angle adjustment Mechanical or hydraulic
Cutterbar protection Shear hub
Adjustable gauge shoes Yes

Impeller conditioner

Width 236 cm
92.7 in.
Diameter 25.4 cm
10 in.
Tines type V-tines
Number of tines 57
Number of speeds 2
Drive 3-V powerband belt and sheaves
Conditioner hood Infinite adjust, single hand crank

Rolls conditioner

Width 236 cm
92.7 in.
Diameter 25.4 cm
10 in.
Type of material Urethane
Design Recessed cleat
Speed 664 rpm
Drive Telescoping shaft

Dimensions

Transport width
3.5 m
11.5 ft
Transport length 6.3 m
20.6 ft
Weight, roll conditioner With urethane rool conditioner: 2,388 kg
5,264 lb
Weight, impeller conditioner 2,233 kg
4,923 lb
Standard tires Standard: 11L-15
Optional: 31x13.5L 15
