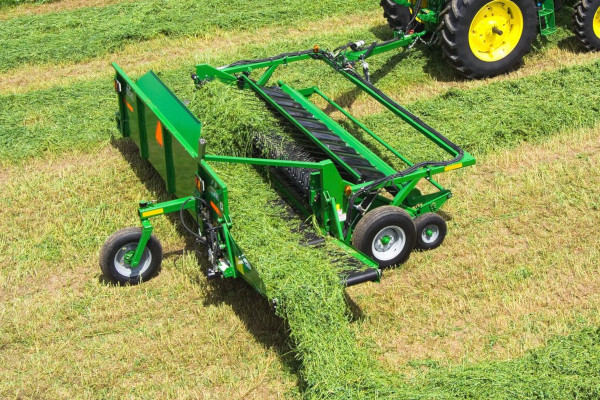

John Deere HM1209

Double tap to zoom



Features

  • Adjustable head height optimizes performance
  • Control box allows a variety of remote functions
  • Plastic teeth prevent metal from entering crops
  • Tail wheel works perfectly in uneven fields

Specifications

Dimensions

Conveyor width 107 cm
42 in.
Pick-up width 2.7 m
9 ft
Base unit width With optional 2-ft extension unfolded
4.96 m
16.3 ft
With optional 4-ft extension unfolded
5.57 m
18.3 ft
With optional 6-ft extension unfolded
6.18 m
20.3 ft
With optional extension folded
4.51 m
14.8 ft
4.35 m
14.3 ft
Base unit height 1.6 m
5.25 ft
Base unit length With pole swung in
6.7 m
22 ft
With pole swung out
6.4 m
21 ft

Weight

Standard base unit 1,404 kg
3,095 lb
Self-contained base unit 1,594 kg
3,515 lb

Tire size

Frame One, 17x38 cm
6.70x15 in.
and two, 24x38 cm
9.5x15 in.
Pickup Two 14.5x20 cm
5.70x8 in.

Tractor compatibility

Standard unit Minimum PTO power
52 kW
70 hp
Minimum hydraulic flow
61 L/min
16 gpm
Minimum hydraulic pressure
13,790 kPa
2,000 psi
Tractor SCVs required
Two
Self-contained unit Minimum PTO power
52 kW
70 hp
Minimum hydraulic flow
19 L/min
5 gpm
Minimum hydraulic pressure
13,790 kPa
2,000 psi
Tractor SCVs required
One

Hitch

Type Pull

Lights and safety

Transport lights Standard
SMV Standard
Safety tow chain Standard
Transport locks Standard

Set-up time

Standard unit labor hours 2.5
Self-contained unit labor hours 3

Warranty

Time period 1 year
