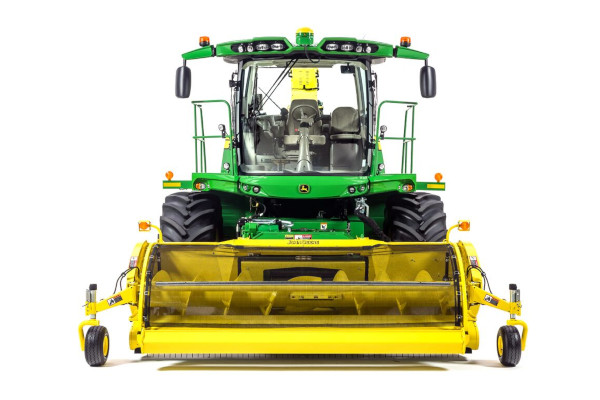

John Deere 8100

Double tap to zoom



  • Advanced comfort and serviceability improve performance and uptime
  • Heavier designed components increase reliability while improving uptime and lowering cost of operation
  • Optimal design and positioning of components increases crop delivery performance
  • Maximize animal performance through forage quality
  • Best-in-class power efficiency delivers unmatched performance in the field
  • ProDrive™ system coupled with large tires boost performance and uptime in soft conditions


Key Specs

Engine Type
PowerTech™ PSS 9.0L
Exhaust emission regulation compliancy - Final Tier 4 / Stage V
9 L
549 cu in.
Europe: 6090HZ029
North America: 6090HZ030
Inline 6
Fuel system Common rail plus four valves
Fuel tank capacity 1,100 L
290.6 U.S. gal.
DEF tank capacity ( for FT4 or EU Stage V emission level) 43 L
11.4 U.S. gal.

Engine power

Maximum power at 1900 rpm 279 kW
380 PS / 375 hp
Rated power at 2100 rpm 251 kW
341 PS / 337 hp
Fuel tank capacity 1100 L
290.6 U.S. gal.
DEF tank capacity ( for FT4 or EU Stage V emission level) 43 L
11.4 U.S. gal.


Manufacturer John Deere
Type PowerTech™ PSS 9.0L
Exhaust emission regulation compliancy - Final Tier 4 / Stage V
Model Europe: 6090HZ029
North America: 6090HZ030
Displacement 9 L
549 cu in.
Cylinders In line six
Speed on road 1400-2100 rpm
Engine/ground speed management Optional
Fuel system Common rail plus four valves

Cooling system

Cooling system capacity 82 L
21.66 U.S. gal.
Cooling fan drive Direct


Ground drive Standard: Hydrostatic, 3-speed - manual shift with helical gears
Engine rpm on road: 1650 rpm
Optional: Prodrive™, autoshift transmission, differential lock (automatic and manual), automatic wet brake system
Engine rpm on road: 1400-2100 rpm
Hydraulics Load sensing
Crop harvesting unit Harvest channel standard
Crop flow components Low-friction crop-flow concept
Main clutch Dry clutch
Number of discs One disc
Main driveband Reinforced with Kevlar inserts
Belt tensioning Active, hydraulic pressure
Main driveband, polybelt belts Five ribs

Header drive

Type Medium Duty Gearbox (i=3.0)
65cc/63cc (pump/motor displacement)

Electrical system/Electrical and hydraulic system

Type/voltage 12 V
Batteries/battery quantity/capacity 1 x 174 amp-hr
Alternator 200 amp
Hydraulic system capacity 50 L
13.2 U.S. gal.

Ground drive

Type Standard: hydrostatic, 3-speed manual shift
Optional: Prodrive™, autoshift transmission
Differential lock Manual or automatic (optional comes with ProDrive)
Maximum transport speed Hydrostatic transmission: 25 / 30 km/h
15.5 / 18.6 mph
ProDrive transmission: 20 / 25 / 30 / 40 km/h
12.4 / 15.5 / 18.6 / 24.9 mph
Rear axle type Hydro-mechanical 4WD
Automatic wet brake system Available with ProDrive transmission
Engine rpm - Management Optional


Tilt and extend steering column Standard
Air conditioning and heater Standard - ClimaTrak
Cool box Optional
Trainee seat Standard
Leather seat optional
Hectare counter Standard
Operator information system Cornerpost display
Armrest display (Touchscreen)
Side rail display (Touchscreen) optional
CAN-BUS electronics Standard
Operator's seat Air-suspension seat optional
Leather seat optional
Side window wiper Rear and side window wiper optional
Parallel-type windscreen wiper
Electric adjust and heated Optional on rear view mirrors
Rear view mirrors Standard

Machine management solutions

Yield monitoring Harvest Monitor™ optional
Documentation Harvest Doc™ optional
Crop analysis HarvestLab™ 3000 optional
Length-of-cut control based on crop parameter Infinitely variable length-of-cut (IVLOC™) standard
AutoLOC™ optional with HarvestLab 3000
Satellite (GPS) assisted steering AutoTrac or Manual RowSense optional

Crop-harvesting units

Header height control Advanced header control (AHC) optional
Grass pick-ups (transport width) 3.0, 4.0, 4.5 m
9.8, 13.1, 14.8 ft
Standard or Premium Line
Driveline Infinitely variable header drive
Optional dual header drive for grass pick-up
Header connection Multi-coupler for hydraulic and electric
Auto PTO coupler optional

Length of cut

Range 40 knives: 7-26 mm (0.275-1.0 in.) LOC / 1 mm (0.04 in.) steps / 1100 rpm
48 knives: 6-22 mm (0.24-0.87 in.) LOC / 1 mm (0.04 in.) steps / 1100 rpm
56 knives: 5-19 mm (0.20-0.75 in.) LOC / 1 mm (0.04 in.) steps / 1100 rpm
56 knives: 4-17 mm (0.16 - 0.67 in.) LOC / 1 mm (0.04 in.) steps / 1200 rpm

Feeding system/Feedrolls

Feed roll frame opening Swing away, 37-45 degree (angle)
Number Four
Metal detector Standard
Stone detector is optional
Width, front 660 mm
26 in.
Standard feed roll drive Hydro feedroll drive IVLOC standard
Infinitely header drive speed standard


Type Dura-Drum™ cutterhead
Cutterhead housing width 686 mm
27 in.
Knife drum width 680 mm
26.8 in.
Knife drum diameter 668 mm
26.3 in.
Speed at rated engine speed 1100 rpm
Knife types available (crop) Straight - grass
Curved - corn
Number of knives 40 - 48 - 56
Shear bar, reversible Grass, corn, or Dura Line Plus
Shear bar adjust Fine shearbar adjust
Quick shearbar adjust

Knife sharpening system

Reverse rotation Yes
Automatic from cab Yes, remote from cab
Reverse drive Standard
Sharpening modes Grinding and finishing

Kernel processor

Type Premium KP (8100-8600)
XStream KP (8300-8600)
Quick-change Quick kernel processor - swing in/swing out
Quick KP removal Optional: Crane with remote-controlled electric hoist

John Deere Premium KP

Housing Standard KP housing
Lubrication Grease
Roll diameter 240 mm
9.45 in.
Speed differential / Roll speed (lower) 32 percent
Optional 40 percent
Maize, roll teeth number (speed differential) 118 (32 / 40 percent)
Wholecrop, roll teeth number (speed differential) 178 (32 / 40 percent)
Sorghum, roll teeth number (speed differential) 238 (32 percent)
Weight 320 kg
145 lb
Available KP rolls Standard sawtooth
Duraline sawtooth
Whole crop

John Deere XStream KP

Housing Heavy duty housing with KP roll quick exchange system
Lubrication Pressurized oil

Blower/Crop accelerator

Rotor diameter/housing width Rotor diameter: 560 mm
22.86 in.
Housing width: 540 mm
21.26 in.
Number of blades 10
Speed (option) 1800 rpm


Rotation, degrees 210 degree (angle)
Hydraulic height position Hydraulic raise and lower standard
Automatic spout positioning optional
Double-cap deflection Standard
Reach from center line (Optional) 6 or 8 row: 4.73 m
15.5 ft
10 row: 5.87 m
19.3 ft
12 row: 6.71 m
22 ft


Rotary radiator screen cleaner Standard
Automatic lubrication system Optional
Engine oil and filter change duration JD+50™ II oil: 500 hours
Other oil: 250 hours


With front tires 710/70R42
With rear tires 620/60R30
Transport length (without header) 6.5 m
21.4 ft
Transport width (without header) 3-3.5 m
9.84-11.5 ft
Transport height (to cab roof) 3.89 m
12.75 ft
Working height (maximum) Height to spout: 6.60 m
21.65 ft

Propelling drive

Standard Hydrostatic, 3-speed - manual shift with helical gears


Type Standard: Hydrostatic, 3-speed - manual shift with helical gears
Hydro-mechanical 4WD rear axle optional
