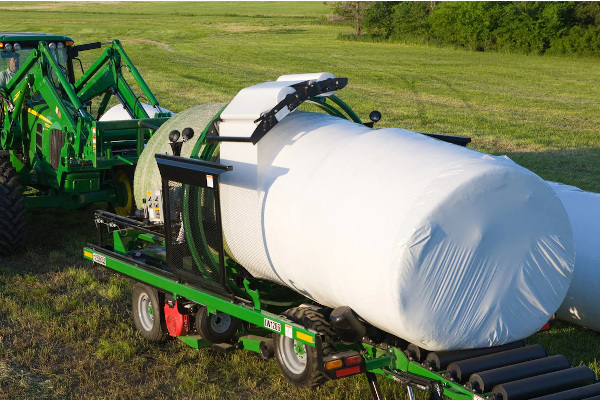

John Deere LW12 Series

Double tap to zoom



Features

  • Adjustable tongue (hitch) folds out of way for easy repositioning of unit
  • Control box and levers are control center of machine
  • Film wrap sensor shuts down wrapping cycle when out of film
  • Traction implement tires great on wet and uneven terrain
  • Options available to increase productivity and uptime
  • Quick-start power jack for LW1266 Bale Wrappers
  • Light kit for bale wrapper
  • Remote steering and shutdown conversion kits for LW11 and LW12 Bale Wrappers
  • Guide rollers conversion kit for LW12 Series Bale Wrappers

Specifications

Dimensions

Overall machine height 2.7 m
9 ft
Overall machine width 2.7 m
9 ft
Overall machine shipping length 5 m
16.4 ft
Overall machine length 7.7 m
25.4 ft

Weight

Weight 2,381.4 kg
5,250 lb
Towing unit minimum weight 1,587.6 kg
3,500 lb

Bale capacity

Round bale diameter 1.7 m
5.5 ft
Square bale size 0.9x0.9x.1.7 m
3x3x5.5 ft

Tires

Quantity Four (two front, two rear)
Size (front) 11L-15 Implement
Size (rear) 11L-15 Implement

Power

Engine type Honda
Engine size 9.7 kW
13 hp
Alternator size, amp 18 amp
Start type Electric

Controls

Type Electric over hydraulic 12 V
Hydraulic system Self-contained
Steering Hydraulic with optional remote control
Power drive Optional: hydraulic single or dual wheel
Folding tail gate Hydraulic
Lift mechanism Optional hydraulic power jack
Compacting brakes Hydraulic adjustable pressure valve

Wrapping

Hoop speed Adjustable flow control valve
Cycle time Adjustable with limit switches
Wrapping capacity 120 bales per hour
Film tensioners Two aluminum rollers: 76.2 cm
30 in.
with stretch: 55 percent
Bale alignment Adjustable bale guides
Bale guide rollers Optional

Final bale push off

Bale pusher Self-contained scissor linkage
Unloading Manual cross tube

Hitch

Type Folding
Length Adjustable

Lighting, marking and safety

Transport safety lights Standard
Markings SMV and reflectors
Safety tow chain Standard
Jack Standard

Set-up time

Labor hours 1

Warranty

Machine 1 year
