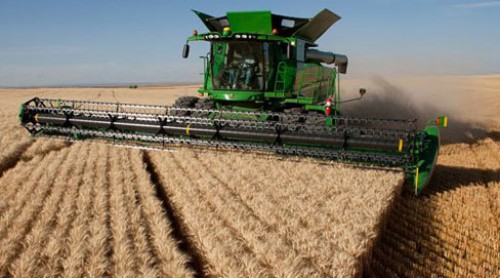

John Deere 625D

John Deere 625D for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

600D Draper Platforms



  • Windrowing capability with 600D Drapers
  • Double-cut knife system produces a cleaner cut
  • Dual-knife drive system is timed
  • Cutterbar is closer to the ground
Model 625D
Cutterbar
Type Straight line knife drive system
Length, ft. (m) 25.5-ft (7.77m)
Knife drive Base single; Optional Dual Knife (Combine use only); Base Dual Knife (SPW only or SPW/Combine combination use)
Knife speed 520 cycles/min (1040 strokes/min)
Cutterbar tilt Base Hydraulic (9 degrees tilt max)
Pickup Reel
Number of slats 6 bat poly base; 8 bat steel optional (for forage conditions)
Fingers Nylon (steel optional typically used in rice or forage conditions)
Diameter, in. (mm) 42-in (1067mm); 54-in (1371mm) for rice or forage conditions
Height control Hydraulic
Speed control Hydraulic
Reel lift, in. (mm) 13.0-in (330mm) Cylinder stroke; 15.4-in (391.5 mm) Total Range
Reel fore and aft, in. (mm) 14.1-in (359mm) Cylinder stroke; 24.4-in (620mm) Total Range
Reel resume Base
Reel reverse Base
Operating speeds, rpm 6-54 rpm
Operating speeds, rpm (54-in. reel) 5-44 rpm
Slat Reel
Number of slats ---
Diameter, in. (mm) ---
Height control ---
Speed control ---
Operating speeds, rpm ---
Draper Belts
Width, in. (mm) 24-oz rubber coated polyester with V-Guide tracking; Side belts 40-in (1016mm); Center belts 55-in (1397mm); Center belt not included with SPW configuration
Clean height, in. (mm) 1-in (25.4mm)
Operating speed, ft./min. (m/min.) Side belts: Variable up to 735-ft/min (223m/min); Center belts: 695-ft/min (212m/min); Center belt not included with SPW configuration
Speed control Hydraulic from cab
Center belt reverse Base; Center belt not included with SPW configuration
Feed Drum
Diameter, in. (mm) 16-in (406mm); Feed drum not included with SPW configuration
Feed drum fingers Steel heavy-duty round 5/8-in (16mm) diameter with breakaway notch and retainer
Number of fingers 18
Auger finger platform Dual Chevron, retracting
Finger reach, in. (mm) 6-in (152mm)
Drum/auger reverse Base
Operating speed, rpm 195 rpm
Center clean out door Base
Header Height Sensing
Type Electro-Hydraulic Base
Header height sensing on the ground Base
Header height sensing off the ground ---
Auxiliary Top Auger
Type Optional; hydraulic drive
Dimensions
Platform length, ft. (m) 27.9-ft (8.49m)
Overall operating depth, ft. (m) 7.9-ft (2.41m)
Transport width, field position, ft. (m) 26.5-ft (8.09m)
Transport width on wheel, less dividers, ft. (m) ---
Transport length, hitch extended, ft. (m) ---
Weight
Approximate weight (slat reel), lb. (kg) ---
Approximate weight (pickup reel), lb. (kg) 6359 lb (2884kg) Combine Only; 5036 lb (2284kg) SPW Only
Approximate weight (with transport) lb (kg) ---
Approximate weight (optional 54-in. reel) lb (kg) 6556 lb (2974kg) Combine Only; 5234 lb (2374kg) SPW Only
