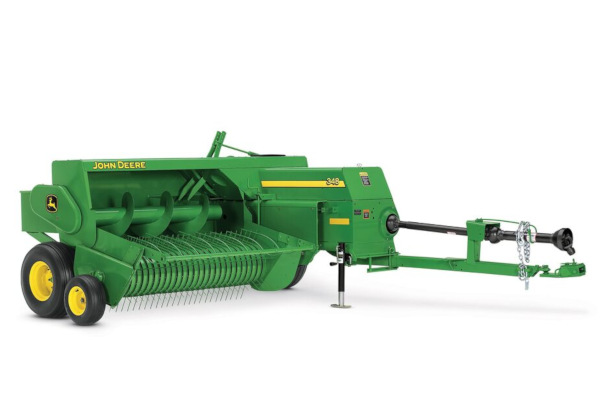

John Deere 348 Square Baler

Double tap to zoom



Features

  • Full-width feeding pickup
  • Adjustable hay compressor
  • Deep-flighted auger feeding
  • Accurate knotters
  • Hydraulic bale tension available
  • Uniform bales
  • Quiet, dependable operation

Specifications

Model John Deere 348 Square Baler
KEY SPECS
Minimum PTO 26 kW (35 PTO hp)
Pickup width 187.9 cm (74 in.)
Bale size Height x width: 36x46 cm (14x18 in.)Length: 30.5 to 127 cm (12 to 50 in.)
Adjustable Hydraulic Bale Density Optional
Plunger - Strokes/minute 93 spm
BALE SIZE
Height x width 36 x 46 cm (14 x 18 in.)
Length 30.5 to 127 cm (12 to 50 in.)
PICKUP
Pickup width 187.9 cm (74 in.)
Tooth bars/teeth 6 bars, 156 teeth
Lift control Crank (hydraulic optional)
Pickup diameter 49.5 cm (19.5 in.)
AUGER
Diameter 41 cm (16 in.)
Length 154.9 cm (61 in.)
PLUNGER
Strokes/minute 93 spm
TYPING MECHANISM
No. of knotters 2
Twine capacity 8
Twine type Plastic or sisal
Central lube system Optional
Wire ball capacity 4
BALER DIMENSIONS
Length w/ long tongue 576.5 cm (227 in.)
Width 274.3 cm (108 in.)
Height 170.2 cm (67 in.)
Weight empty 1411 kg (3110 lb)
TRACTOR REQUIREMENTS
PTO speed 540 rpm
Minimum PTO 26 kW (35 PTO hp)
DRIVE MECHANISM
Driveline Equal angle 3 joint category 4
Optional driveline Equal angle 3 joint category 5
Pickup Belt
Plunger Gear and shaft
Knotters Gear and shaft
Feeder forks Gear and shaft
DRIVETRAIN PROTECTION
Pickup Belt slip
Needles Shear bolt/plunger head stop
Knotters Shear bolt
TIRES
RH Standard tire size 26 x 12.0-12, 4 ply
LH Standard tire size 11L-14, 6 ply
Gauge Wheels 1 optional
Pickup Gauge Wheels Tires Size 16.5 x 6.50-8
LIGHTS
Work Optional
DENSITY CONTROL SYSTEM
Adjustable Bale Density Mechanical crank
Adjustable Hydraulic Bale Density Optional
BALE EJECTOR
Available Optional
BALE CHUTE
Short chute Optional
Long chute Optional
Side bale drop chute Optional
Wagon hitch Optional
ADDITIONAL INFORMATION
Date collected
