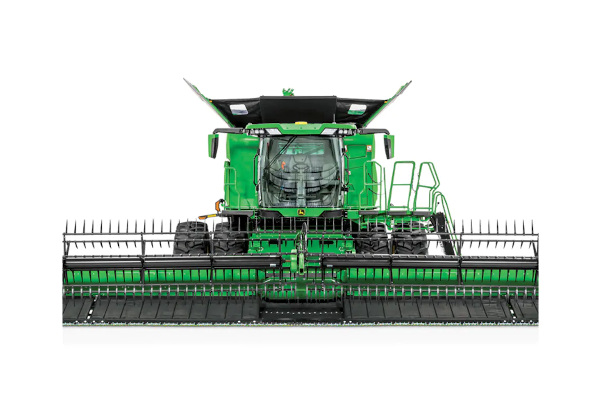

John Deere RD35F

Double tap to zoom



Features

  • Optimize feeding with a two-speed center feed section, increased feed drum torque, and center crop flow divider
  • Optimize harvesting with RDF Series Draper feed drum, floor, and finger timing
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
  • Superior ground following with the HydraFlex™ draper system
  • Evenly feed canola and field peas into the feederhouse with RDF top augers

Specifications

Key Specs

Cutterbar length 10.67 m
35 ft
Knife drive Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm
4 in.
Knife speed X Series Combine: 520 cycles/min
S-Series Combine: 490 cycles/min
Pickup reel operating speeds 6-70 rpm
Draper belts speed control Hydraulic from cab (side belts only)

Platform

Type Rigid frame flexible cutterbar

Cutterbar

Type Straight-line knife drive system
Cutterbar vertical flex: 190 mm
7.5 in.
Length 10.67 m
35 ft
Knife drive Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm
4 in.
Knife speed X Series Combine: 520 cycles/min
S-Series Combine: 490 cycles/min

Pickup reel

Number of slats Six bat poly
Fingers Nylon
Diameter 106.7 cm
42 in.
Height control Hydraulic
Speed control Hydraulic
Reel lift 72 cm
28.3 in.
Reel fore and aft 35.9 cm
14.1 in.
Fore of the cutterbar: 40.6 cm
16 in.
Reel resume Base
Reel reverse Base
Operating speeds 6-70 rpm

Draper belts

Width Cross belt: 101.6 cm
40 in.
Center belts: 177.8 cm
70 in.
Belt depth 101.2 cm
39.8 in.
Cleat height 19.05 mm
0.75 in.
Operating speed Side belts (variable): 1-3.5 m/s
3.3-11.5 fps
Center belts: 211 m/min
692 fpm
Low-speed center belt (fixed): 4.2 m/s
13.8 ft
High-speed center belt (fixed): 5.1 m/s
16.7 fps
Speed control Hydraulic from cab (side belts only)
Center belt reverse Base

Feed drum

Diameter 414 mm
16.3 in.
Feed drum fingers Heavy-duty and round with breakaway notch and retainer
Diameter: 16 mm
0.625 in.
Number of fingers 21
Auger finger platform Triple chevron, retracting
Finger reach 152 mm
6 in.
Drum/auger reverse Base
Operating speed Low speed: 200 rpm
High speed: 240 rpm
Center clean out door Base

Header height sensing

Type Electrohydraulic
Header height sensing on the ground Base
Header height sensing off the ground Optional: four sensors

Auxiliary top auger

Type Optional: hydraulic drive
Fingered augers
Size 45.7 cm
18 in.

Dimensions

Platform length 11.6 m
38.05 ft
Overall operating depth With dividers: 2.74 m
9 ft
Transport width, field position 11.6 m
38.05 ft

Weight

Approximate weight 3485 kg
7683 lb

Additional information

Date collected 15 June 2020
