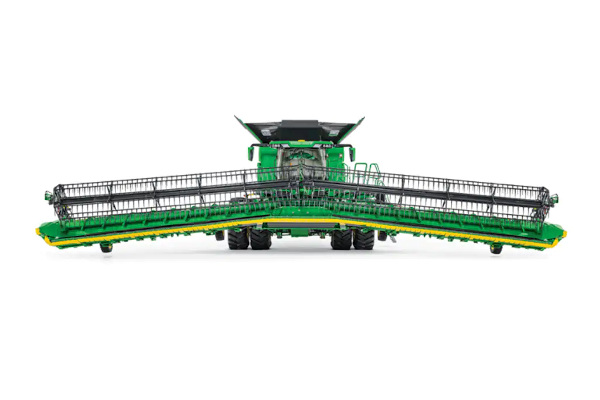

John Deere HD45R

Double tap to zoom



Features

  • Harvest more acres per day with the 15.2-m (50-ft) draper
  • Follow the ground to capture more crop
  • All-day performance in all crops and conditions
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions

Specifications

Key Specs

Cutterbar length 13.72 m
45 ft
Knife drive Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm
4 in.
Knife speed X Series Combine: 520 cycles/min
S-Series Combine: 490 cycles/min
Pickup reel operating speeds 8-70 rpm
Draper belts speed control Hydraulic from cab (side belts only)

Platform

Type Hinged frame rigid cutterbar

Cutterbar

Type Straight-line knife drive system
Length 13.72 m
45 ft
Knife drive Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm
4 in.
Knife speed X Series Combine: 520 cycles/min
S-Series Combine: 490 cycles/min
Cutterbar tilt

Pickup reel

Number of slats Six bat poly
Fingers Nylon
Diameter 106.7 cm
42 in.
Height control Hydraulic
Speed control Hydraulic
Reel lift Off the cutterbar: 100.6 cm
39.6 in.
Reel fore and aft Fore of the cutterbar: 26.4 cm
10.4 in.
Reel resume Base
Reel reverse Base
Operating speeds 8-70 rpm
Operating speeds (54-in. reel)

Draper belts

Width Side belts: 5.89 m
19.3 ft
Center belts: 201 cm
79.1 in.
Belt depth 101.1 cm
39.8 in.
Cleat height 19.05 mm
0.75 in.
Operating speed Side belts (variable): 1-3.5 m/s
3.3-11.5 fps
Center belts: 211 m/min
692 fpm
Low-speed center belt (fixed): 4.2 m/s
13.8 ft
High-speed center belt (fixed): 5.1 m/s
16.7 fps
Speed control Hydraulic from cab (side belts only)
Center belt reverse Base

Feed drum

Diameter 40.6 cm
16 in.
Feed drum fingers Heavy-duty and round with breakaway notch and retainer
Diameter: 16 mm
0.625 in.
Number of fingers 18
Auger finger platform Triple chevron, retracting
Finger reach 152 mm
6 in.
Drum/auger reverse Base
Operating speed Low speed: 200 rpm
High speed: 240 rpm
Center clean out door Base

Header height sensing

Type Electrohydraulic
Header height sensing on the ground Base
Header height sensing off the ground Base

Auxiliary top auger

Type Optional: hydraulic drive
250-350 rpm
Fingered augers Optional
Size Diameter: 43.2 cm
17 in.

Dimensions

Platform length 14.57 m
47.8 ft
Overall operating depth With dividers: 3.23 m
10.6 ft
Transport width, field position 14.57 m
47.8 ft
Transport width on wheel, less dividers
Transport length, hitch extended

Weight

Approximate weight 4897 kg
10,774 lb
With top augers, gauge wheels, side knives, and spare knife: 5236 kg
11,519 lb

Additional information

Date collected 15 June 2020
